Industrial Welding Fixture Table
🔧 Stop manual adjustment and start precise positioning - your welding accuracy begins with this platform.
Product Overview

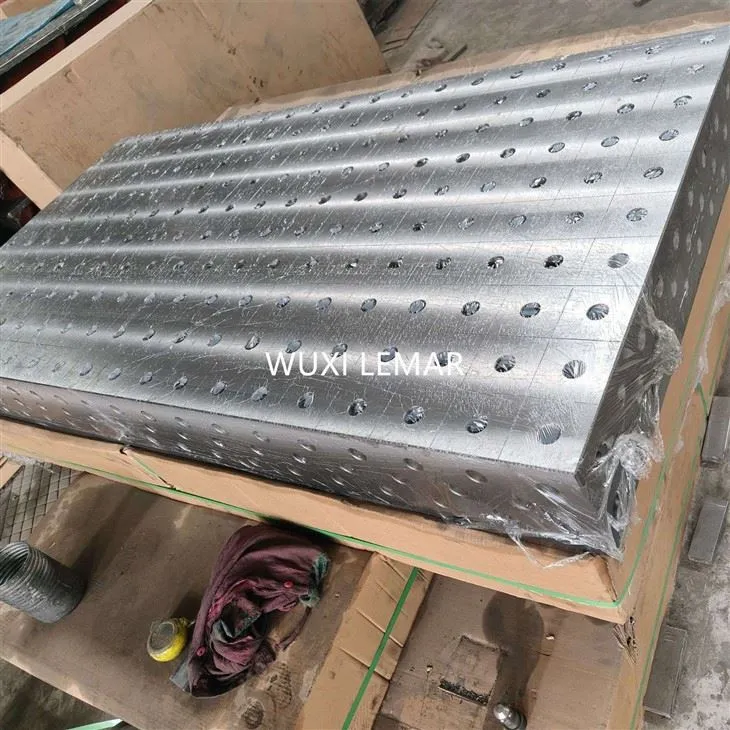

Welding deformation, inaccurate positioning, repeated adjustments... These issues consume your working hours and profits every day. Lemar 1200*2400mm cast iron welding fixture platform is integrally cast from high-strength gray cast iron (HT300) and undergoes dual treatments of natural aging and vibration aging, featuring a stable structure and excellent deformation resistance. It achieves a flatness of 0.1mm per square meter, enabling every workpiece to be processed on a true flat surface starting from the first weld seam.
Table Size
More details feel free to contact our sales engineer:Eva(Email:evasummer@lemarmetal.com)
product key technologies
Material:a. HT300 casting, b. Q355 steel plate welding, c. High hardness steel plate welding, d. Stainless steel plate welding.
Aperture:A=φ28.065--φ28.149mm.
Hole spacing:L1=100±0.05mm.
Engraving:Graduation line spacing W1=100±0.05mm.
Flatness:0.1/1000mm.
Verticality:0.1/200mm.
Roughness:Ra3.2.
Load-bearing:Standard type: 2T, frame type: 5T.
Hardness:Material body hardness.
Material:a. HT300 casting, b. Q355 steel plate welding, c. High hardness steel plate welding, d. Stainless steel plate welding.
Aperture:A=φ16.065--φ16.149mm.
Hole spacing:L1=50±0.05mm.
Engraving:Graduation line spacing W1=50±0.05mm.
Flatness:0.1/1000mm.
Verticality:0.05/200mm.
Roughness:Ra3.2.
Load-bearing:Standard type: 2T, frame type: 5T.
Hardness:Material body hardness.
Product Advantages
Core Advantages

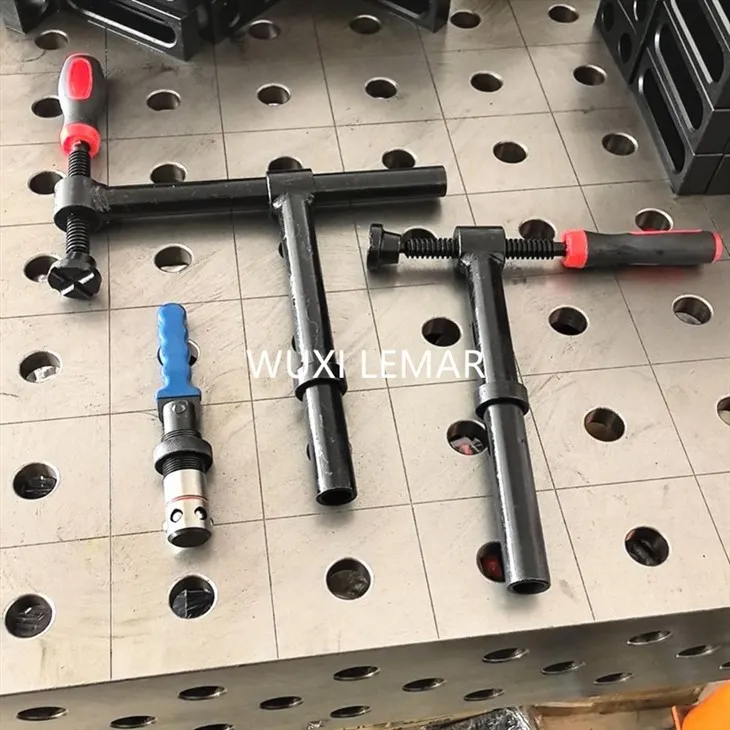

✅ 5-second rapid positioning - Equipped with a 100×100mm standard hole grid, combined with quick lock pins and positioning fixtures, workpieces can be locked instantly after placement, boosting clamping efficiency by 50%.
✅ Zero hidden welding deformation - The cast iron platform features high rigidity and excellent shock absorption, maintaining stable flatness even under welding heat impact. The first-piece qualification rate rises by 30%, eliminating repeated trimming.
✅ 10-year precision guarantee - Made of HT300 material. Surface scraping treatment triples its wear resistance. With regular use, the flatness precision can be maintained for over 10 years, making it a one-time and long-term cost-effective investment.
Who Is This For?
Application Area
• Steel structure and heavy machinery welding: suitable for large workpieces with excellent load-bearing capacity
• Automotive parts welding fixtures: support mass production and rapid model changeover
• Pipeline and frame structures: enable multi-angle welding and flexible fixture layout
• Robotic welding workstations: serve as a reference platform to cooperate with automated systems

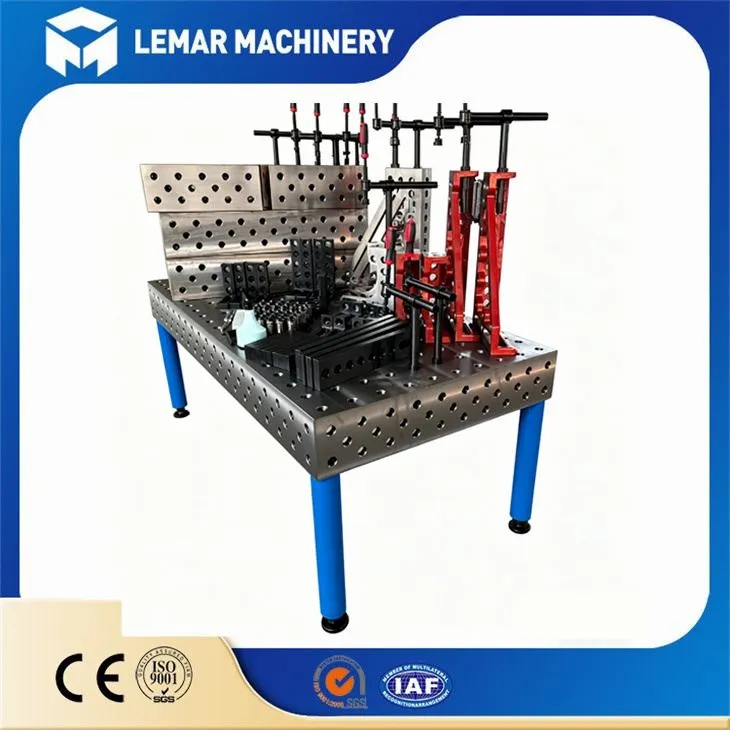

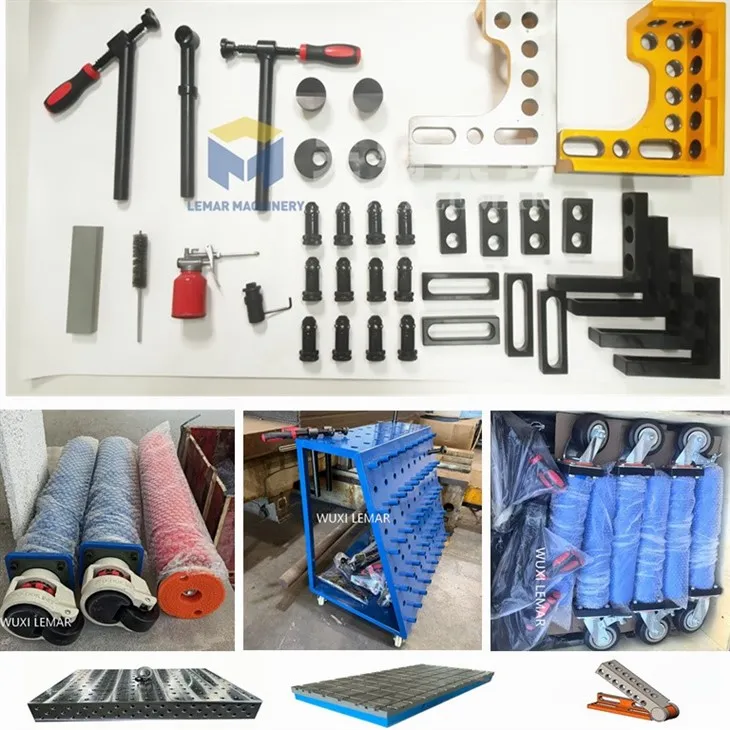

Welding table Accessories
We have full accessories list and set list,contact our sales engineer:Eva summer for documents download.
Related Certification
Products Packaging
Packaging & Shipping
Packaging and Transportation
• Packaging method: Steel frame + wooden case reinforcement
• Transportation method: Sea freight / Land transportation
• Delivery cycle: 15–25 days (including matching accessories)
Feel free to contact our sales engineer:Eva summer directly for more!
FAQ
Q1. What is the flatness of this platform?
A:≤0.1mm/㎡. Each platform is precisely scraped or surface ground before delivery, with an inspection report attached.
Q2. What are the hole diameter and hole spacing? Are they universal?
A:• Hole Diameter: φ28mm (mainstream) or φ16mm (optional)
• Hole Spacing: 100×100mm grid
• Compatible with most standard welding fixtures, quick lock pins and U-shaped pressure plates on the market.
Q3. What is the load-bearing capacity? Will it deform when welding heavy workpieces?
A:Static load ≥3000kg. Made of HT300 cast iron with a 25mm thick working surface, it features high rigidity and excellent shock absorption, and will not deform significantly under normal welding heat influence.
Q4. Is anti-rust treatment required for the surface? Is oil applied before shipment?
A:Anti-rust oil is coated on the platform surface before delivery. It can be used directly upon receipt; regular oiling is recommended if not in long-term use.
Q5. Are support legs or casters included?
A:Support legs are not included with the platform body, but optional accessories are available:
• Height-adjustable steel support legs
• Mobile base with universal lockable casters
• Fixed foot pads
Q6. Can non-standard sizes be customized?
A:Yes. Common customized sizes include:
900×600, 1500×3000, 2000×4000mm and more. Thickness, hole diameter and hole spacing can all be adjusted as required, and the delivery time shall be confirmed separately.
