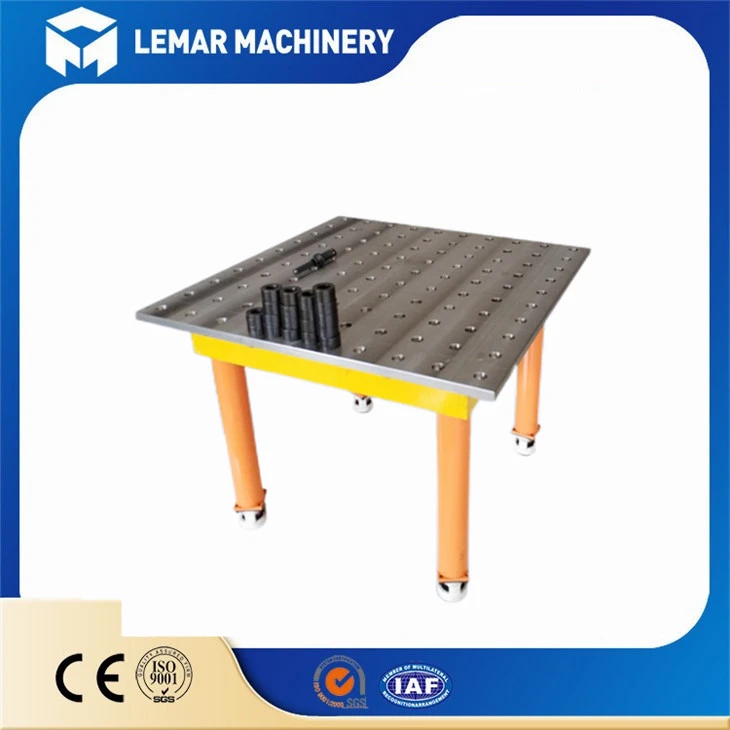

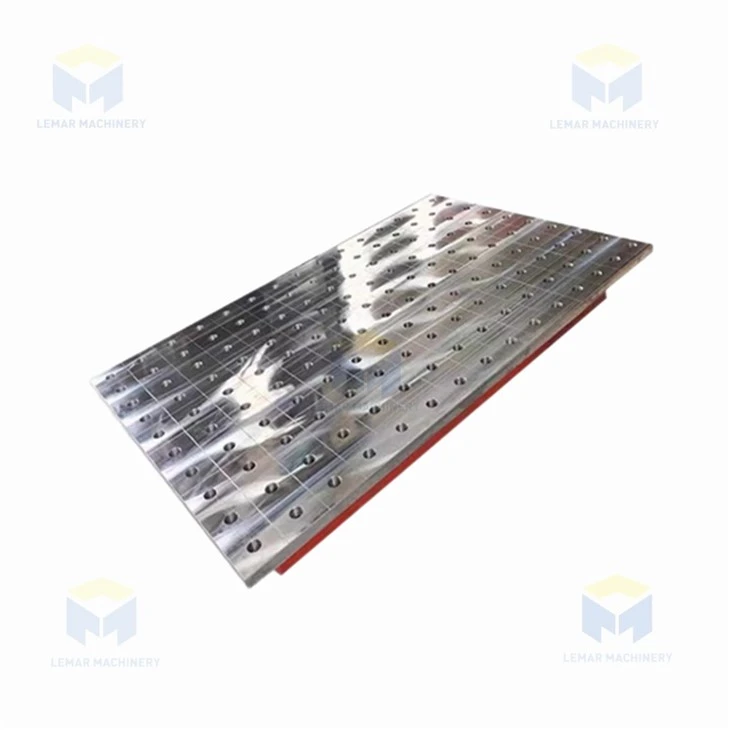

Product Description
2D Modular Welding Platform has shown extensive application potential in many fields such as automotive, mechanical manufacturing, aerospace and so on. Its advantages are not only strong flexibility, high degree of intelligence, but also significantly improve production efficiency, ensure the stability and consistency of welding quality, while reducing human input, improve the working environment. In short, the flexible welding platform with its excellent performance and wide application prospects, is gradually becoming the mainstream choice in the field of modern industrial welding.
services we offer
Product repair service
scheduled maintenance service
installation instruction service
programming instruction
Products choosing Advice
When choosing right 2D Modular Welding Platform model, you can consider following aspects:
Workpiece characteristics:
Select right type of platform according to size, shape and weight of workpiece. For example, sheet metal and small steel structures mostly use D16 series platforms, while large steel structures and heavy machinery industries mostly use D28 series platforms.If size of workpiece changes greatly, it is recommended to use the D22 series platform to adapt to different sizes of the workpiece.
Platform structure :
According to its structure type, 2D Modular Welding Platform is divided into three series: hole system combination fixture, slot system combination fixture and combination die. Slot combination fixture is divided into 16mm, 12mm, 8mm three types, respectively corresponding to large, medium and small combination fixture. According to your specific needs, choose the right type of construction.
Precision requirements :
According to the precision requirements of welding process, select the corresponding precision platform. The accuracy level of the platform is usually 0, 1, 2, 3 four levels, of which 0 and 1 are high precision levels.
Products Parameters
| 28 SERIES | 16 SERIES | ||
| SIZE MM | WEIGHT KG | SIZE MM | WEIGHT KG |
| 1000*1000*200 | 345 | 1000*500*100 | 82 |
| 1200*1200*200 | 455 | 1000*1000*100 | 156 |
| 1500*1000*200 | 480 | 1200*800*100 | 142 |
| 1500*1500*200 | 725 | 1200*1200*100 | 210 |
| 2000*1000*200 | 655 | 1500*1000*100 | 655 |
| 2400*1200*200 | 870 | 1500*1500*100 | 232 |
| 3000*1500*200 | 1365 | 2000*1000*100 | 297 |
| 4000*2000*200 | 2375 | 2400*1200*100 | 453 |
Weight is affected by parts and materials. The data in the table about weight is for reference only!
product Application
Application scenarios and advantages:
2D Modular Welding Platforms are used in a wide range of fields:
Aircraft manufacturing : used for welding large panel parts, to solve the traditional welding table complex operation, low efficiency problems.
Automobile manufacturing : Improve production efficiency and welding quality in vehicle body manufacturing and robot welding.
Rail transit and construction machinery : suitable for rail transit welding and various heavy machinery manufacturing.
Sheet metal processing and metal furniture : Provides stable support and compression functions in sheet metal processing and metal furniture manufacturing.
