Precision Welding Platform for Industrial & Heavy-Duty Fabrication
1000×2000mm Welding Fixture Table with Tools | Q355 Steel | Nitrided Surface
Product Overview
Our 1000×2000mm Welding Fixture Table is a high-precision, heavy-duty workbench designed for professional welders and fabricators. Manufactured from Grade Q355 high-strength structural steel and finished with a nitrided surface treatment, this table is engineered to resist weld spatter, corrosion, and mechanical wear.
The complete set includes a full suite of welding fixture tools (clamps, stops, adapters, and positioning squares), enabling you to secure, align, and weld complex assemblies with 0.1mm repeatable accuracy. It is the backbone of any lean manufacturing or custom fabrication shop.
Table Parameters
Feel free to contact our sales engineer:Eva(Email:evasummer@lemarmetal.com) for more!
| Specification | Detail |
|---|---|
| Model No. | LM1020-Table |

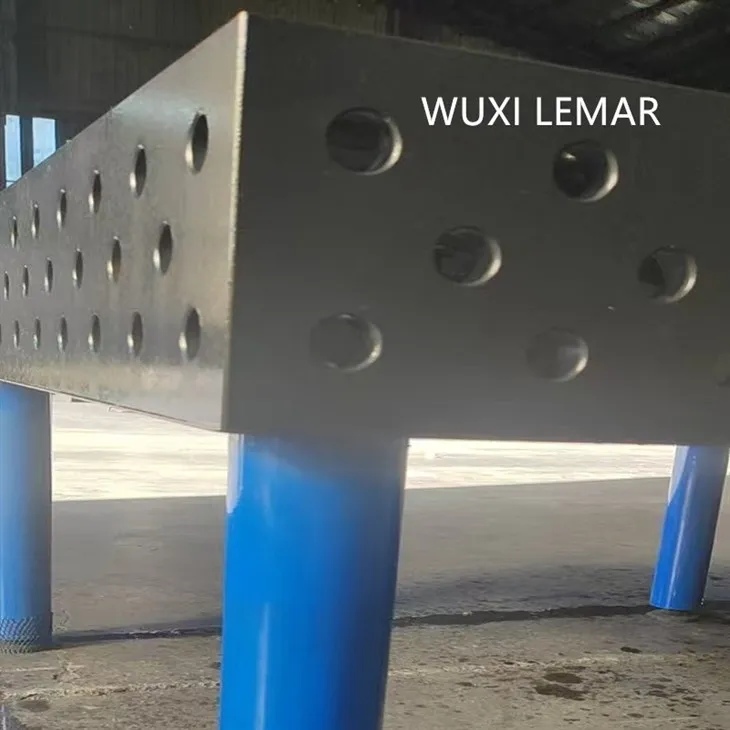

| Table Size | 1000×2000×200 mm |
| Material | Q355B (equivalent to S355JR / A572 Gr.50) |
| Surface | Gas nitriding (hardness 500–600 HV) |
| Flatness | ≤ 0.01mm/m² |
| Hole Grid | 100×100 mm (±0.05mm) |
| Standard Kit | Table + Legs + 40‑pc Tooling Set |
| Lead Time | 15–25 working days |
Key Features & Advantages
🔩 1000×2000mm Working Surface
Spacious enough for large sub-assemblies, yet fits standard workshop layouts. 16mm or 28mm diameter holes (customizable) on a 100×100mm grid.
🛡️ Q355 High-Strength Steel
Higher yield strength (355 MPa) than standard Q235. Resists deformation under heavy clamping force and thermal stress during welding.
Nitrided Surface Treatment
• Ultra-hard: Surface hardness ≥ 500 HV
• Spatter-resistant: Weld spatter pops off easily
• Corrosion-resistant: No rust from flux or coolant
• No oil film needed – ready to weld

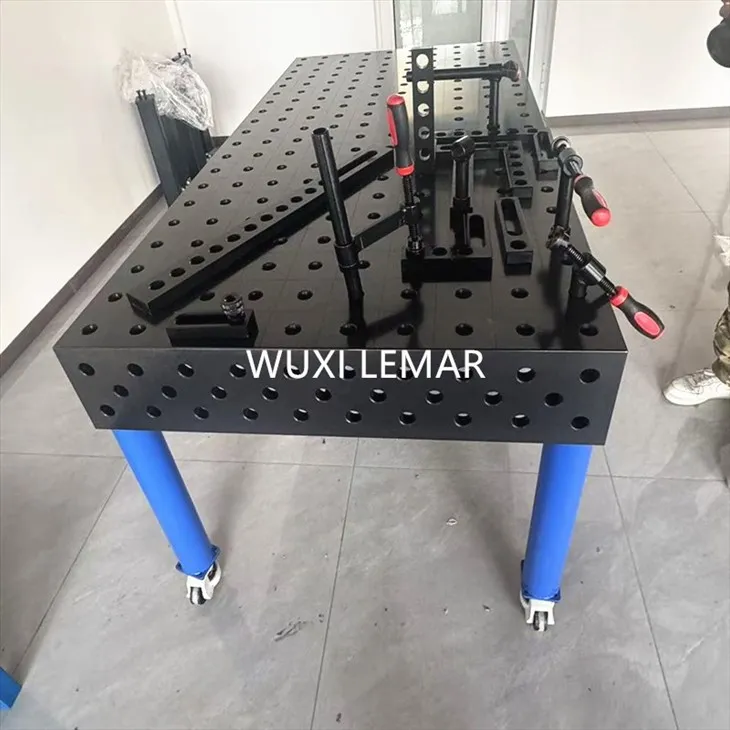

Full Tool Kit Included
Comes with rapid clamps, positioning pins, angle brackets, shims, and stop blocks. No need to buy accessories separately.
Applications / Use Cases
Ideal for:
This welding table is ideal for:
Heavy equipment manufacturing – excavator attachments, chassis frames
Automotive & trailer fabrication – roll cages, truck beds, subframes
Construction steel structures – stair stringers, handrails, guardrails
Energy & piping – pipe flanges, skid mounts, support brackets
General fabrication shops – jigs for repeat production runs
Vocational training & quality control – teaching proper fixturing methods
Perfect for MIG, TIG, stick, and even robotic welding cells.
Welding table Accessories
We have full accessories list and set list,contact us for documents download.
Company Certification
Customer Feedback
our casey
Let us once again express our gratitude to our customers for their support.
Products Packaging
Our Packaging
FAQ
Frequently Asked Questions
Following questions can roughly help you understand our products.
Q1: What is the hole size and grid pattern?
+
-
A:Standard hole diameter is 16mm or 28mm on a 100×100mm grid. Please specify your preference at ordering. Clamps and tooling match the hole size.
Q2: Is the nitrided surface different from just painting or oiling?
+
-
A: Yes. Nitriding is a heat-treatment case-hardening process. It becomes part of the steel, not a coating. It resists spatter adhesion, scratching, and rust far better than paint or oiled steel.
Q3: Does the table come with legs and wheels?
+
-
A: Yes. The complete table includes heavy-duty steel legs with leveling pads. Locking swivel casters are optional (add $xxx). The top plate alone is very heavy – we recommend fixed positioning for precision work.
Q4: Can I weld aluminum on this table?
+
-
A: Yes. The nitrided surface will not contaminate aluminum. However, use a stainless steel wire brush for cleaning, and avoid direct high-amperage AC grounding through thin aluminum parts – use a dedicated ground clamp on the workpiece.
Q5: What tools are included in the kit1#?
+
-

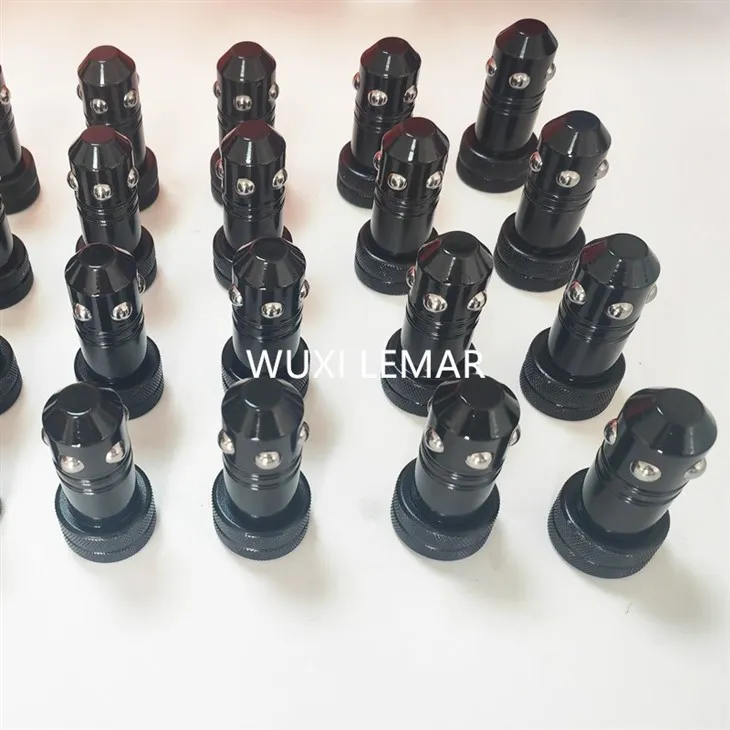

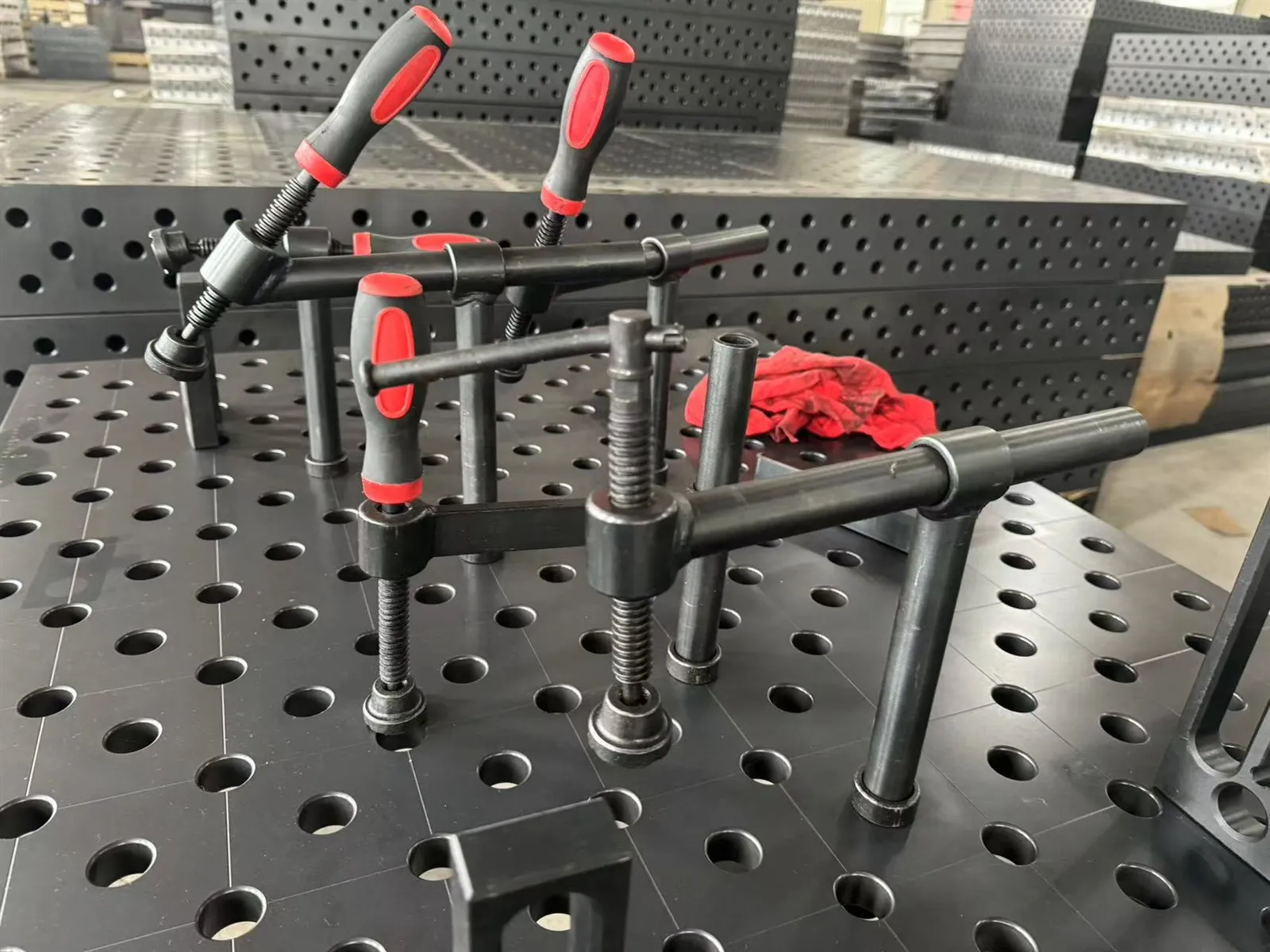

A: The set includes: 4pcs of 300x300 180° screw clamps \4pcs of 300x300 45° screw clamps\12pcs of φ28×50 fast clamping bolts\2pcs of φ58/140° carbon steel V-type clamps\2pcs of 50×φ75×25 eccentric stops. It also features one left and one right 300×275×100 stop and clamping square, plus three types of universal stops (175×50×175, 150×50×25, 100×50×25) with four pieces each. Completing the package are one 200×50×30 oilstone, one φ28 grounder connector, and one maintenance kit with a pump bottle and steel brush.
