1. Pre-start inspection:
Check whether the mechanical parts of the equipment are intact and whether the electrical system is normal.
Ensure that the welding materials (such as welding wire and flux) are sufficient and the grounding wire of the equipment is firmly connected.
2. Parameter setting:
Set the welding current, voltage, welding speed and other parameters according to the welding process requirements.
Set the operation mode of the equipment, such as automatic mode or manual mode.
3. Workpiece clamping:

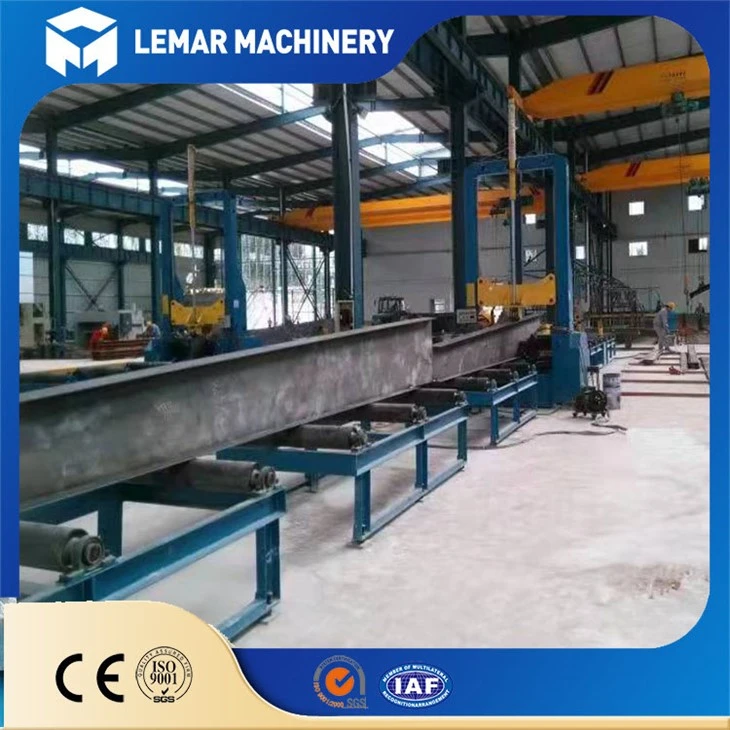

Place the web and wing of the H-beam on the assembly machine to ensure accurate positioning of the workpiece.
Use the clamp to fix the workpiece firmly to avoid displacement of the workpiece during welding.
4. Start the equipment:
Start the assembly machine to complete the assembly of the H-beam.
Start the welding machine, and the equipment automatically completes the welding process.
5. Welding process monitoring:
During the welding process, the operator needs to closely monitor the welding quality to ensure the smooth progress of the welding process.
If welding defects or equipment abnormalities are found, stop the machine for inspection in time.
6. Processing after welding is completed:
After welding, start the straightening machine to straighten the welded H-beam.
Clean the welding area and remove welding spatter and slag.
7. Shutdown:
After completing the welding task, shut down the equipment and cut off the power supply.
