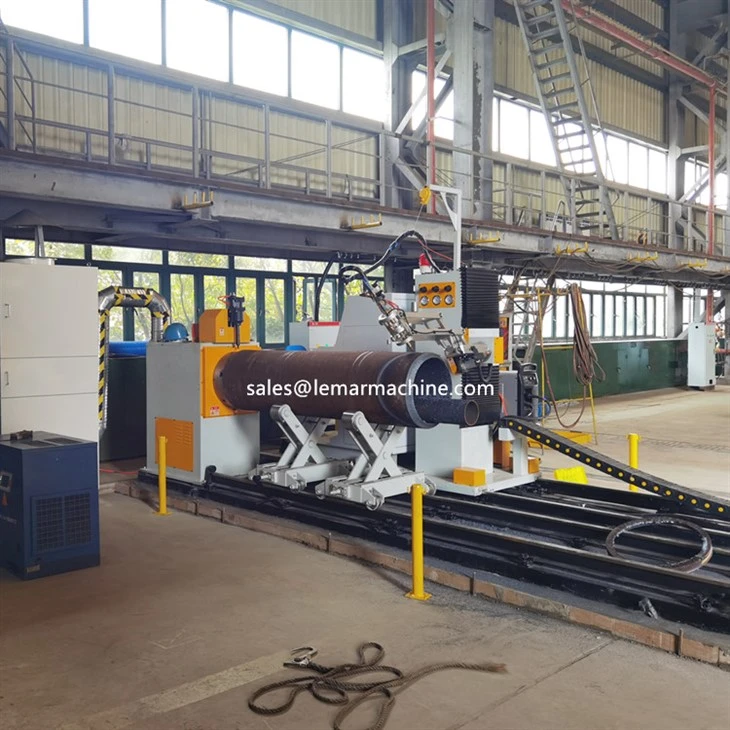

CNC Pipe Intersection Equipment can cut multiple cylindrical intersecting holes of different directions and diameters on the main pipe to meet the eccentric and non-eccentric vertical intersection conditions between the branch pipe axis and the main pipe axis; it can cut the cylindrical intersecting line end at the end of the branch pipe to meet the eccentric and non-eccentric vertical intersection and inclined intersection conditions between the branch pipe axis and the main pipe axis.
CNC Pipe Intersection Equipment has the functions of fixed angle beveling, fixed point beveling and variable angle beveling cutting, and can cut out the intersection line that meets the American AWS standard.
Products Specification
|
Parameter |
PHM-16 |
PHM-24 |
PHM-32 |
|
Pipe diameter |
DN50-400 |
DN50-600 |
DN50-800 |
|
Cutting material |
Flame:Carbon steel;Plasma cutting:Carbon steel/Alloy/Stainless steel |
||
| Cutting length | 12m or customized | ||
| Moving speed | 10-6000mm/min | ||
| Cutting speed | 50mm/min-3000mm/min | ||
| Beveling angle | 0-45° | ||
|
Cutting type |
Straight cutting/V beveling/Intersecting line hole/Intersecting line end/Cross groove |
||
| Control axis | 5 axis,6 axis,7 axis,8 axis are available | ||
