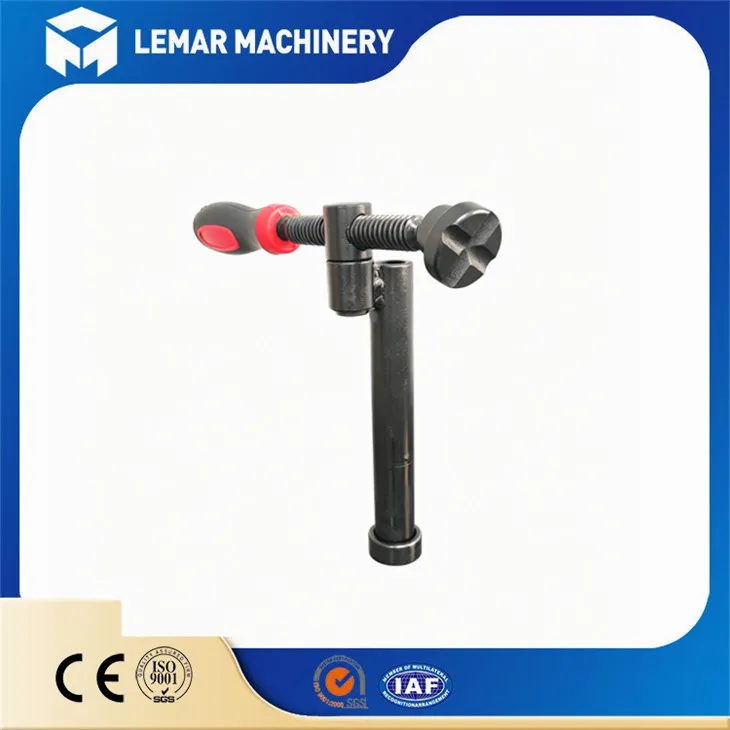

360° Rotating & Tilting Function Welding Table Clamp
– Fits Standard D28 Holes.
Product Overview
The Tilting Function Welding Table Clamp is a professional-grade positioning tool designed for modular welding tables with D28 locating holes. Unlike standard fixed clamps, this model features full 360° continuous rotation . This dual-axis adjustability allows welders to position workpieces at virtually any compound angle without unclamping or repositioning the base. Whether you need a flat weld, a bevel, an inverted angle, or a circular seam, this clamp holds it securely.
Contact us
📱 WhatsApp / WeChat: +8615995269947
💬 Facebook Messenger: EvaLemarweldingtable
📧 Email: evasummer@lemarmetal.com
Products Parameters
| Parameter | Specification |
|---|---|
| Model | D28 360° Rotating & Tilting Clamp |
| Shank Diameter | 28 mm (D28 standard) |
| Shank Material | Hardened steel |
| Rotation Range | 360° continuous (full circle) |
| Locking Type | Separate screw/lever locks for rotation and tilt |
| Clamping Force | Heavy-duty (suitable for MIG/TIG/Stick) |
| Overall Length (approx.) | 130 mm |
| Weight | 2kg approx. |
| Finish | Anti-spatter / corrosion-resistant coating |
Our Products
Products advantages
360° Continuous Rotation – Swivel the clamped workpiece smoothly in a full circle. Lock at any angle for circular welds, multi-sided frames, or repositioning without removing the part.
Independent Locking System – Separate locks for rotation and tilt. Set rotation first, then tilt – or vice versa. Each lock holds firmly under vibration and weld heat.
D28 Precision Shank – Machined to exact 28mm diameter for a snug, wobble-free fit into standard modular table holes.
High-Clamping-Force Handle – Ergonomic, glove-friendly handle provides strong jaw pressure without over-torquing.
All-Steel Construction – Hardened body with anti-spatter coating. Built for daily shop use.
Tool-Free Adjustments – Change rotation, tilt, and clamp opening with your hands – no wrenches needed.
For more details,please feel free to contact our sales engineer:Eva summer
Products Usage
Pipe and tube welding – Rotate pipe while keeping tilt angle constant for root and cap passes.
Circular and radial weldments – Flanges, rings, and round parts needing 360° seam welding.
Complex compound angles – Brackets, supports, and frames requiring both rotation and tilt.
Multi-side fabrication – Weld one side, rotate 90°, weld the next – all without unclamping.
Repositioning heavy parts – Rotate the workpiece instead of walking around the table.
Educational welding booths – Demonstrate tilt and rotation techniques on a single clamp.
01
Step 1: Insert the clamp
Place the D28 shank into any table hole. Loosen the tilt lock, set the desired angle , then tighten the lock firmly.
02
Step 2: Insert Workpiece
Place your material between the clamp jaws.
03
Step 3: Clamp
Tighten the clamping handle to secure the workpiece.
04
Step 4:Weld
Perform your weld with the part held precisely at the required angle.
Company Certification
Customer Feedback
Shipping and Delivery
FAQ
Our 24*7 service hotline:0086 159 9526 9947(Eva summer)
Q1: What welding table is this clamp compatible with?
02.Does the rotation lock hold under welding vibration?
03.Does the clamp slip under heat?
04.How do I clean spatter off the rotation and tilt joints?
05.Is a spare part available (lock handle, etc.)?
