Product Overview

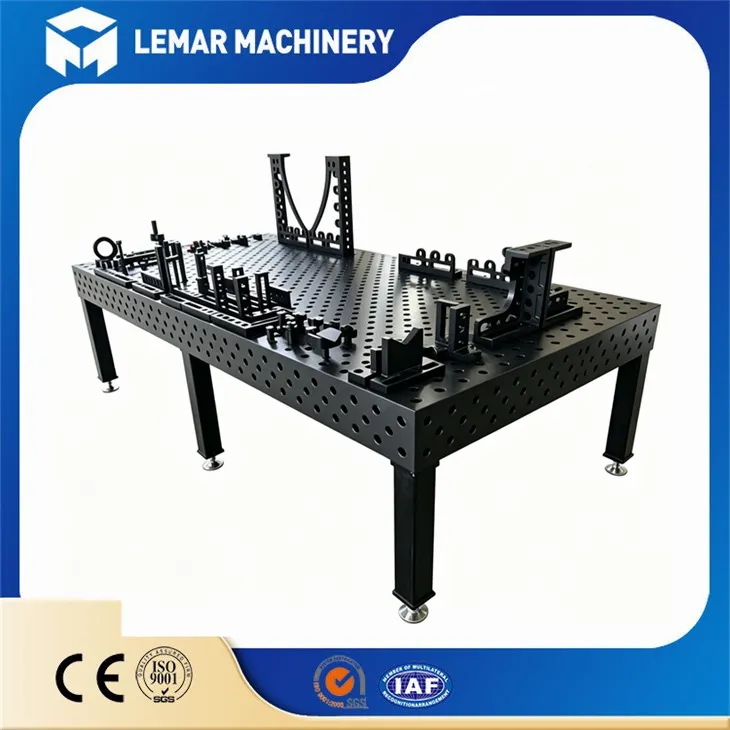

This professional welding table is built around the D28 hole system, manufactured from high-strength steel with a full nitrided surface treatment.
Designed for precision welding, assembly, and fixture work, it provides excellent flatness, durability, and compatibility with a wide range of D28 accessories.
Our nitrided layer offers superior wear resistance, corrosion protection, and non-stick properties against weld spatter. Ideal for workshops, fabrication shops, and industrial training environments.
Contact us
📱 WhatsApp / WeChat: +8615995269947
💬 Facebook Messenger: EvaLemarweldingtable
📧 Email: evasummer@lemarmetal.com
Products Parameters
Our Products
| Parameter | Details |
|---|---|
| Material | High-strength carbon steel (Q355 or equivalent) |
| Surface Treatment | Full nitriding (gas nitriding ) |
| Surface Hardness | ≥ 500 HV (Vickers hardness) |
| Surface Flatness | ±0.1mm per 1000mm (precision grade) |
| Hole System | D28 – 28mm diameter |
| Hole Spacing | 100mm (please confirm when ordering) |
| Hole Positioning Accuracy | ±0.1mm |
| Standard Table Thickness | 25mm |
| Reinforcement | Ribbed underside structure (prevents sagging) |
For more parameter and drawing ,pls feel free to DM our sales engineer:Eva summer now!
Products Features
Our latest projects
1.Nitrided Steel Surface
Full nitriding treatment creates a hard, anti-corrosion, and anti-spatter surface. Easy to clean and maintains long-term flatness even under heavy use.
2.High-Strength Steel Construction
Made from premium steel with reinforced ribs underneath. Resists deformation during hammering, tacking, and heavy workpiece loading.
3.Modular Accessory Ecosystem
Compatible with stops, clamps, V-blocks, squares, angle plates, and magnetic holders. Quickly reconfigure for complex weldments.
Products Application
★Welding & Fabrication Shops – Ideal for MIG/TIG/stick welding fixtures
★Pipe & Tube Welding – Works with V-blocks and roller supports (optional)
★Automotive & Motorsport Fabrication – Chassis, roll cages, exhaust systems
★Heavy Equipment Repair – Bulldozer blades, excavator attachments, frames
★Education & Training – Vocational schools, welding certification prep
★DIY & Hobbyist Workshops – Precision small-batch fabrication
Company Certification
Customer Feedback
Shipping and Delivery
Frequently Asked Question
do you have any question?
Q1:Is the D28 system compatible with other brands' accessories?
Most D28 accessories are interchangeable, but we recommend testing fitment first. Our accessories are designed to ISO standard D28 tooling.
Q2:Is the table completely rustproof?
Nitriding significantly improves corrosion resistance, but it is not 100% rustproof. Wipe dry after use and apply light oil in humid environments.
Q3:Do you offer custom sizes?
Yes – we can produce custom length, width, and hole patterns for OEM or large-volume orders.
Q4:What's included in a basic set?
A: Typically: table top + 4 legs (or frame) + fixtures set (pins, stops, clamps). Full list depends on the SKU. Ask us for welding table fixtures set list options.
