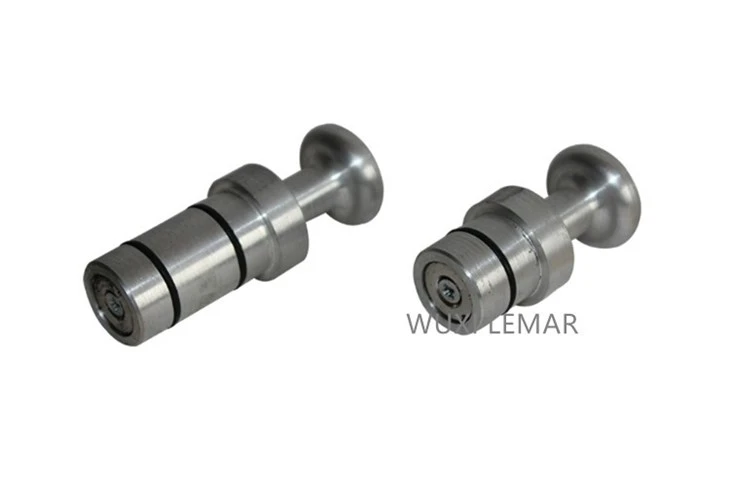

3D welding table Magnetic Clamping Bolt is a bolt used to ensure positioning and locking between components. They are usually used to quickly lock or loosen the axial connection between modules and modules, and between modules and 3D tables. Magnetic Clamping Bolt has the advantages of fast locking, precise positioning, and easy disassembly. It is widely used in various manufacturing fields, such as automobile assembly skateboard platforms, mechanical equipment, etc.
Products Classification
Magnetic Clamping Bolt is divided into two series according to diameter: D16 series and D28 series. These locking pins are usually used with specific accessories, such as countersunk locking pins, quick locking pins, positioning pins, connection locking pins, etc. These lock pins vary in structure and purpose, and the appropriate type can be selected based on specific application needs.

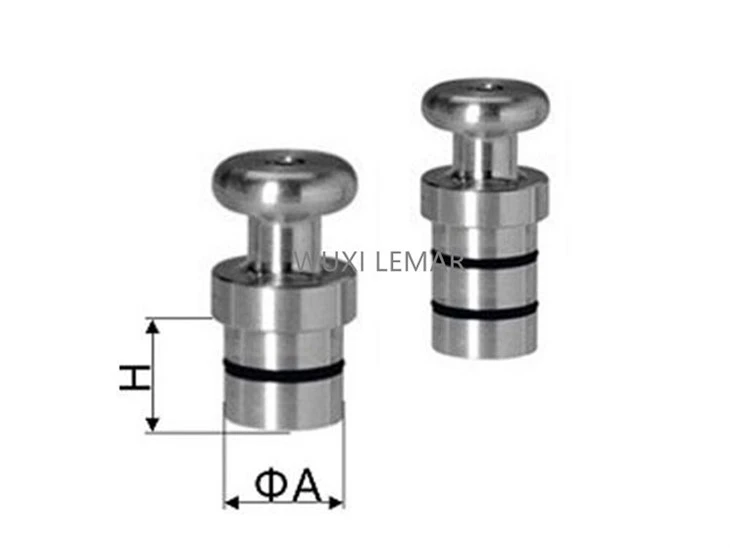

| D28 welding table | ∮28*25mm | 0.3kg |
| ∮28*50mm | 0.35kg | |
| D16 welding table | ∮16*12mm | 0.1kg |
| ∮16*24mm | 0.15kg |
product key technologies
Magetic bolts Main components
Locking body
Locking lever
magnetic steel ball
D16 D28 welding table different size
Large clamping stroke
High clamping force
O-ring for self-centring connection
With clamping area
Hex key or torque wrench use to get bigger clamp force
