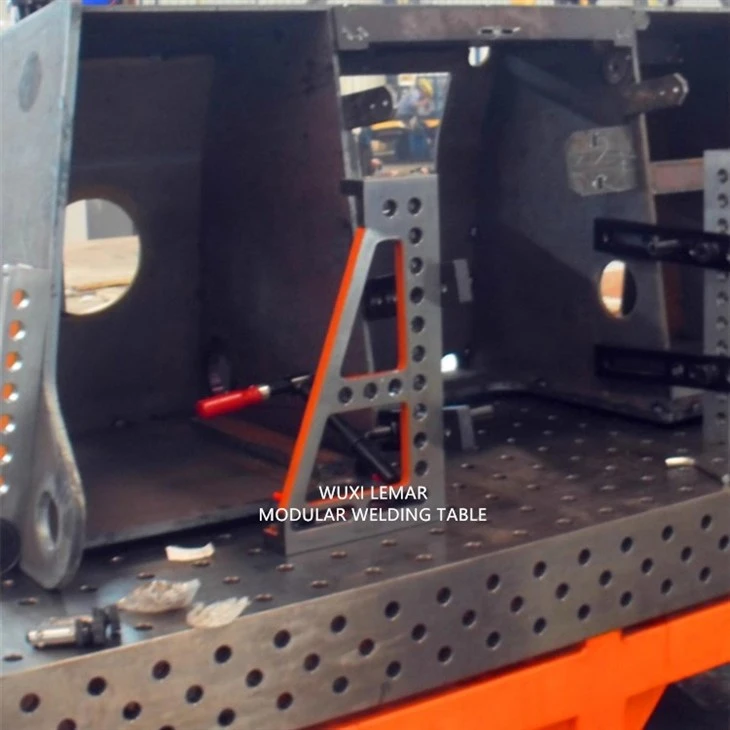

For modular welding tables and accessories, this heavy-duty clamping angle on the right and left is one of the Modular Fixture Weld Table Jig Squares which are crucial in modular welding. It works well as a straight angle, a riser, a stop, and for supporting fixtures. 275 x 100 x 300 mm in size, designed for a 28 mm system bore and 28 mm tap hole.

quick look

1. Material: HT300, undergo overall electric furnace annealing heat treatment to eliminate internal stress;

2. After processing, any working surface shall be free of defects such as pores, blisters, cold insulation, cracks, and repair welding;

3. Geometric tolerance accuracy between working surfaces: 0.1/1000mm;

4. Processed surface finish: 1.6μm; (surface condition = unclear processing marks)

5. Aperture size and accuracy of 3D welding table: φ28.10±0.03mm, hole spacing: 100±0.03mm or 50±0.03mm.

6.Dimension:600*375*100mm/800*375*100mm

7.Unit:Left and right

8.Weight:23Kg

9.Package:Wooden box

features

◆Hardened casting

◆Cost-effective

◆Three supporting surfaces

◆Extension for heavy workpieces

◆Multiduty angles

Each set of clamps provided by Wuxi Lemar is composed of clamp base, positioning, support and clamping fixtures. The use of serialized, standardized clamping elements or functional parts in a modular design to simplify assembly and fast clamping reflects our innovation. Modular and combined design can expand the functions and application scope of fixture components and achieve twice the result with half the effort. It is an important means to achieve "short, flat, fast and cheap" fixture manufacturing.
