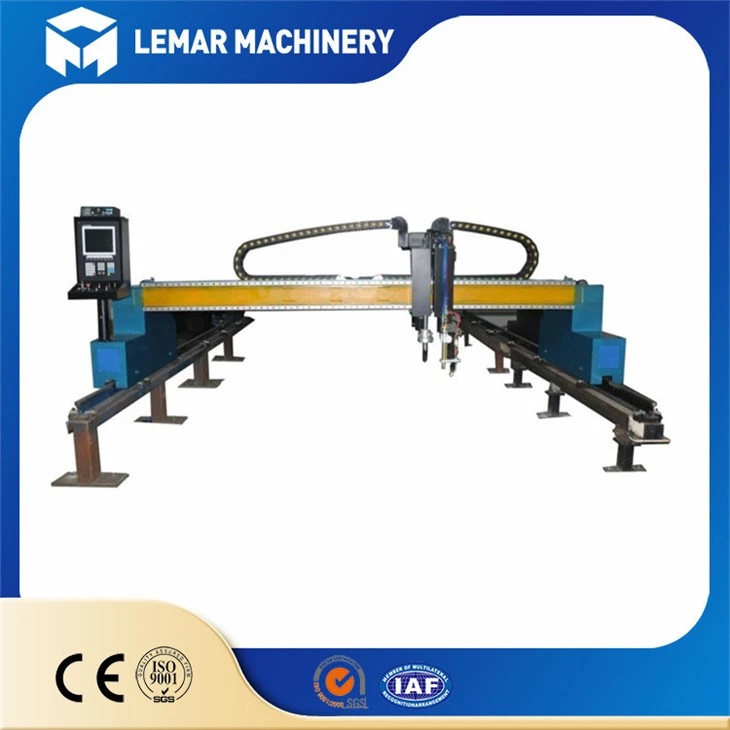

Gantry CNC Plasma Flame Cutting Machine is very widely used for stainless steel, cast iron, copper, aluminum and other metal material.
Machine consists of:
• Main machine
• Rail: 24kg, 2x14m
• Torch: 9 strip cutting torch+1 flame cutting torch+1 plasma cutting torch
• Controller: F2300B
• Servo motor: Japan Panasonic
• Software: FastCAM STD
• Plasma source: Huayuan LGK-120IGBT
Technical parameters:
| 1 | horizontal track gauge | 4000mm |
| 2 | effective cutting width | 80-3100mm |
| 3 | track length | 16000mm(customized,prepared by clients) |
| 4 | the effective cutting length | 15000mm(customized according to track length) |
| 5 | cutting speed | 50-1000mm/min |
| 6 | quick-return speed | 4000mm/min |
| 7 | CNC cutting torch | 1 group (one flame,one plasma) 9+1 groups of Straight strip cutting (optional) |
| 8 | cutting thickness | flame cutting:6-100mm Plasma cutting:6-25mm(optional according to plasma cutting thickness) |
| 9 | cutting gas | oxygen, acetylene or propane |
| 10 | accuracy | ±0.5mm |
| 11 | the cutting surface roughness: | Ra12.5~25 |
| 12 | drive | all-digital vector AC servo motor drive |
| 13 | Plasma power | CUT200(optional according to plasma cutting thickness) |
| 14 | the arc voltage to increase | Ang-Tai raised in Shenzhen |
| 15 | the servo motor | Panasonic AC Japan servo |
| 16 | servo drive | Panasonic |
| 17 | the planetary reducer | Humphrey |
| 18 | automatic gun | Wuxi longteng |
| 19 | the control contactor | Schneider |
| 20 | main components | Siemens |
