Product description

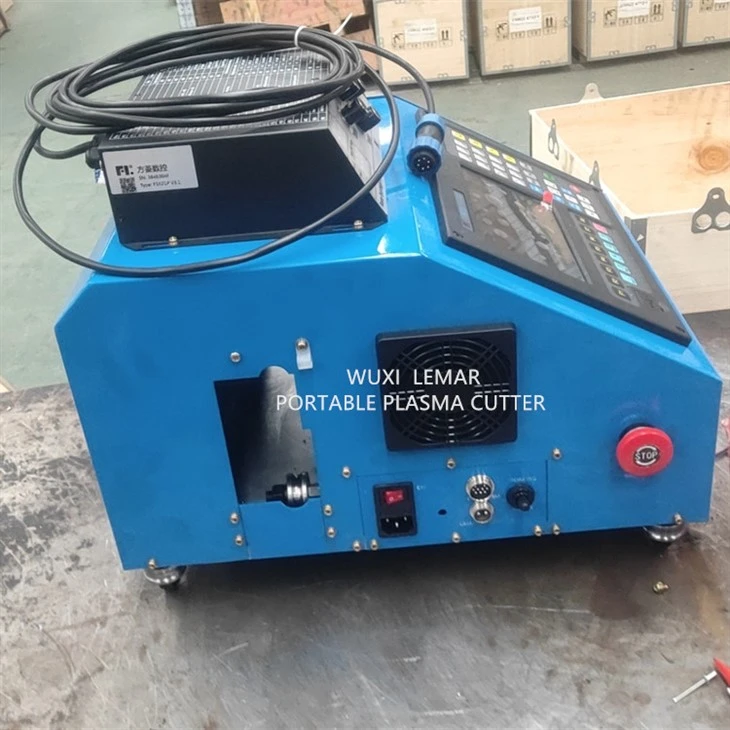

Plasma Cutter And Oxy Fuel Cutting Machine is also known as a portable CNC plasma cutting machine, with an automatic height adjustment system. This is an integral mobile type. It can be used like a "small sports car" and can be directly placed on the steel plate to be cut. Convenient and flexible, suitable for precision cutting of carbon steel, stainless steel and non-ferrous metal plates of various thicknesses.
Configurable plasma mini automatic height adjustment system.
The model configuration is divided into two specifications and sizes, respectively (1500*3000mm is the basic configuration):
1. LGK-1530 effectively cuts 1500mm transversely and 3000mm longitudinally; single plasma cutting torch configuration, micro automatic height adjustment configuration;
2. LGK-1560 effectively cuts 1500mm transversely and 6000mm longitudinally; single plasma cutting torch configuration, micro automatic height adjustment configuration.
Product Details
Power: 3Phase 220V
Cutting torch:Flame and Plasma
Cutting thickness: Flame 5-100mm
Plasma it depends on the power of the selected plasma power
(Note:Separate flame cutting without height controller)
Product configuration:

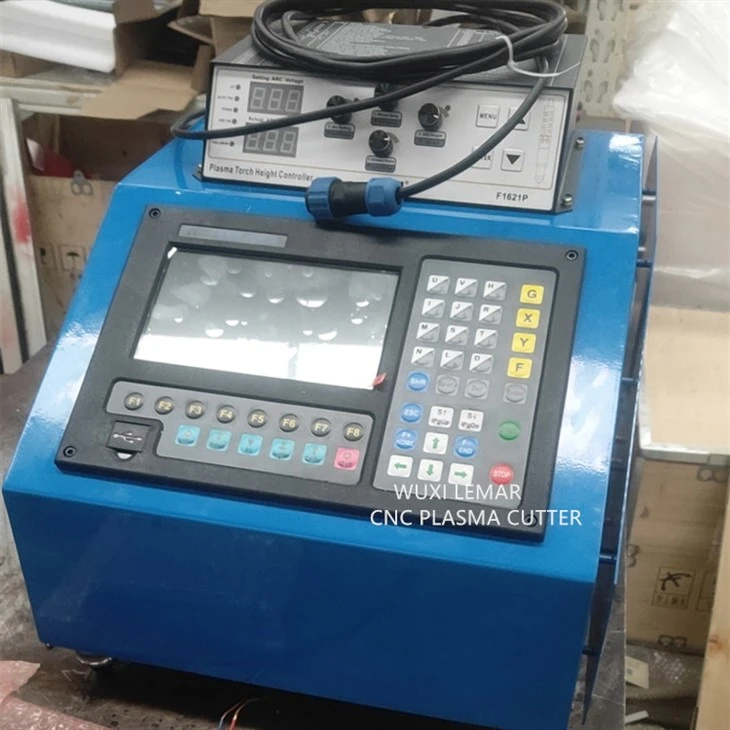

Shanghai Jiao Tong University CNC cutting machine 7-inch true color screen dedicated system
Beijing Star Drive
Beijing Star stepping motor
Shanghai Fangling Nesting Software
High efficiency solenoid valve
Flame plasma dual purpose
Torch clamping device
Electric height adjustment device (Z axis)
Reinforced aluminum alloy beam (X axis)
Thickened overall industrial aluminum alloy guide rail (Y axis) (rail width 255mm)
Oxygen + gas cutting torch assembly (1 set)
3 meters international extended power cord (1 piece)
Special screws for fixing longitudinal rails (4 pcs)
Flame cutting nozzle (1 pc)
High temperature insulation board (1 piece)
Production certificate (1 copy)
