F2300 For CNC Plasma Flame Cutting Machine
CNC Plasma Flame Cutting Machine is mainly suitable for offshore, machinery,stainless steel,carbon steel,Steel structure and other metal material.
Features:
1. The CNC flame cutting machine is of fixed guide rail and mobile gantry type;
2. The flame cutting gun will cut the flange and web of the H-beam;
3. The working accuracy of the cross arm is within 0.5mm/m;
4. Oxygen and acetylene or oxygen and acetone gas as fuel source;
5. The length of the guide rail is 14M*2PCS;
6. X-axis Panasonic servo and pilot reducer drive, Y-axis Panasonic servo and pilot reducer drive;
7. Numerical control system: F2300.
Products parameters
|
Item. |
Value |
|
Effective cutting width of CNC cutting torch |
3200mm(single torch)≤2900 mm or double drive and customized size |
|
Effective cutting length |
≤12500mm |
|
Idle travel speed |
20- 6000 mm/mi Steplessly adjustable |
|
Flame cutting speed |
20- 800 mm/mi Steplessly adjustable |
|
Flame cutting thickness |
≤100 mm(single Torch);9 Torch working together≦30mm; |
|
Flame perforation thickness |
≤80 mm |
|
Flame cutting torch lifting stroke |
≤150mm |
|
Machine accuracy standard |
meets the JB/T5102-1999 |
|
Intersection offset |
≤0.5mm(800mm×800mm line standard stipulated graphics scribing) |
|
Diagonal difference |
≤0.5mm(3000mm×3000mm Square dash) |
|
Cutting roughness(Quality cut) |
Ra≤12.5 |
|
Speed error |
3% |

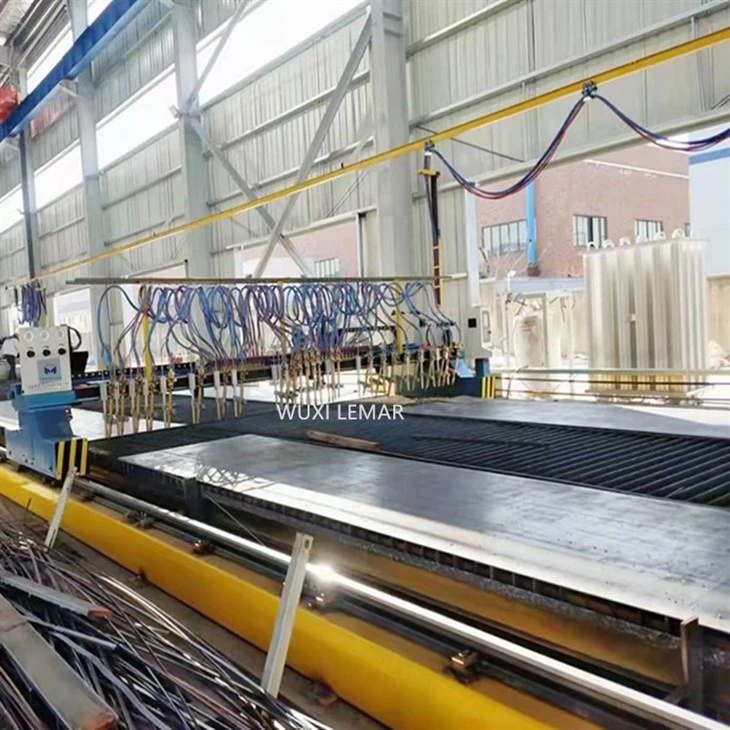

Products Display
