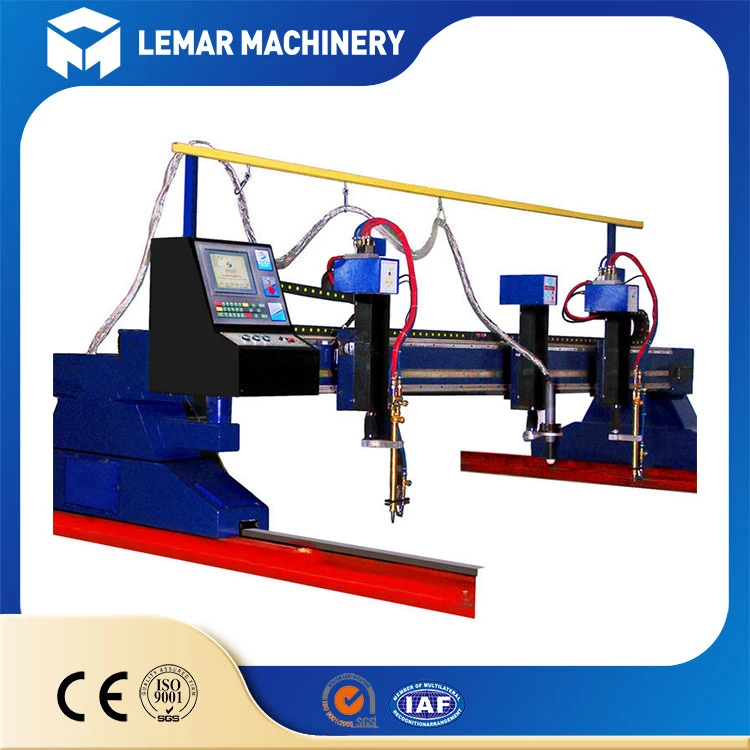

Gantry Cutting Machine

Introduction

Gantry Cutting Machine is a beam lifting structure, and adopts stepless speed regulation of imported frequency converter. The gantry frame makes it highly accurate and vibration-free. The headstock of the Gantry Cutting Machine moves left and right along the double V-shaped guide rails on the beam. The cutting table can be rotated 360 degrees, with a mechatronics design, reasonable structure, high rigidity and stable performance. Adopting double column, beam lifting system, double-axis spindle box, granite cutting machine completes the cutting task at one time, no need to unload the slab when processing large pieces, when cutting ordinary slabs, the machine can also load 3 large blades and 3 small blades Work down.

Gantry Cutting Machine is designed for heavy metal plate cutting, The CNC plasma and flame cutting machine has gantry structure with double-driven system, working size can be customized upon requirement.

Products parameters

Rail	Effective cutting width	Effective cutting length	Cutting thickness	Cutting speed	Torch quantity
3000-10000mm	2300-9300mm	2500mm	6-100mm	50-1000mm/min	6 or 9

our product

The system CNC flame cutting machine adopts a door structure, one side or two sides, which combines computer control, precision machinery and oxygen gas cutting to combine high efficiency and high performance automation equipment.

This series of CNC cutting machines has a wide cutting range, high efficiency, good quality, and can be used for underwater cutting. It has no dust and greatly reduces noise and arc pollution, and the deformation of cutting parts is small.
