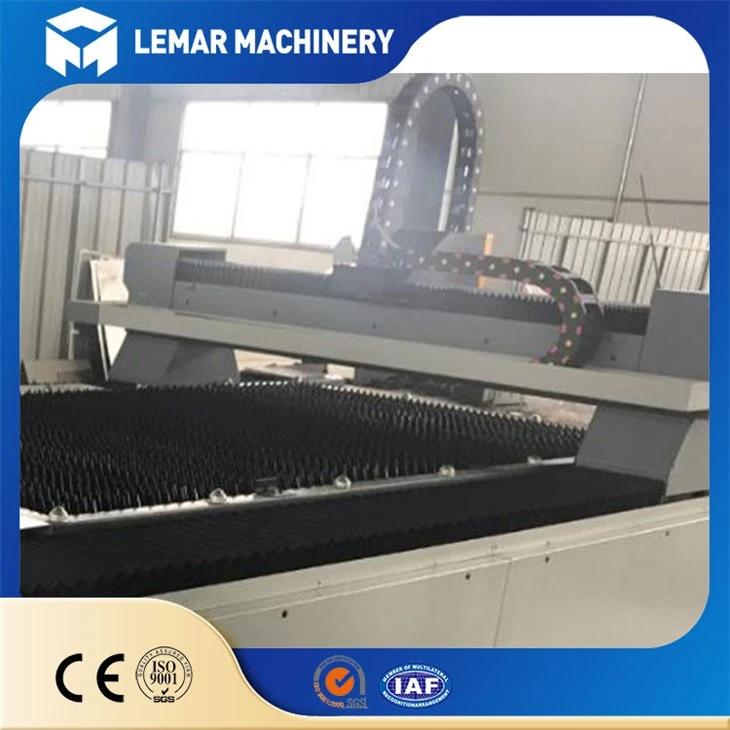

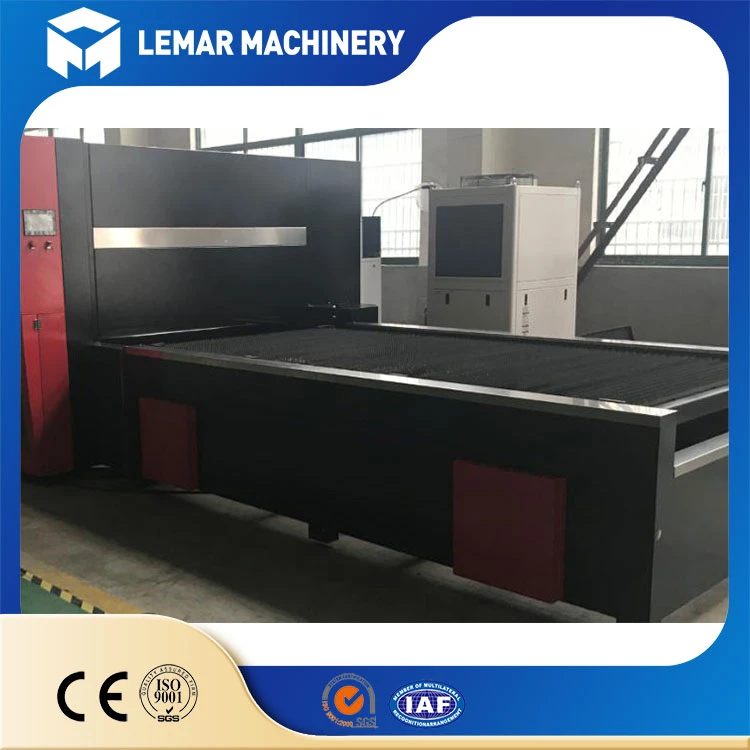

Introduction
Laser cutter machine is one of our products, we mainly sell at home and abroad.
Product Specifications
Project | Technical parameters | |
Laser cutting machine model | YQJG-CNC3015/4020/6020 | |
Max size (mm) | 3000 ×1500 | |
Maximum workpiece height (mm) | 100 | |
Effective stroke | X Axis (mm) | 3050 |
Y Axis (mm) | 2000 | |
Z Axis (mm) | 100 | |
Positioning accuracy | X Axis (mm/m) | ±0.03 |
Y Axis (mm/m) | ±0.03 | |
Z Axis (mm/m) | ±0.01 | |
Repeat positioning accuracy | X Axis (mm) | ±0.02 |
Y Axis (mm) | ±0.02 | |
Z Axis (mm) | ±0.005 | |
Fast positioning speed | X Axis (m/min) | 72 |
Y Axis (m/min) | 72 | |
Z Axis (m/min) | 15 | |
Acceleration | X Shaft (G) | 0.8 |
Y Shaft (G) | 0.8 | |
Loading weight (Kg) | 1500 | |
Rise time (s) | 15 | |
Loading time (s) | 25 | |
Machine power consumption (Kwh) | 6.8 | |
Total weight (t) | 8.5 | |
Working Principle

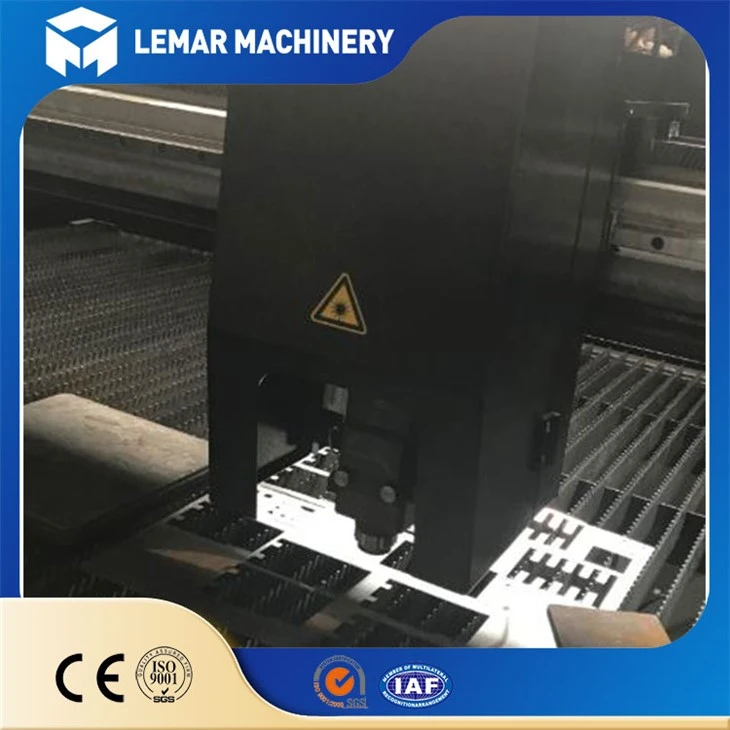

Principle of laser cutting is: Laser cutting Is from the Laser Emitted by the laser, the optical system, focusing on high Power density The laser beam. Laser irradiation to the workpiece surface workpiece reaches melting point or boiling point, and beam coaxial with high-pressure gas melting or vaporizing metal blow. Along with the relative position of the beam and workpiece move and eventually the material cutting, so as to achieve the objective of cutting.
Cutting Process Factor
Lasers, laser power and focus position, touch the mouth height (generally 1mm Or less), nozzle diameter.
Auxiliary gases (auxiliary gas purity and auxiliary gas flow, assist gas pressure), cutting speed and thickness of sheet metal, sheet metal surface (such as rust, foreign bodies, oil, etc).
Application
Packaging and Shipping
