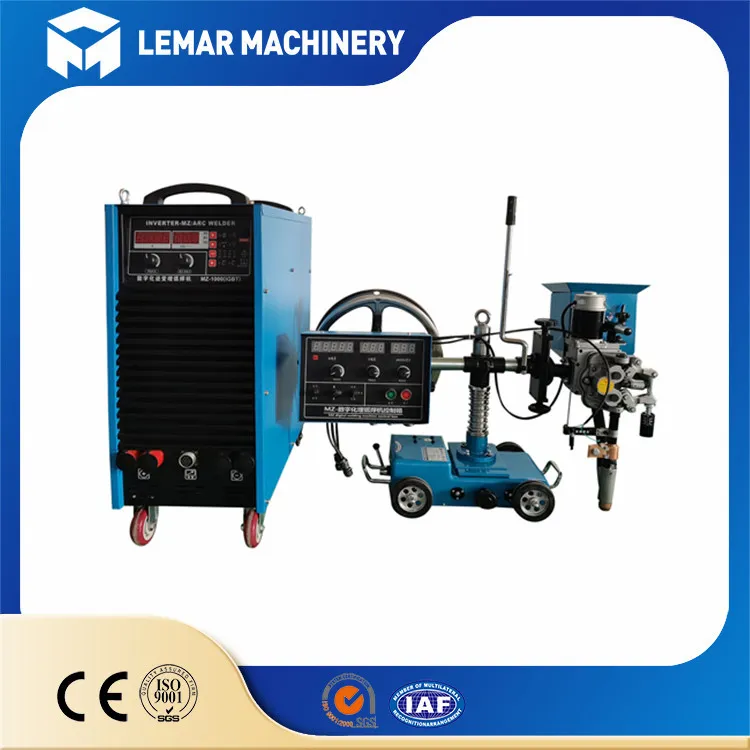

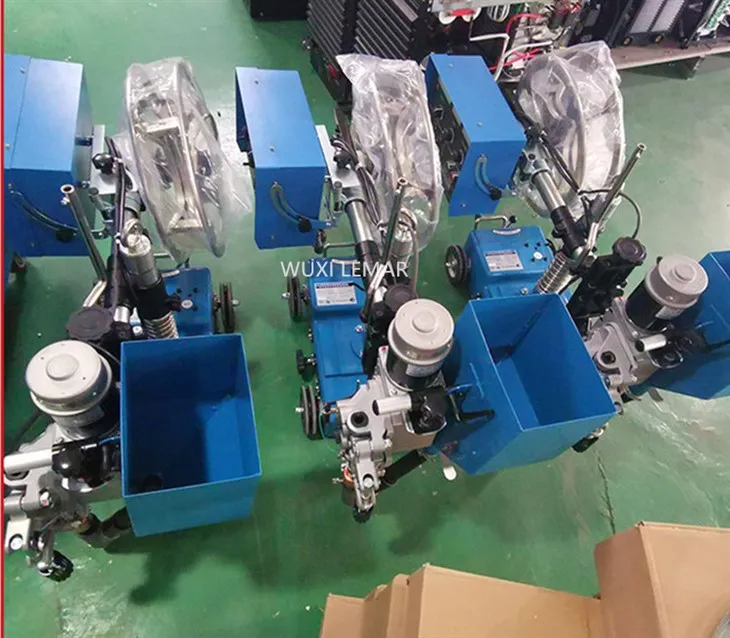

Product Description
Automatic Submerged Arc Welding Machine can weld carbon structural steel, low-alloy structural steel, stainless steel, heat-resistant steel and its composite steel. In addition, equipped with a carbon arc gouging gun and compressed air, this machine can also be used as a carbon arc gouging power source, suitable for carbon rods up to 16mm in diameter. The power supply adopts thyristor rectification, which can quickly and automatically compensate for network fluctuations to ensure stable arc and convenient output current adjustment.
Product Parameters
| Item | Unit | Details |
| Applicable wire diameter | mm | Φ2,Φ2.5,Φ3,Φ4,Φ5 |
| Wire feed speed adjustment range | cm/min | 25~300(55~600) |
| Welding speed adjustment range | cm/min | 20~155 |
| Machine head vertical adjustment distance | mm | 93 |
| Adjust the distance of machine head left and right | mm | ±30 |
| Column lifting adjustment distance | mm | 140 |
| Welding carriage wheel spacing | mm | 300 |
| Welding carriage wheelbase | mm | 350 |
| Rotation angle of cross arm around column | / | ±90 degree |
| Front and rear tilt angle of machine head | / | ±30 degree |
| Machine head left and right tilt angle | ±30 degree | |
| Flux capacity | L | 10 |
| Dimensions | mm | 1010*580*930 |
| Weight | kg | 52 |
Feature
Submerged arc welding carriage adopts clutch structure and has manual/automatic walking function;
Move the carriage laterally to fine-tune the horizontal alignment of the welding wire and weld seam;
The cross arm rotation and lifting lock function can rotate ±90° around the column;
The controller can move and rotate left and right to facilitate the operation of different submerged arc welding positions and angles.
