Multi-head Strip Cutting Machine
The Multi-head Strip Cutting Machine is a high efficiency flame cutting device with thyristor speed control. It is an ideal steel structure to make sheet metal stripping equipment by cutting multiple strips at the same time.
Products Description

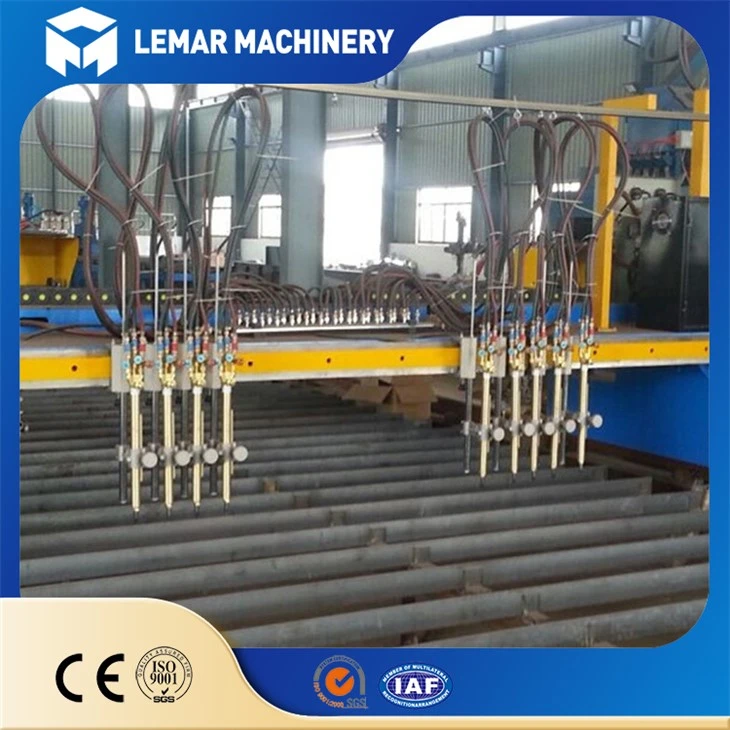

9 sets of line torches on the front of the main unit for longitudinal straight cutting
A set of transverse torches on the back are used for straight cuts.
The machine adopts thyristor speed regulation, DC servo motor drive, and can also be equipped with CNC system.
Optional overall torch lift mechanism
Optional water spray device
Products parameters
|
Model |
Rail torque |
Effective stroke |
Cutting width |
Cutting speed |
Longitudinal strip cutting torch |
Transverse cutting |
Cut stroke |
|
CG-4000 |
4000mm |
3200mm |
80-3300mm |
100-750mm/min |
9 groups |
1 group |
100mm |
|
CG-5000 |
5000mm |
4200mm |
80-4300mm |
100-750mm/min |
9 groups |
1 group |
100mm |
Products application
Widely used for slat cutting in the steel structure industry
