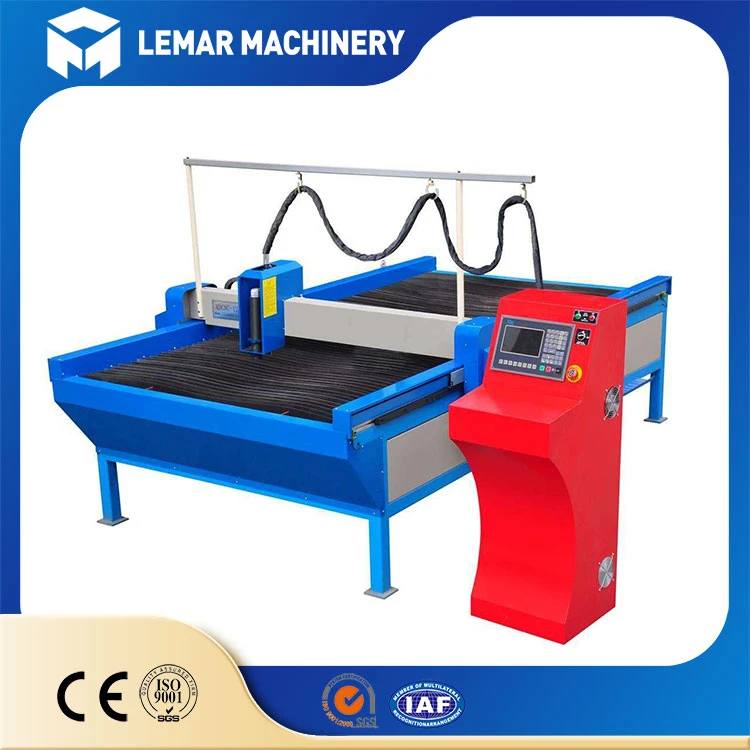

Table Type CNC Plasma Cutting Machine

Introduction

The Table Type CNC Plasma Cutting Machine we provide is created using industrial-grade components under the guidance of our trusted employees. In addition, it can be compatible with all power sources according to production requirements, and is equipped with a specially designed cutting table with a centralized smoke exhaust pipe that allows suction from the gantry area and saves smoke exhaust energy.

Products Description

1	Rail space(mm)	3560
2	Effective cutting width(mm)	3000
3	Rail length(mm)	3500
4	Effective cutting length(mm)	3000
5	Max cutting thickness(mm)	150
6	Cutting torch 120	1pcs CNC Max thickness 12mm
7	Max positioning speed(mm/min)	15000
8	Cutting torch lifting height	180mm
9	CNC system(Beijing Start SF-2200H)	2pcs
10	Longitudinal linear rail	9pcs
11	Longitudinal level 7 precision rack	18pcs
12	Drag chain	1pair
13	Arc pressure type automatic tuning device(domestic cutting torch height controller)	1set
14	Stop block	1set
15	Electrical control cabinets	1set
16	Auto-programming and nesting software(doestic)	1set
17	Environment temperature	0-50℃
18	Relative humidity	95% Non-condensing
19	Surroundings	Ventilation,no big impact
20	Supply voltage	220V/380V±10%
21	Supply frequency	50Hz / 60Hz
22	Input power	CNC system & Driver＜3KW

Products Description

Table Type CNC Plasma Cutting Machine

The beam adopts a large box-shaped welded structure with good overall rigidity and high strength. The rail surface must be precisely processed to ensure the correct positioning of the moving body.

Both ends of the frame adopt an open double four-wheel contact displacement method, the center of gravity is eccentric, stable and reliable, and a good dynamic balance is ensured. The heat treatment of all welded parts can reduce stress and effectively prevent structural deformation.

For gantry frame structure models, transverse rails and precision rack beams must be used to eliminate overall annealing.
