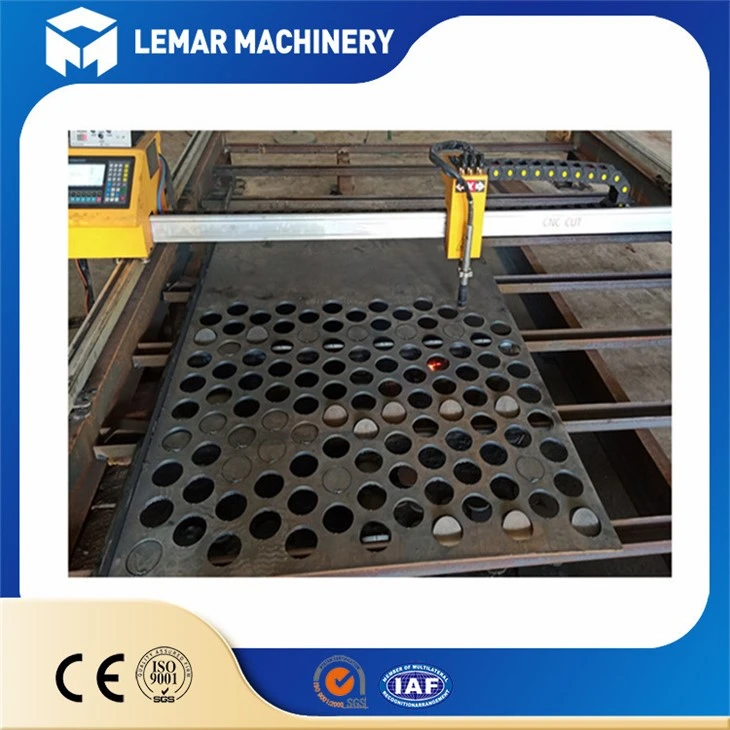

CNC Automatic Flame And Plasma Portable Cutting Machine
CNC automatic flame plasma portable cutting machine is suitable for portable and flexible cutting machines with various materials and different functions.
Products parameters
1,Device Configuration
|
No., |
Item |
Quantity |
Unit |
Remark |
|
1 |
Host models YQ1560 |
1 |
set |
Lemar |
|
2 |
Machine horizontal distance |
2000 |
mm |
Effective cutting width 1500 mm |
|
3 |
Rail length |
6500 |
mm |
Effective cutting length 6000mm |
|
4 |
motor |
3 |
set |
Imported (Japan Shinano) |
|
5 |
drive |
2 |
set |
Chinese Brand (Shenzhen Lemire) |
|
6 |

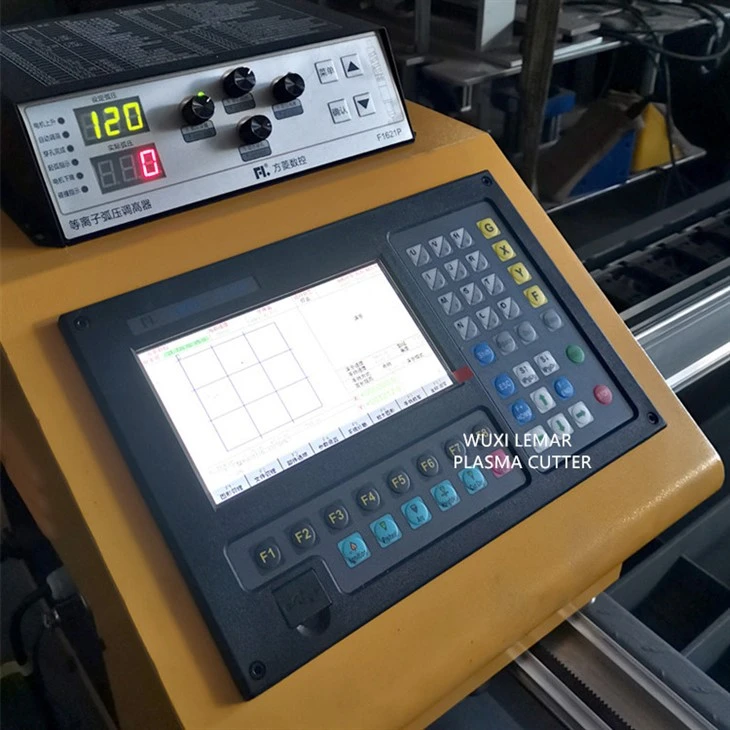

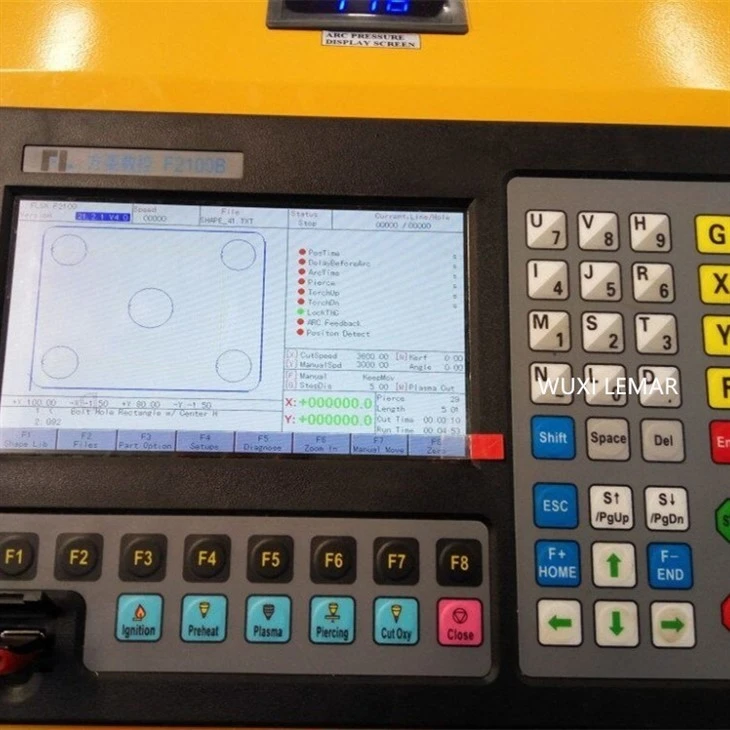

NC system |
1 |
set |
Chinese Brand |
|
7 |
Plasma Interface |
1 |
set |
Chinese Brand |
|
8 |
Solenoid valve |
1 |
set |
Wuxi |
|
9 |
Secondary Development Software |
1 |
set |
Chinese Brand |
|
10 |
Automatic ignition |
1 |
set |
Chinese Brand |
|
11 |
package |
1 |
set |
Self-locking boxes, environmental protection PE foam shock layer |
2,Mainly Parameters:
|
No., |
Item |
Data |
|
|
1 |
Effective cutting width (mm) |
Gauge length -500 |
|
|
2 |
Effective cutting length (mm) |
Track -500 |
|
|
3 |
Flame Cutting Thickness (mm) |
Carbon: Cutting edge 5-100; piercing cutting ≤40 |
|
|
4 |
Torch lifting stroke (mm) |
1-150 |
|
|
5 |
Cutting speed (mm / min) |
50-3500mm/min |
|
|
6 |
Setting speed error (%) |
≤±5% |
|
|
7 |
Auto-precision (mm) |
≤±0.5mm |
|
|
8 |
Longitudinal linear precision |
±0.5mm/2.5m |
|
|
9 |
Linear Repeatability |
±0.5mm/2.5m |
|
|
10 |
Integrated precision machine |
(Integrated Graphics with the right date) side (four sides 200*200) |
|
|
11 |
Focus shift |
0.5mm |
|
|
12 |
Straightness |
0.3mm |
A) equipment, machine positioning accuracy, repeatability: in line with JB / T5102-1999 standard |
|
13 |
Roundness |
0.3mm |
|
|
14 |
Diagonal difference |
0.5mm |
|
|
15 |
Repeatability |
0.3mm |
|
|
16 |
Scribing machine |
≤0.5mm |
|
|
17 |
PrecisionCutting surface quality (roughness) (Optional δ = 25 sheets) |
||
3,Working Environment
|
4.1. Power |
380V±10%,50Hz(optional) |
|
4.2. Power |
0.5KW |
|
4.3. Gas source |
/ |
|
oxygen |
Purity: 99.5% |
|
Preheat oxygen |
Pressure 0.7~0.8Mpa |
|
Cutting oxygen |
Pressure 1Mpa |
|
Acetylene or gas |
Pressure 0.04~0.06Mpa |
|
4.4. Ambient Temperature |
-10ºC~45ºC |
|
4.5. Relative humidity |
90% non-condensing |
|
4.6. Installation Environment |
No large impact shock within 5m |
4,Feature
Automatic cutting: Delay, preheating, perforation, radius compensation, breakpoint recovery, continuous rollback.
Efficient cutting: production increase 6-8 times than manual cutting.
Improve output than semi-automatic cutting car 4-6 times.
Cutting quality: machine positioning accuracy, repeatability reach JB / T5102-1999 standard.
Cutting quality to meet JB / T10045.3-1999, JB / T10045.4-1999 standard.
5,Enclosed please find the Instructions
|
ITEM |
NAME |
SPEC |
QTY |
UNIT |
REMARK |
|
|
1 |
Wearing parts |
Cutting nozzle |
0-3# |
1 |
set |
|
|
Machine flame torch |
1# |
1 |
set |
|||
|
2 |
Tools |
Cutting nozzle needle |
1 |
box |
||
|
3 |
Enclosed Sheet |
Product certification |
1 |
pc |
||
|
Product Manual |
1 |
pc |
||||
|
Secondary Development Software |
1 |
set |
||||
|
power cable |
1 |
pc |
||||
|
Clamps |
2 |
pc |
Products Features
-Use medium pressure acetylene and high pressure oxygen as fuel.
-Mainly used for wire-cut steel plates over 8mm. And round cutting, bevel cutting, V-shaped cutting over 200mm.
-Add other accessories for flame hardening and plastic welding.
-Portable and small in size.
Automatic cutting: delay, preheating, drilling, radius compensation, breakpoint recovery, continue backing;
Effective cutting: 6-8 times higher than manual production efficiency. Semi-automatic vehicles 4-6 times.
High-quality cutting: good positioning and repeatability and cutting quality.
