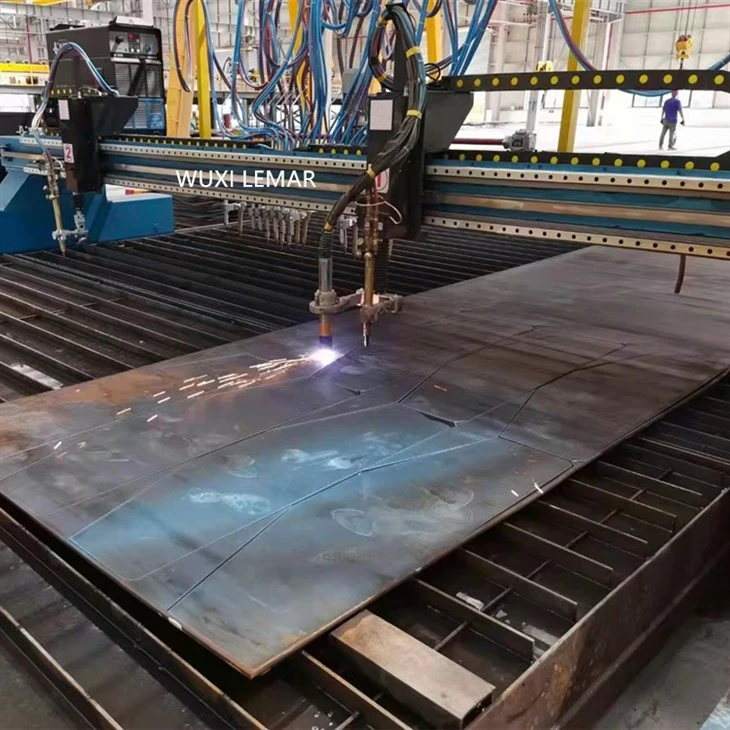

CNC Plasma Flame Metal Cutting Machine
Introduction
CNC Plasma Flame Metal Cutting Machine has the best conditions and can be used for batch size linear steel plate cutting, as well as cutting of various geometric shapes.
The main frame is annealed to eliminate stress and is stable and durable. Servo motors, reducers, pressure relief valves, air pipes, solenoid valves, and cutting guns are all world-renowned brands with excellent performance.
CNC Plasma Flame Metal Cutting Machine is driven by imported AC motor and imported bevel gear reducer. Cooperate with precision rack and pinion movement to ensure stable function. The air cut speed is adjusted by the frequency converter. The air source control box on the host can easily adjust the air pressure of each channel. All pressure regulating valves and main air ducts are imported with original packaging. The pipes and wires on the cross-cutting gun adopt imported matching chains, which are safe and tidy.
Products features
Brief Introduction:
1. The CNC flame cutting machine is guide rail fixed, gantry gate move type;
2. The flame cutting guns will cut the flange and web of H beam;
3. Cross arm operation accuracy is within 0.5mm/m;
4. Oxy and acetylene or oxy and acetonum gas as fuel source;
5. Guide rail length is 4m/16m/18m*2pcs;
6. X axis Panasonic servo and pilot reducer driven, Y axis Panasonic servo and pilot reducer driven;
7. CNC system: Start/Hypertherm/Shanghai SF2100
Supply scope:
Frame unit: Beam, pipe, broadwise beam and longitude and broadwise reducer and etc.
Track unit: Guide and accessories. The guide size is 14m/16m/18m*2pcs.
Cutting torch unit: Linear single cutting gun*10PCS and accessories.
Electric control system: Electric control cabinet, longitude and broadwise motors and accessories.
Gas source unit: Main air rubber pipe, suspending sliding vehicle and etc.
Products parameters
|
model |
Drive way |
two rails' distance (mm) |
effective cutting width (mm) |
cutting thickness(mm) |
cutting speed (mm/min) |
max speed (mm/min) |
cutting torch vertical route(mm) |
|
CNCI-3000 |
single side |
3000 |
2100 |
6-100 |
100-750 |
6000 |
150 |
|
CNCI-3500 |
single side |
3500 |
2600 |
6000 |
150 |
||
|
CNCI-4000 |
single side |
4000 |
3100 |
12000 |
150 |
||
|
CNCII-5000 |
double sides |
5000 |
4100 |
12000 |
150 |
||
|
CNCII-6000 |
double sides |
6000 |
5100 |
12000 |
150 |
||
|
CNCII-7000 |
double sides |
7000 |
6100 |
12000 |
150 |
||
|
CNCII-8000 |
double sides |
8000 |
7100 |
12000 |
150 |
||
|
CNCII-9000 |
double sides |
9000 |
8100 |
12000 |
150 |
||
|
CNCII-10000 |
double sides |
10000 |
9100 |
12000 |
150 |

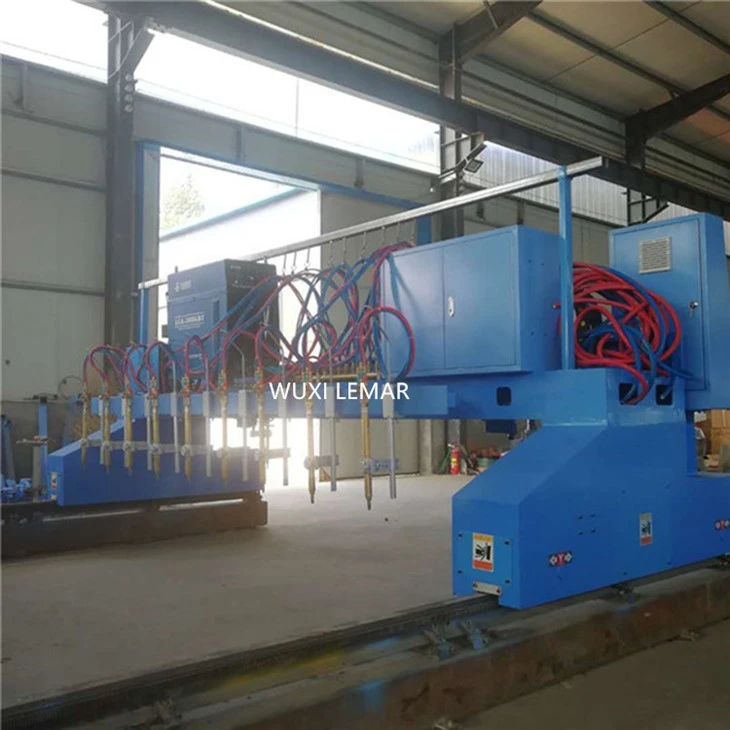

Products Details
Equipment quality and after-service commitment:
1. All the products our company produced are compliant to national and enterprises standard.
2. Our products should meet all the technical requirement and parameters, and ensure the safe and stable function.
3. We will send workers to the working site of the buyer for engaging in and instructing the installation and test, until the equipment is ready for use. We also train the equipment operator and maintenance staff for user.
4. The equipment guarantee period is one year. During this period, for the breakdown not caused by mis-operation by user, we will be responsible for repair and replace.
5. After the guarantee period, our companies will provide maintenance service and spare parts at low cost.
Documents with goods:
1, Instructions including map of electricity and gas.
2, Certificate
3, Packing list
4, On site installation drawing for laying foundations.
FAQ
Q1: I knew nothing about this machine, how am i know this machine will meet my working needs?
Please tell us your workpiece size or show specific drawings, we will give you professional solutions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We provide overseas service and English manual, after installation, if any problems happen, we offer the remote video guidance and charging overseas service.
Q3: If some problems happen to this CNC Gantry type plasma flame cutting machine during warranty period, what should I do?
Contact us directly, we will supply free parts during machine warranty period. While we also supply free life long after-sales service.
