Product description

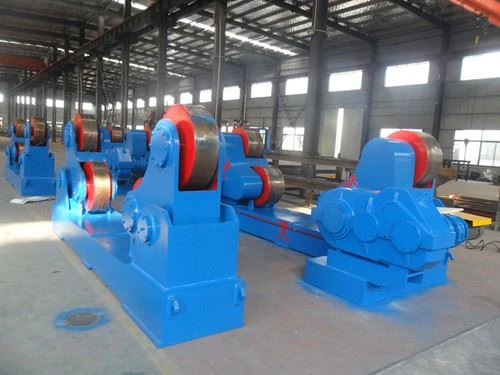

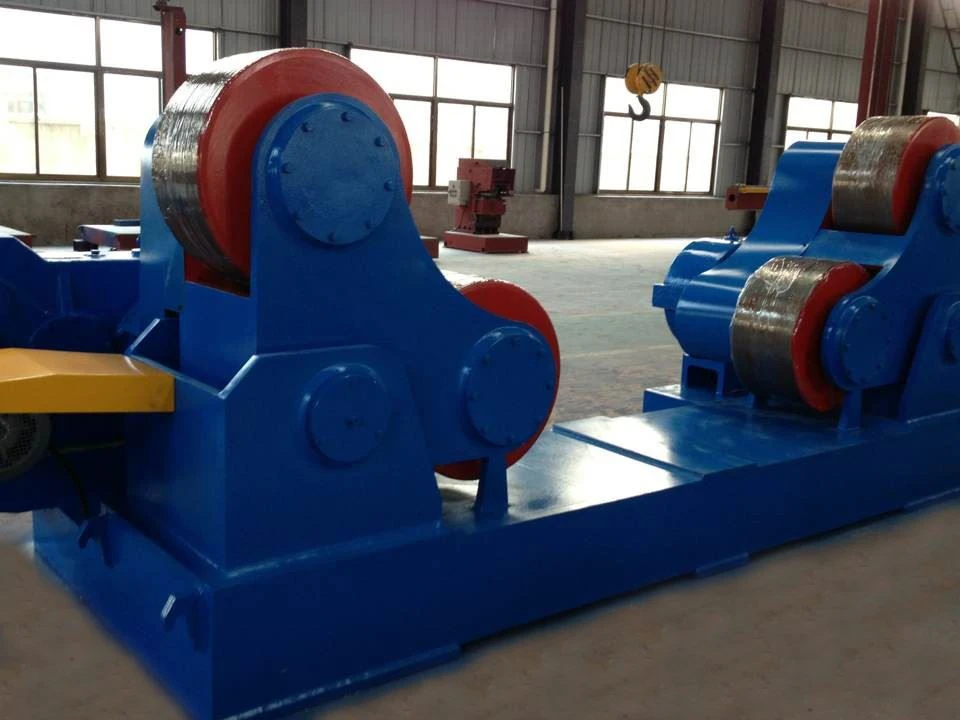

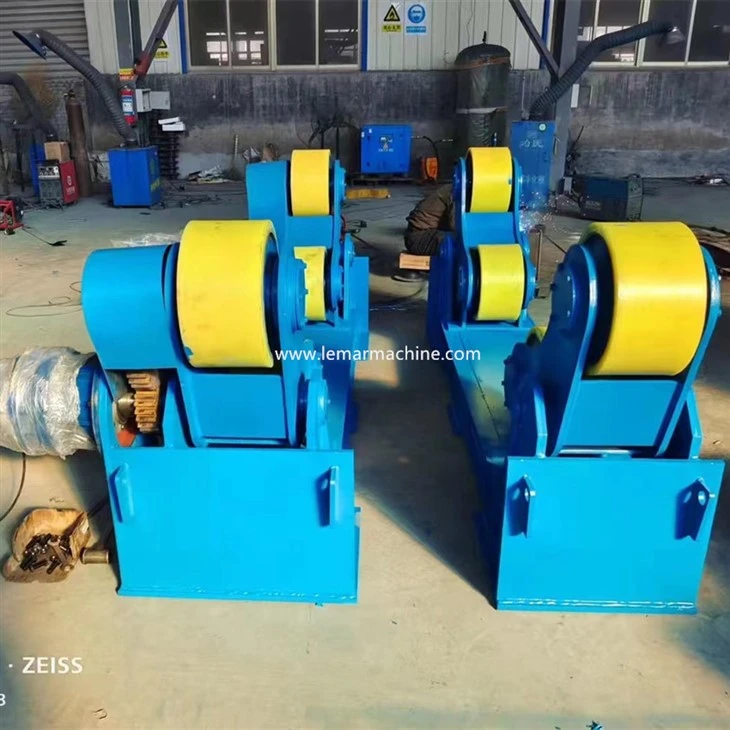

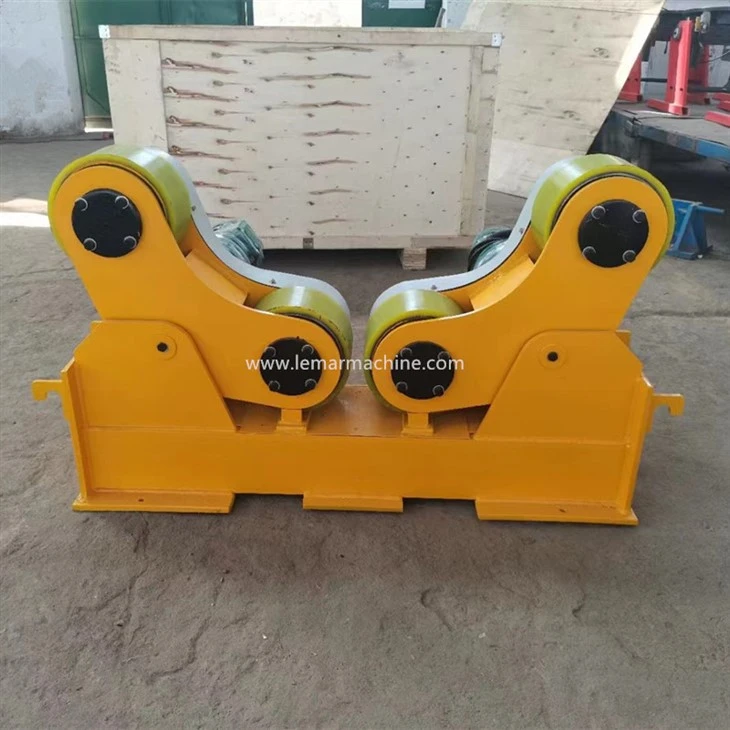

The Welding Turning Rolls Rotators series has various forms such as self-adjusting, adjustable, flat-car, tiltable, and reverse axial movement.
Used for welding, polishing, rubber lining and assembling of cylindrical barrels, self-adjusting roller racks can be adjusted according to the size of the barrels, adjustable roller racks can be adjusted by screw, screw step adjustment, etc., using AC frequency converter Control, line speed digital display, advanced and reliable, our factory can also design and customize various types of roller racks according to user needs.
Features:
1. It can be combined arbitrarily according to the weight and length of the weldment, which is convenient and flexible to use;
2. The center distance of the rollers is automatically adjusted within the specified range, suitable for weldments of different diameters, and the cylindrical weldment is placed smoothly;
3. SCR-powered DC motor drive, stepless speed regulation, wide welding speed range and stable speed;
4. Strong applicability and widely used;
5. Combined rollers, steel wheels outsourcing rubber, stable transmission, high friction and long life;
6. Small wheel pressure on the workpiece can avoid cold work hardening on the working surface.
Specifications:
| Max load weight | 30000kg | Diameter of metallic wheel | 344mm |
| Width of metallic wheel | 30mm | Diameter of rubber wheel | 350mm |
| Width of rubber wheel | 120mm | Cylinder Min Diameter | 500mm |
| Cylinder Max diameter | 4000mm | Linear speed | 6-60m/h |
| Motor power | 2.2 kw | Brand | Lemar |
Tips for using the roller rotator:
1. If the length of the pipe or tank or vessel is too long, a set of driven wheels rotator can be added;
2. In order to reduce the axial movement of the workpiece, 8pieces of M10 bolts can be added to fix the main wheel and the auxiliary wheel. By adjusting the height of the bolts to maintain balance on both sides of the workpiece, the height in which direction can be increased in which direction the workpiece deviates during use.
For more customization requirements, please contact Wuxi Lemar Machinery Equipments Co.,Ltd.
