Industrial Welding Positioners

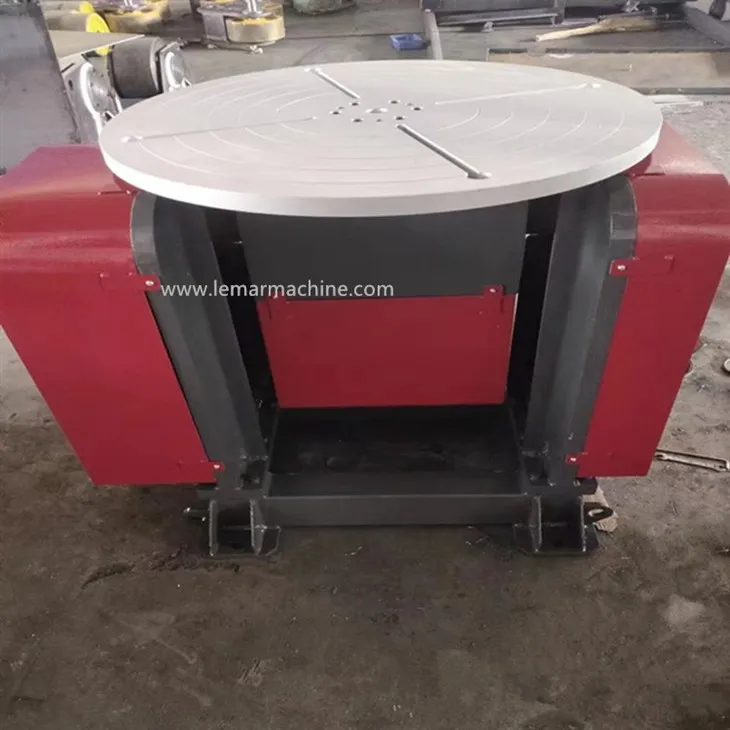

Welding positioner, also called welding rotary table, can enable circumferential seam welding of workpieces in different positions.
The welding positioner produced by Wuxi Lemar is easy to operate. It can be installed and operated at a lower position according to customer needs. It can be raised to a high position and then flipped over so that the welding seam is in the ideal position. The through hole on the positioner table can also be customized according to customer requirements. Customized sizes, 3-jaw chuck, 4-jaw chuck and a variety of customized industrial chucks are available.
Products parameters
| NO. | Technical Parameter | Type | ||||||||
| BWJ1 | BWJ3 | BWJ6 | BWJ12 | BWJ30 | BWJ50 | BWJ100 | BWJ150 | BWJ200 | ||
| 1 | Rated loading (Kg) | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | 20000 |
| 2 | Max eccenteric Distance(mm) | 50 | 100 | 200 | 200 | 250 | 250 | |||
| 3 | Max distance of Gravity center (mm) | 150 | 200 | 300 | 400 | 500 | 600 | |||
| 4 | Working table size (mm) | φ 400 | φ 600 | φ 1000 | φ 1200 | φ 1400 | φ 1500 | φ 1800 | φ 2000 | φ 2200 |
| 5 | The amount of table T-beam groove | 4 | 6 | |||||||
| 6 | Tilting angle (° ) | 0° -90° | 0° -120° | |||||||
| 7 | Rotating speed (rpm) | 0.2-2 | 0.15-1.5 | 0.1-1 | 0.05-0.5 | 0.03-0.3 | ||||
| 8 | Rotating Power(KW) | 0.18 | 0.18 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 |
| 9 | Tilting speed (rpm) | 0.8 | 0.5 | 0.3 | 0.14 | |||||
| 10 | Tilting Power(kW) | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | ||
| 11 | Structure of rotating axes | Direct connection of reducer | Tilting support | |||||||
| 12 | Speed adjusting way | Rotating speed VFD | ||||||||
| Tilting speed constant | ||||||||||
Products Description
1. Positioner can tilting from 0 to 120°, rotating 360° by VFD
2. Voltage standard is 380V-3PH-50HZ, but we can make 110-575V as per your requirement
3. This machine is controled by remote-control box, optional optional foot switch
4. Other more special requiements please contact us
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Products Features
1.Rotary table is equipped with radial "T" grooves for fixing the workpiece;
2.Rotation adopts stepless speed regulation by frequency converter, which has the characteristics of wide speed regulation range and smooth operation;
3.Workbench adopts hydraulic flipping and lifting, which has the characteristics of high efficiency and smooth operation;
4.Hydraulic system has a pressure relief and self-protection function, which effectively prevents mechanical overload from damaging the equipment; it has a compact structure, a small footprint, and is more convenient to operate;
5.Industrial turning positioner does not need to be fixed on the foundation and is easy to move;
6.Main control cabinet and manual control box control, the manual control box can be used to operate the equipment at different positions of the equipment.
