Product Description

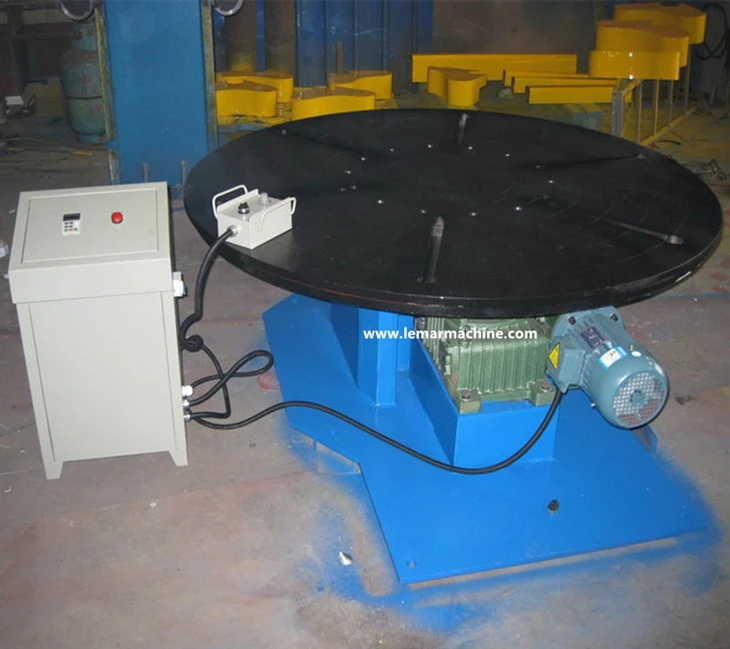

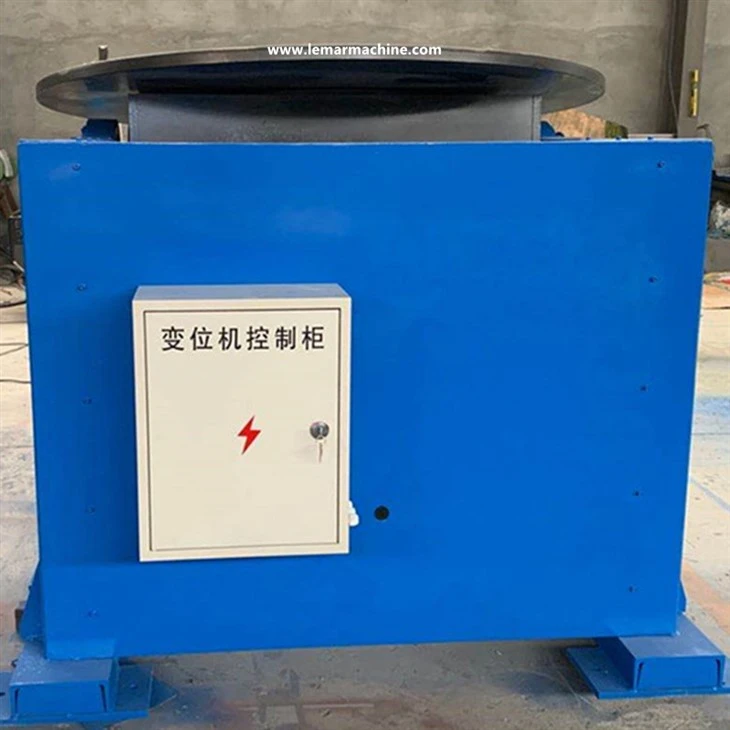

The 1000kg Automatic Turn Welding Table is a device that can rotate 360°, which allows the welder to stand in one position and constantly work on a horizontal surface. With self-locking function, it can protect the workpiece and workers. PLC control box cooperates with foot switch line or wireless control.
Turntable Specifications:
Rated loading:1000KG
Rotation speed:0.03-0.9rpm
Tilting speed:0.4rpm
Turning angle:0-90°
Worktable diameter:1200mm
Rotation Power:1.1KW
Tilting power:1.1KW
Speed regulation methord:AC Frequency conversion stepless speed regulation
Max offsetting:150mm
Max gravity:200mm
What are the types of positioners?
Welding positioner, also known as welding turning machine, turning table and positioner, is a device used to drag the workpiece to be welded to move the weld seam to the ideal position for welding operations. The welding positioner is a machine that can change the weld seam of the welding piece to the welding position during welding. There are many types of welding positioners, such as dual-axis positioners, single-axis positioners, L-shaped positioners, three-axis positioners, etc.
