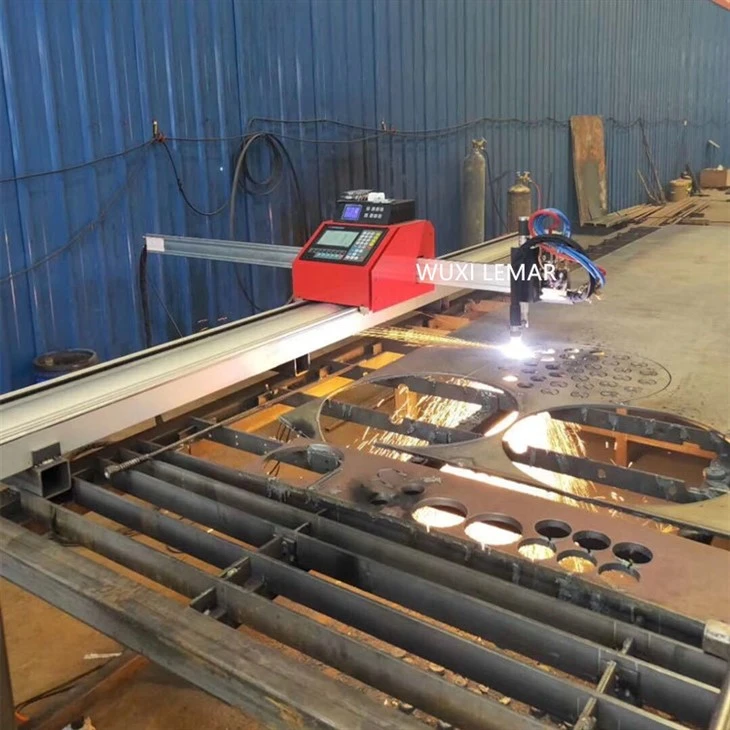

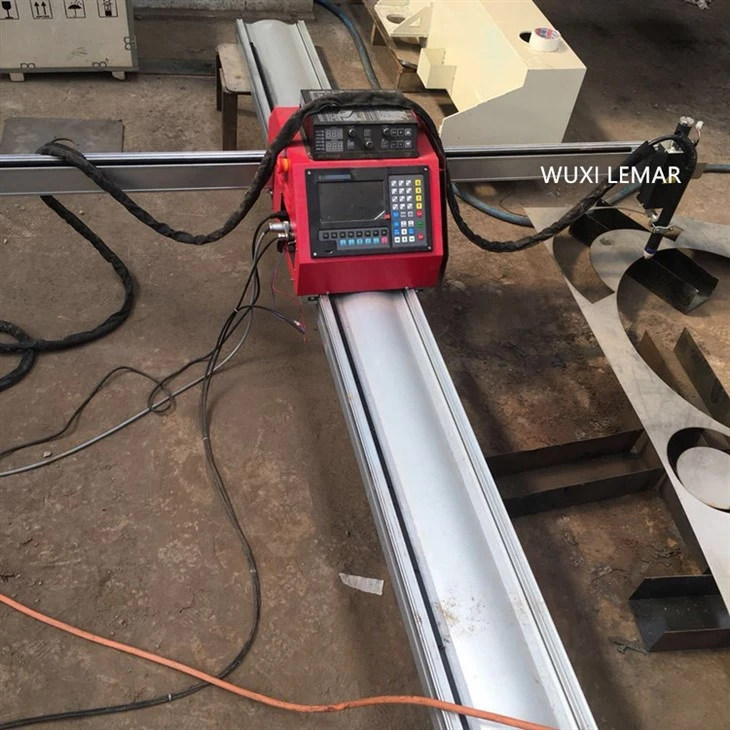

Carbon Steel Plasma Cutter Portable
♦ Plasma cutting and flame cutting can be selected

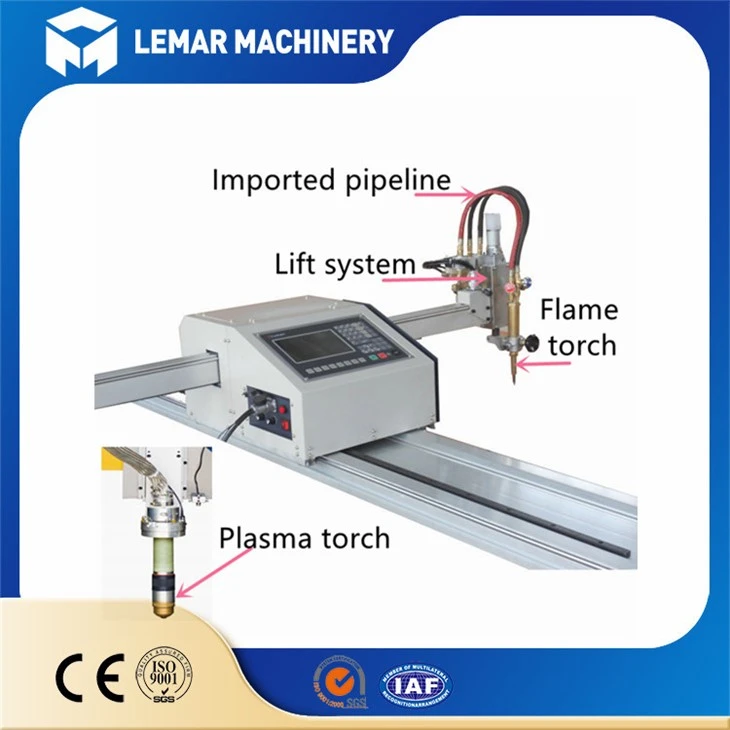

♦ With automatic adjustment of plasma cutting torch lifting function
♦ Cutting complex graphics on any plane
♦ You can choose to cut within 7500mm in length and 1500mm in width
♦ Store more than 1000 program files to be cut
♦Packing weight:50kg
♦Frequency:high frequency
♦Warranty:12months
Products Details
Cross arm length (mm): 2000
Rail length (mm): 3500
Effective horizontal stroke (mm): 1500
Longitudinal effective stroke (mm): 3000
Number of cutting torch groups (mm): 1
Cutting speed (mm): 20-3000
Idle speed (mm): 20-3500
Cutting torch lifting distance (mm): 80
Cutting steel plate thickness (mm): flame 6-60mm; plasma (depending on the size of the plasma power supply, need to be equipped separately)
Products features
The performance characteristics of the portable CNC cutting machine:
1. The gun head of the cutting machine can be adjusted at multiple angles and can cut straight bevels
2. The machine body is a cold-drawn curve high-quality steel structure combined with a high-precision dual-axis center rail without deformation and can ensure accuracy
3. The horizontal 7-level precision rack and high-quality linear ball track structure effectively ensure its strength and precision. The gun head can be equipped with manual height adjustment, electric height adjustment and automatic height adjustment, and automatic ignition device.
4. Small and light, it can be placed and moved as needed.
5. The control system adopts Beijing Star (US-owned) control system, which has the most excellent stability and super anti-interference ability abroad. Full Chinese interface, simple and convenient operation, equipped with special Chinese graphics conversion software, can directly convert CAD graphics into cutting processing codes. Equipped with U disk interface, the office design graphics are transferred to the cutting machine via U disk. Simple graphics can be directly input to the cutting machine on site. The conversion software is all displayed in Chinese (it can also be displayed in English), the cutting process design is simple, and the unclosed graphics can also be processed, so as to achieve co-edge cutting. The software function is more applicable and powerful.
