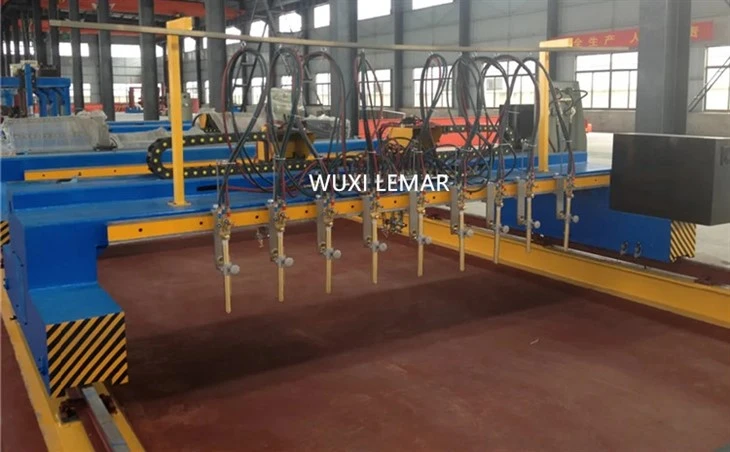

Cnc Multi Head Strip Cutting Machine

Main Features

1) Simple structure in linear type, easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization, no pollution

5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine.

Products parameters

1	horizontal track gauge	4000mm
2	effective cutting width	80-3100mm
3	track length	16000mm(customized,prepared by clients)
4	the effective cutting length	15000mm(customized according to track length)
5	cutting speed	50-1000mm/min
6	quick-return speed	4000mm/min
7	CNC cutting torch	1 group (one flame,one plasma) 9+1 groups of Straight strip cutting (optional)
8	cutting thickness	flame cutting:6-100mm Plasma cutting:6-25mm(optional according to plasma cutting thickness)
9	cutting gas	oxygen, acetylene or propane
10	accuracy	±0.5mm
11	the cutting surface roughness:	Ra12.5~25
12	drive	all-digital vector AC servo motor drive
13	Plasma power	CUT200(optional according to plasma cutting thickness)
14	the arc voltage to increase	Ang-Tai raised in Shenzhen
15	the servo motor	Panasonic AC Japan servo
16	servo drive	Panasonic
17	the planetary reducer	Humphrey
18	automatic gun	Wuxi longteng
19	the control contactor	Schneider
20	main components	Siemens

Products composition

product-750-464

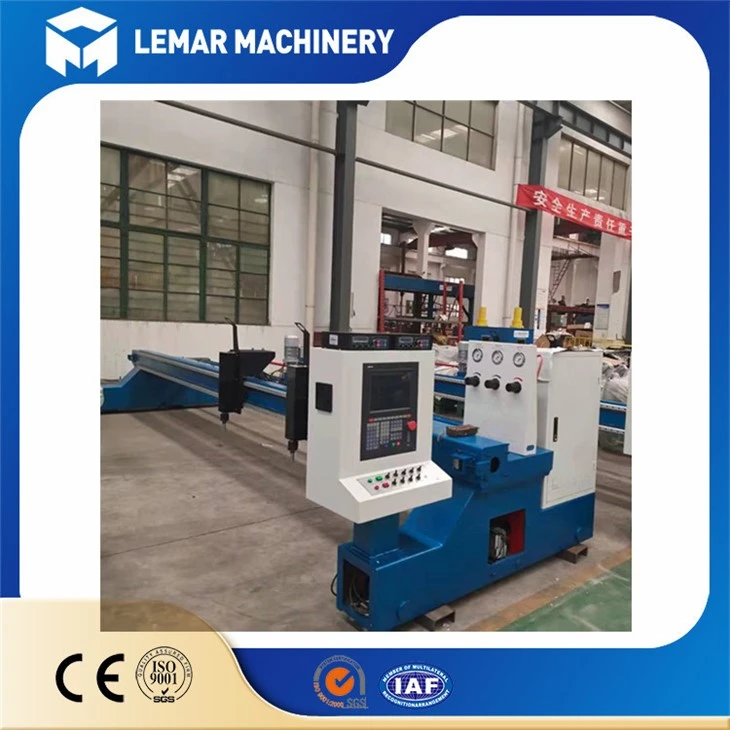

Cnc Multi Head Strip Cutting Machine

Electric control part:

Electric control part of the CNC cutting machine, CNC (the system optional), electrical, servo, three subsystems, and factory production control system of CNC cutting machine main parts are made of domestic and foreign well-known brand. System used module of structure, wiring simple, and reasonable, and specification, and maintenance convenient, due to large used scale IC, has volume small, performance stable, advantages; system also has fault history records, fault alarm, self diagnosis, effective to protection personnel and equipment of security; system has variety language menu (including Chinese), can is convenient of for interactive, has variety entered way, operation flexible party, also can and PC machine communications achieved automatically programming, Due to computer, greatly facilitate the users save time, ensure stable and reliable operation.

Numerical control systems:F2300 numerical control system

Note: the system for the domestic system of highest precision and cutting most of the compensation.
F2300 series CNC system is sidafeng by Shanghai roduced, features superior, reliable quality, supporting agile, able to meet the practical requirements of NC flame cutting machine, with a higher cost.

Model	Drive way	Two rails' distance (mm)	Effective cutting width (mm)	Cutting thickness (mm)		Cutting speed (mm/min)		Max speed (mm/min)	Cutting torch vertical route(mm)
Model	Drive way	Two rails' distance (mm)	Effective cutting width (mm)	Flame cutting	Plasma cutting	Flame cutting	Plasma cutting	Max speed (mm/min)	Cutting torch vertical route(mm)
CNCI-2700	Single side	2700	1800	6-200	Depending on plasma power model, optionla	100-750	Depending on plasma power model, optional	6000	200
CNCI-3000	Single side	3000	2100					6000	200
CNCI-4000	Single side	4000	3100					12000	200
CNCII-4000	Double sides	4000	3100					12000	200
CNCII-5000	Double sides	5000	4100					12000	200
CNCII-6000	Double sides	6000	5100					12000	200
CNCII-7000	Double sides	7000	6100					12000	200
CNCII-8000	Double sides	8000	7100					12000	200
CNCII-9000	Double sides	9000	8100					12000	200

Supply range and units:

(1) the rack Assembly for Gantry type plasma cutting machine: vertical big horizontal car, straight cutting torch guide rails, pipes, steel, hanger, drag chains, steel bodies;
(2) cutting torch Assembly with 1 set of CNC cutting torch, cutting torch adjustment;
(3)straight strip cutting 10 groups
(4) drive assembly : servo motor, high precision gear boxes, mobile gear, gear, etc;
(5) electronic control system : CNC, CNC box, keyboard, electric control box;
(6) cable assembly includes: CUT160 Plasma cutting ,arc voltage high
(7) the Assembly of the gas source : total air supply hose and thread blocks;
(8) spare parts :
Cutting nozzle 0-1# total 2*11(22)
X axis&Y-axis travel gear *1
Temper-proof device 5
Push button switch 5 only
DC-24V Relay 2 only

4A Molten core- 3

Users make self-contained parts :
(1) the thread frame, rail base (supplier's drawings).
(2) Foundation (drawings).
(3) the anchor bolt (or bolts).
(4) the rail assembly :16mx2 (24kg/m,length according to actual need) Rails, rack, plate and adjust the pad and so on;

product-750-750
