Introduction

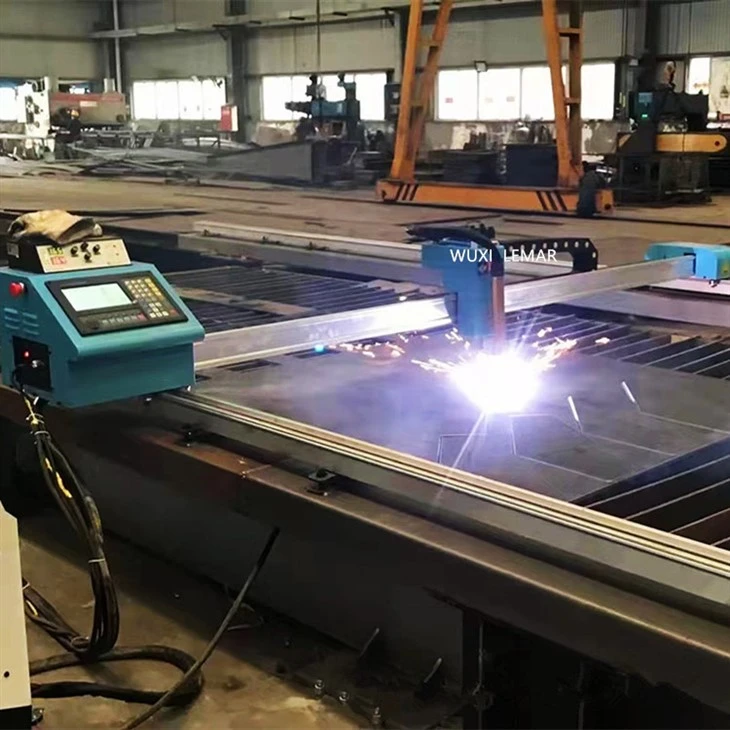

CNC Oxy Plasma Cutting Machine can cut any plane graphics. The whole machine adopts cantilever structure, driven by stepping motor, beautiful appearance and easy to move. It can be equipped with flame cutting torch or plasma cutting torch alone, or used simultaneously with flame and plasma cutting torch. It has the characteristics of high automation, convenient use, high precision, high reliability, low price, convenient operation and maintenance, etc. It is widely used in advertising , Automotive, electrical appliances and other industries power, machining. A variety of specifications and models to meet the different needs of customers.

Model: LGK 1530

Cutting area:1500mm width *3000mm length

Rail size:2100mm(X axis)*4000mm(Y axis)

Voltage: 110/220V , 50/60HZ,1phase

Current: DC

Control mode:CNC

Movement mode: stepper motor + rack and pinion + cylindrical guide

Working speed:100-3000mm/min

Plasma cutting thickness will be according plasma cutter(Item is not contain plasma cutter and plasma machine torch)

Installation area:3500*4000mm

Output current adjustment range:100A

Oversize:2200*3500mm

Net weight:150kg

Packing weight:50kg

Frequency:high frequency

Warranty:12months

Fast CAM Nesting software(CAD graphics or computer-drawn graphics can be converted into G codes, and the system automatically converts G codes into cutting programs to realize automatic intelligence).



System operation interface

Stepper motor

Plasma torch

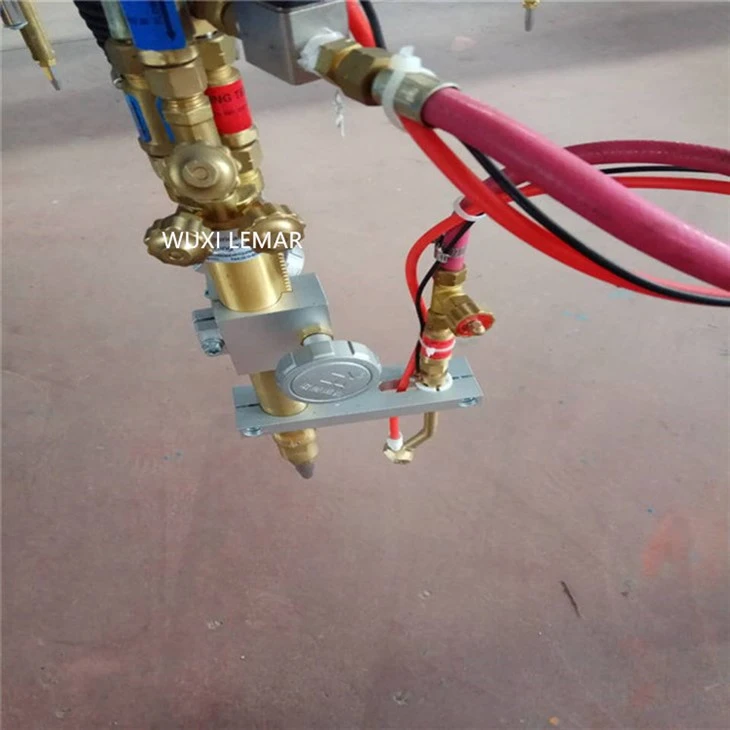

Flame cutting torch

(Note:The plug board is equipped with a 4-core plasma interface (arc starting and arc voltage detection).

If you do not choose to configure plasma, the equipment will still be equipped with a plasma interface to prepare for the subsequent increase of plasma cutting torches
