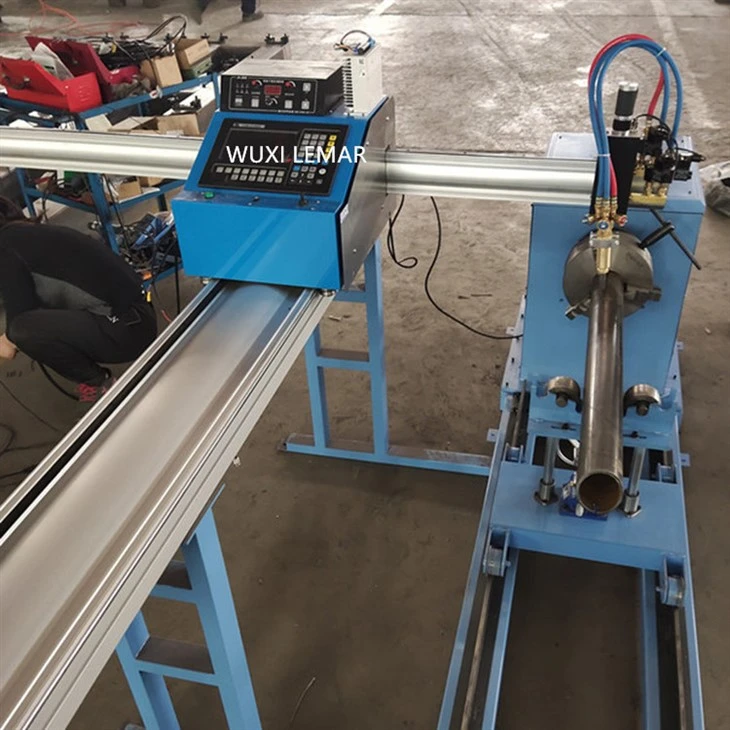

CNC Plasma Cutting Machine Portable

Introduction

CNC Plasma Cutting Machine Portable is small in size, and the main equipment is made of hard aluminum alloy, with good balance, light weight and perfect work. It is like a "small sports car" semi-automatic cutting machine, which can cut directly on the original steel plate. However, the function and efficiency of the bag cutting machine far surpass the semi-automatic cutting machine, and it can cut all kinds of strange shapes. Small space, low price, very convenient and flexible.

main components

Control System: Equipped with CNC software (such as based on PC or embedded system), it supports importing CAD drawings or G codes to automatically generate cutting paths.

Plasma Power Supply: Provides stable high-frequency current to generate high-temperature plasma arcs (up to 30,000 ° C).

Cutting Head and Guide Rail: Lightweight cutting head with guide rail or beam structure to achieve X/Y axis movement.

Mobile Platform: Some models are equipped with rollers or magnetic suction devices, which are convenient for direct cutting fixed to the surface of the workpiece.

Auxiliary System: Including air pump (providing compressed air or protective gas), cooling system, etc.

Products Parameters

Model:BXQ-2060

Effective cutting:2*6m

Outside size:2.6*6.5m

Cutting thickness:Flame cutting 5-200mm

Plasma cutting accords to plasma source

Cutting way:Flameand plasma

CNC System:Beijing FL 2300

Flame cutting	Plasma cutting
Main Voltage	AC220±10V 50Hz	Main Voltage	AC220±10V 50Hz
Input power	3.0KW	Input power	3.0KW
Working air source	Oxygen+gas(ethyne,propane)	Working air source	Air
Oxygen pressure	0.6-1.0Mpa	Air compressor	1 set(self-prepare)10Mpa
Gas pressure	0.04-0.1Mpa	Oil-water shunt	1 set(self-prepare)
Oxygen purity	≥99.6%	Plasma power voltage	AC380V±10V 50Hz
Environment temperature	-15ºC~50ºC

Products Description

Core Advantages

Portability: Compact size, weight is usually 20-50kg, can be easily transported to the construction site, workshop or outdoors.

Efficient and accurate: CNC control cutting path, the accuracy can reach ± 0.5mm, suitable for complex graphics and mass production.

Wide material adaptation: Can cut carbon steel, stainless steel, aluminum, copper and other conductive metals, the thickness range is usually 0.5-30 mm (depending on plasma power).

Low cost: Compared with laser cutting, equipment acquisition and maintenance costs are lower, and energy consumption is smaller.

Easy operation: User interface is friendly, support one-click operation, suitable for non-professional use.

Typical Application Scenarios

on-site maintenance: local cutting repair of large equipment such as ships, bridges, pipelines, etc.

Small processing plants: small batch production of metal artworks, advertising words, and sheet metal parts. Construction industry: rapid cutting of steel structures, door and window frames.

Automobile modification: processing of custom exhaust pipes and body parts.
