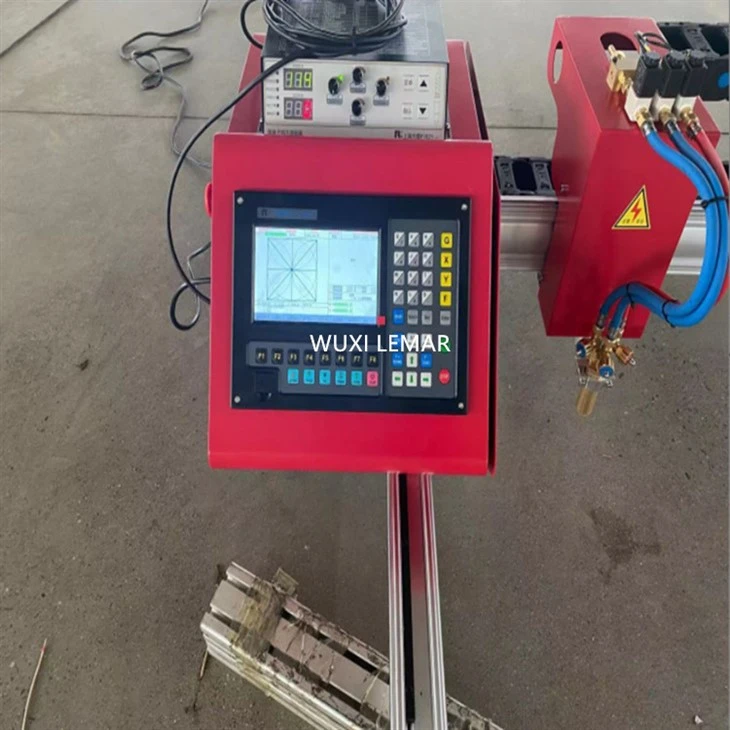

The portable CNC cutting machine is as flexible and convenient as other cutting equipment, can be moved at will, and does not occupy a fixed space. It is a numerical control plasma cutter specially used for sheet metal blanking. It is suitable for internal and external cutting, and can cut various metal materials according to any pattern.
Characteristics:
1. The base is assembled from high-strength aluminum alloy, with good stability, no deformation, and beautiful appearance.
2. The new combined chassis structure design, the cross arm and the main console, as well as the mechanical and numerical control parts can be decomposed and combined. The outside of the chassis is equipped with a USB interface, a control line interface, and a plasma arc interface to ensure the stable operation of the machine.
3. The beam is made of special aluminum alloy industrial profiles, which is light in weight and does not deform. The beam can be disassembled to facilitate on-site transfer, packaging and transportation, and to ensure that the verticality of the beam does not change
4. The more user-friendly main console directly faces the cutting site, which greatly broadens the working field of vision
5. The walking part adopts precision gear and rack transmission without backlash to ensure accuracy and eliminate backlash.
6. The motor adopts stepping motor drive technology, adopts high subdivision drive, high precision and stable operation
7. Crossbeam. The upper part of the stainless steel square tube is added to facilitate the fixation of the plasma cable and is more user-friendly.
Model specification | TPL-1625(Portable) | TPL-1630(Portable) | TPL-1640(Portable) |
Cutting range | 1600*2500(mm) | 1600*3000(mm) | 1600*3000(mm) |
Idle speed | 7m/min | ||
Cutting speed | 2-6m/min | ||
Cutting thickness | 1~30mm (plasma) (Note: depends on the size of the optional cutting power supply), 5~≥100mm (flame) | ||
Line drawing accuracy | 0.2m | ||
Operating Voltage | AC220/380V10% 50Hz | ||
Rated power | 300W(Does not include plasma power supply and air compressor) | ||
Current adjustment method | Continuously adjustable | ||
Air compressor specifications | Recommended air consumption≥180L/min, 6kg/cm2 | ||
Plasma power | According to product requirements, customers can choose plasma power supply, or purchase power supply by themselves. Take 100A as an example, AC380V, 10% 50Hz, 20KVW, load rate 60% | ||
