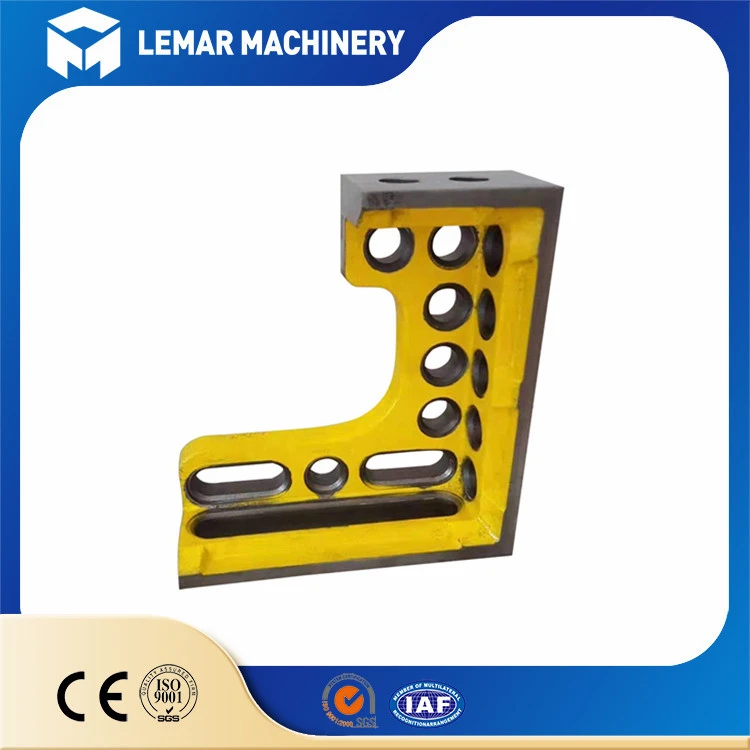

View of Welding table fixtures
3D welding table fixture is a modular chemical assembly system designed for complex welding tasks. It realizes high-precision fixation and quick adjustment of workpieces through multi-dimensional positioning (X/Y/Z axis and rotation angle), especially suitable for special-shaped structures, curved surface welding and industrial scenarios with high tolerance requirements.
Products Parameters
| Item | Parameter range |
| Countertop size | 1000×800mm~3000×6000mm |
| Bearing capacity | static1-10t,dynamic500-2000kg |
| Fixture adjustment angle | ±180°(Horizontal/vertical orientation) |
|
Temperature resistance |
long-term use≤600℃,short-term≤1200℃ |
Products Application
core application scenario
Welding of complex structures
Fixing of multi-angle welds for aerospace engine brackets, automobile body-in-white, and ship pipelines.
High-precision assembly
Pre-positioning of robot welding stations, zero-tolerance assembly of precision mechanical components.
Flexible production
Rapid replacement of small batches and multiple varieties of workpieces, reducing the development cost of special tooling
3D welding table fixtures are modular, high-precision, and omnidirectional positioning, making them an ideal solution for complex welding tasks. They are especially suitable for aerospace, automotive manufacturing, high-end equipment, and other fields, helping enterprises achieve flexible and cost-effective production.
