Modular 3D Welding Table Supporting Angle

We are always at your service when you need

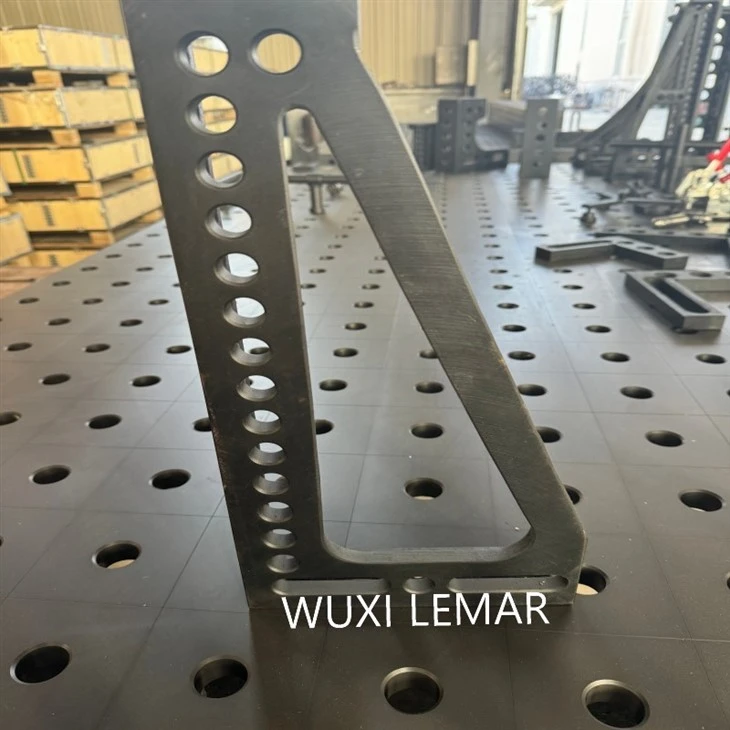

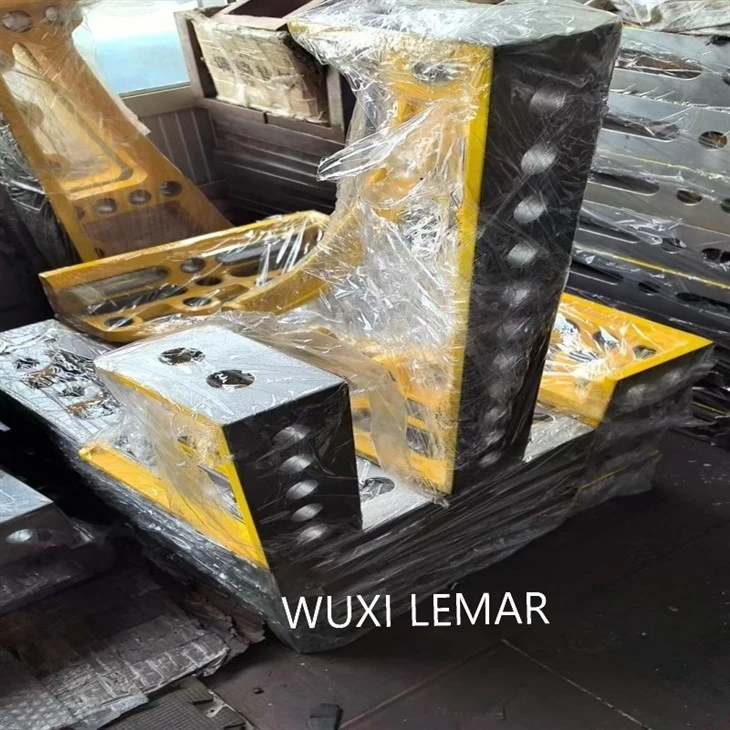

Modular 3D Welding Table Supporting Angle for D16 System is a reinforced supporting angle piece specifically designed for the modular welding workbench with D16 standard hole system. Its dimensions are 600mm×190mm×50mm. It is used to enhance the structural stability of the welding platform and provide additional clamping and positioning points, making it suitable for high-precision welding, assembly, and inspection applications.

Core technology

01.

Core functions
(1) Structural reinforcement
• Installed on the edge or corner of the welding workbench to enhance overall rigidity and reduce vibration deformation.
• Suitable for the bridging support of large welding platforms to prevent the tabletop from sagging.
(2) Extended clamping function
• Provide additional D16 standard holes, which can fix fixtures or positioning pins in the vertical direction.
• Support multi - angle clamping, suitable for welding complex workpieces (such as pipe fittings, special - shaped structures).
(3) Modular compatibility
• Seamlessly cooperate with the D16 system's welding tables, fixtures, and support columns for flexible combination.

02.

Design features
• High-strength steel: Resistant to impact and wear, suitable for the harsh workshop environment.
• Precision hole processing: Hole position tolerance is ±0.1mm to ensure positioning accuracy.
• Multi-functional installation: Can be fixed horizontally or vertically, supporting bolt or welding connections.
• Anti-rust treatment: The surface is galvanized or sprayed to extend the service life.
