Rapid Locking Bolt of High-Precision 3D Welding Table

We are always at your service when you need

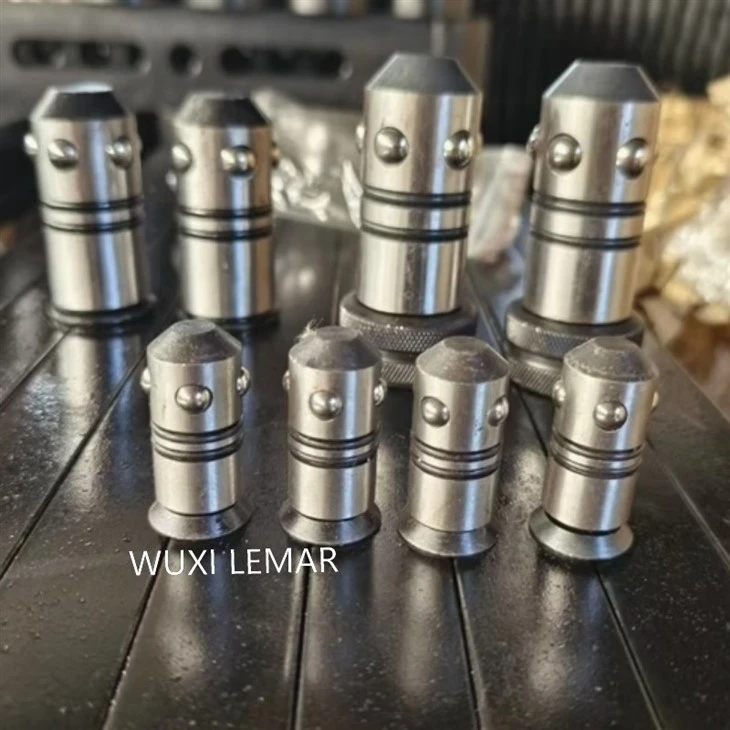

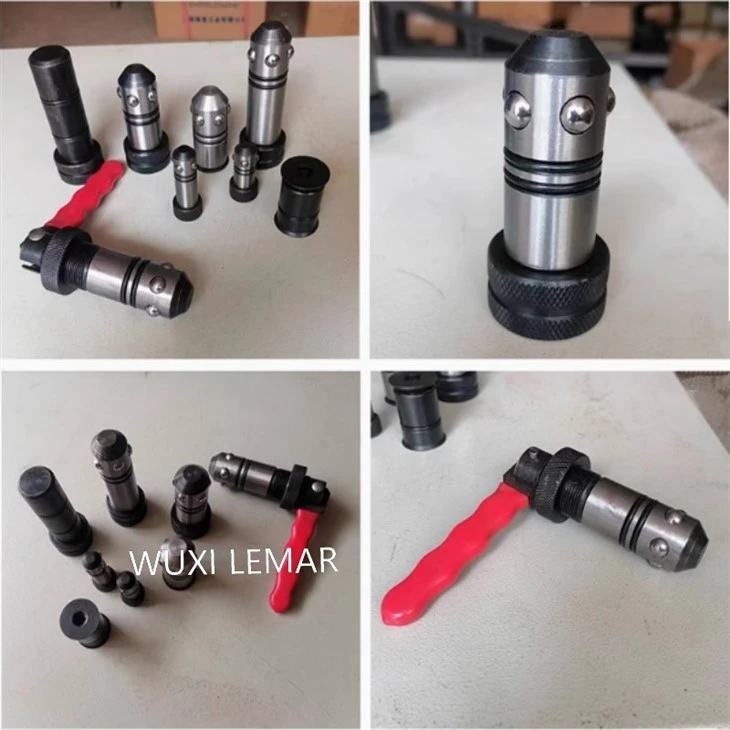

The Rapid Locking Pin is a fast - positioning and locking component specifically designed for high - precision 3D welding workbenches. It is used to achieve second - level positioning and fixation of modular fixtures, workpieces, or auxiliary tools. Its core features include single - hand operation, high repeatability accuracy (±0.01mm), and heavy - duty load - bearing capacity, which significantly improves the adjustment efficiency of welding fixtures.

services we offer

01.

Product repair service

02.

scheduled maintenance service

03.

installation instruction service

04.

programming instruction

Core technology

01.

Core functions
(1) Quick positioning and locking
• 1 - second operation: Achieve "press/rotate to lock" through a spring mechanism or lever device, saving 90% of the time compared to traditional bolts.
• Tactile feedback: There is an obvious "click" sound to indicate proper locking.
(2) High - precision repeat positioning
• Precision - ground pin body: The clearance with the D16/D28 hole system is ≤0.005mm, eliminating wobbling.
• Self - centering design: Automatically compensates for minor alignment errors.
(3) Heavy - duty load capacity
• Lateral shear resistance: ≥5kN (equivalent to a 500kgf lateral load).
• Vibration resistance: A special locking structure prevents loosening caused by welding vibrations.

02.

Maintenance and Selection Suggestions
• Regular Cleaning: Use an air gun to remove welding slag from the pin holes (recommended once every 8 hours).
• Lubrication and Maintenance: Apply high - temperature grease (such as molybdenum disulfide) every 3 months.
• Selection Key Points:
For frequent model changes, choose the spring - plunger type.
For heavy - duty loads, choose the lever - quick - release type.
For ultra - high precision, choose the model with threaded locking + conical surface positioning.
