Products Description

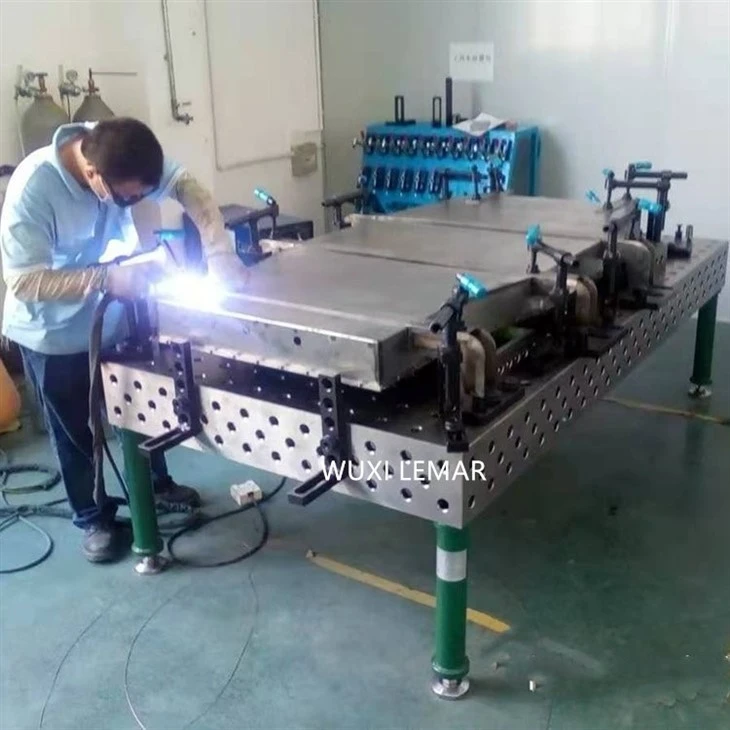

Plasma Nitration 3D Welding table is a newly emerging new type of welding platform. It is based on the five working surfaces of the standard hole grid and the front grid line work surface, and is equipped with various standard modules for positioning. Through pins The quick connection enables quick installation, positioning and quick clamping of workpieces of various shapes, and can realize random combinations in three-dimensional space and can be used repeatedly.
Benefits of Wuxi lemar 3D welding table
Hole distance 100±0.05mm;50±0.05mm
Casting/steel made, sturdy&durable
The larger the overall size, the greater the load-bearing capacity of the welding platform.
The overall weight of the welding tabel can be up to 7.5-8 tons.
Precise millimeter scale
There are millimeter scale marks on the edge of the 3D steel welding table.
Quickly position the fixture through the engraved lines without the need for a tape measure
Bottom Reinforced ribs
Reinforcing ribs are respectively located at the bottom of the 3D flexible tablel corresponding to the bottom end of the groove, which improves the structural strength of the table and helps prevent it from cracking due to excessive internal stress.
Products Features
1. 28 system and 16 system welding table can be easily extended and combined. The extended standard table tops can be modularly positioned and clamped directly together.
2. In the process of installing, adjusting and positioning the workpiece, the general functions of the flexible three-dimensional combined welding tooling system are fully demonstrated, especially in the application of large workpieces. There are various assembly methods, which can achieve almost the same positioning and clamping functions of any special clamp.
3. Fast assembly and easy assembly and disassembly; the three-dimensional flexible welding platform work surface can be assembled and combined according to the shape and size of the workpiece.
4. The design of the scale and module size on the table allows operators to quickly build the required tooling according to the size of the workpiece without using measuring tools.
