Products Parameters
| Item | Technical Parameter |
|---|---|
| Model | D16 / D28 Series |
| Material | HT300 Cast Iron/Q355 Steel |
| Hole Pitch | 50mm(D16) / 100mm(D28) |
| Hole Tolerance | ±0.05mm |
| Flatness | ≤0.1mm/m² |
| Max Load | 2000kg |
| Surface | Nitriding Hardened |
| Table Height | 620mm+200mm Adjustable |
Products Overview
Our 3D Flexible Welding Fixture Table details

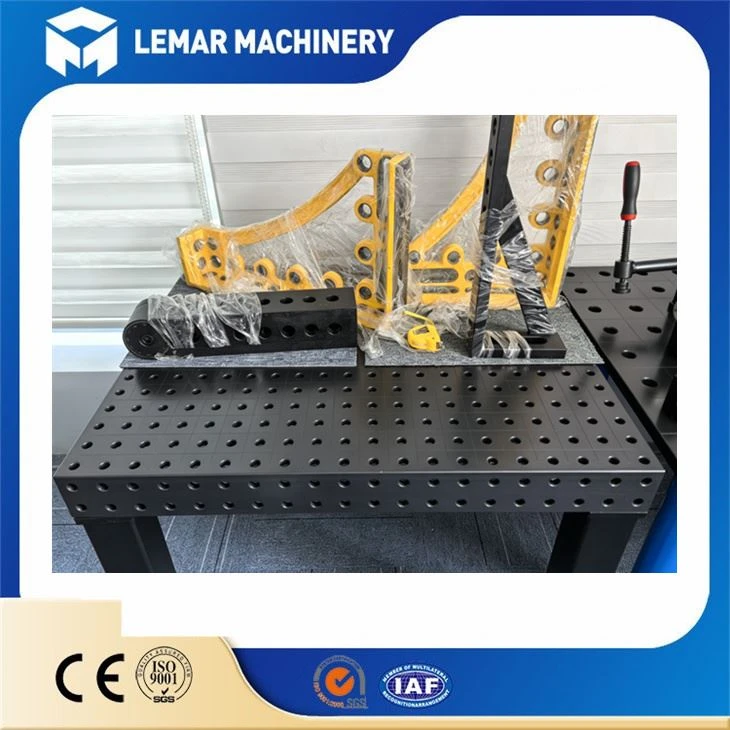

Our 3D Flexible Welding Fixture Table is an all-in-one modular welding platform built for professional fabricators, metal workshops, automotive factories and structural steel manufacturers.
01
Made with rigid honeycomb reinforced body and full five-sided grid hole layout, this 3D fixture system enables omnidirectional clamping, multi-angle positioning and rapid reconfiguration for workpieces of any shape.
02
All tabletops adopt nitriding anti-wear & anti-rust treatment, resisting welding spatter, high temperature and daily abrasion. No frequent surface polishing or anti-rust coating required, greatly lowering your long-term operation cost.
03
With stable ±0.05mm repetitive precision, this workbench works perfectly for manual welding stations and robotic automated production lines. Multiple tables can be spliced together freely to handle oversized workpieces.
04
Products Features
Core Features & Technical Superiorities
Choose the plan that suits you best.
Ultra Precise Grid Positioning
Standard D28/D16 grid holes with tight tolerance control, repeat positioning accuracy within ±0.05mm. Heavy load anti-deformation structure; less than 0.5mm deformation under 2-ton concentrated pressure to guarantee uniform welding quality.
Full 3D Modular Flexible System

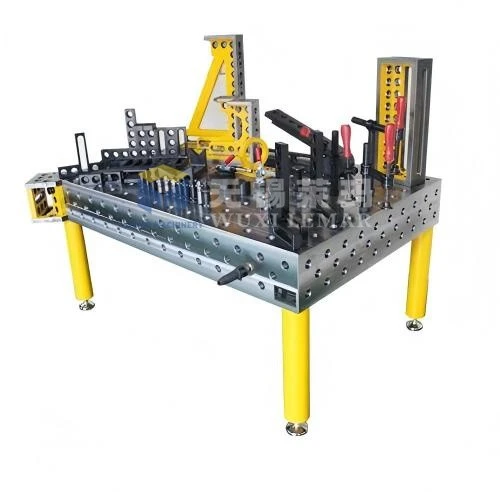

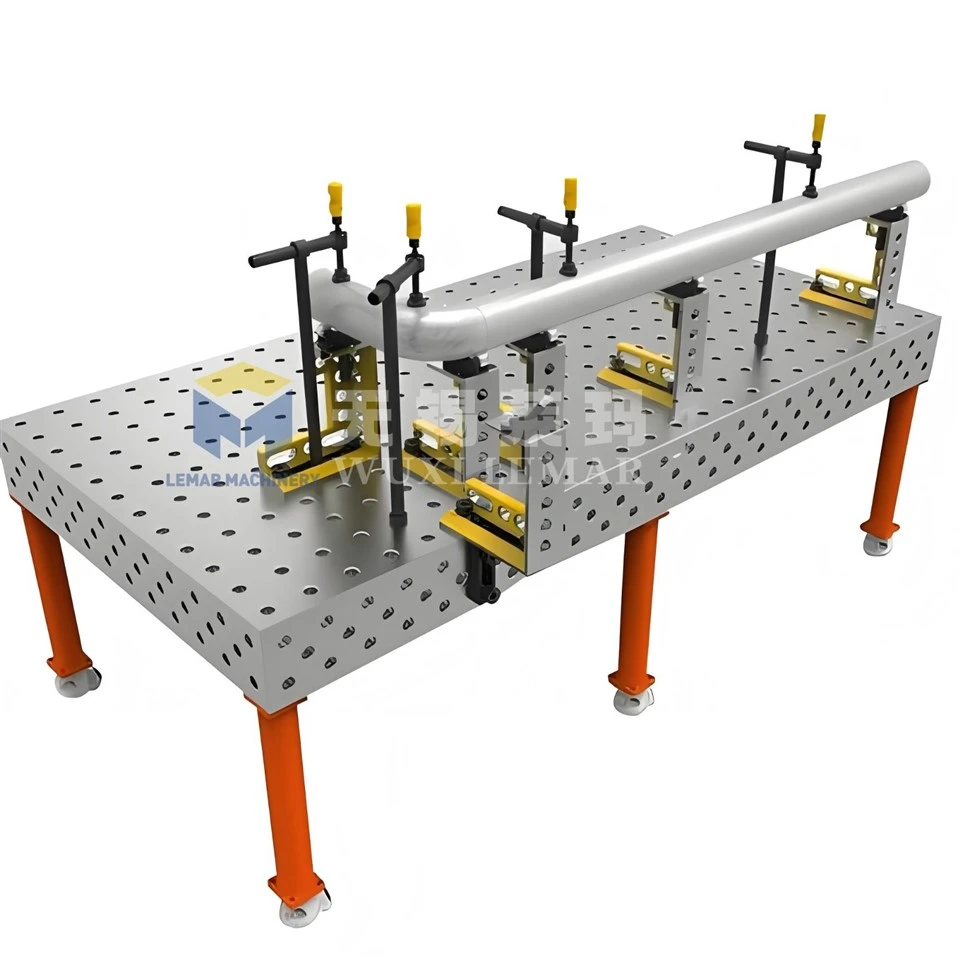

Complete series of matching accessories: quick clamps, positioning pins, angle blocks, extension brackets, V-blocks and connection plates. All parts are universally interchangeable, allowing unlimited free combination. Reconfigure fixtures within 5–15 minutes instead of days for custom jigs.
Five-Sided Perforated 3D Clamping Design
Top, front, back, left and right sides all equipped with standard locating holes. Realize multi-directional clamping without flipping workpieces repeatedly, support simultaneous multi-station welding to boost workshop throughput. Hollow tabletop easily discharges welding slag and dust for effortless cleaning.
Super Stable & Durable Body
Two material options: HT300 cast iron or Q355 high strength steel. Thickened rib reinforcement eliminates thermal deformation caused by long-time welding heat. Nitrided surface withstands high welding temperature, scratch and corrosion for years of heavy daily use.
Products Application
Our 3D flexible welding tables are widely applied in multi-industry metal welding and positioning operations. They are ideal for automobile chassis, motorcycle frames, new energy auto brackets, engineering machinery, elevator steel frames, and heavy steel structure fabrication.
The modular jig system perfectly matches automated robot welding stations, sheet metal cabinet production, pipeline fitting processing, agricultural machinery parts, railway vehicle components and container assembly.
With universal positioning accessories, this welding platform meets precise clamping demands of small precision hardware to large heavy metal workpieces across machinery manufacturing industries.
Products certification
Products Package
Customer Visit
Frequently Asked Questions
Q1:What is the difference between this 3D Flexible Welding Fixture Table and ordinary flat welding benches?
+
-
A1:Ordinary tables only support single-plane fixing, while our 5-sided perforated 3D system allows multi-angle 3D clamping. It can quickly adjust fixtures for irregular workpieces without custom jigs, greatly improving production flexibility and precision.
Q2:Can I splice multiple tables together for large workpieces?
+
-
A2: Yes. All tables adopt unified standard splicing holes, you can connect several tables side by side to form a large working platform for oversized frames and steel structures.
Q3:Is the tabletop resistant to welding spatter and rust?
+
-
A3: The table surface undergoes strict nitriding treatment, featuring high hardness, high temperature resistance, anti-spatter and anti-rust performance. It will not deform or rust under long-term welding operation.
Q4: Can I customize the table size and hole diameter?
+
-
A4: Custom length, width and height are supported. We provide D16 and D28 two standard hole sizes to match different load and fixture requirements.
Q5: Is this table compatible with welding robots?
+
-
A5: Absolutely. Its high-precision positioning and stable structure perfectly match automated robot welding stations for mass consistent production.
Q6: How long does it take to reconfigure fixtures for new workpieces?
+
-
A6: With full modular accessories, most new workpiece fixture layouts can be finished within 10 minutes, far faster than making new custom jigs.
