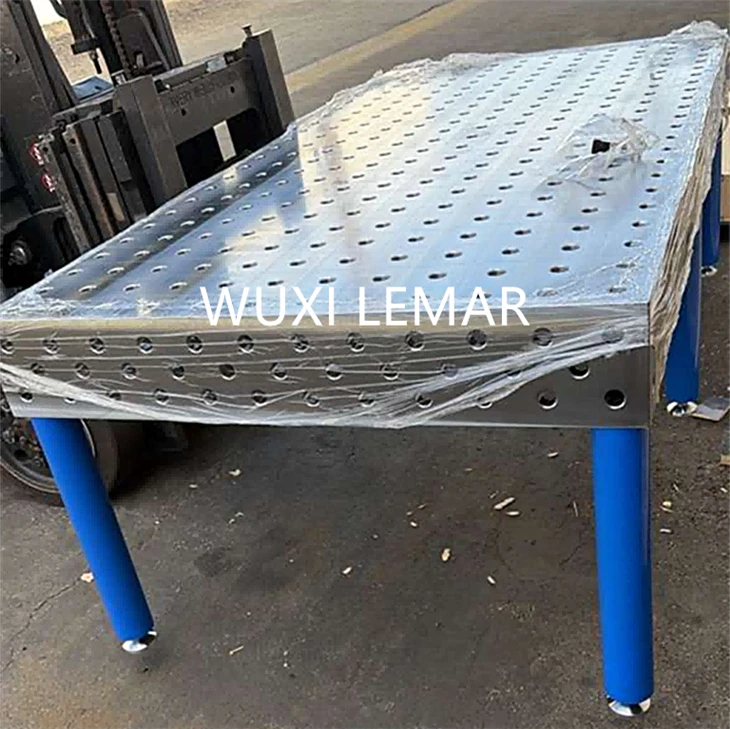

High Precision Welding Table 28mm Holes
--Achieve Unmatched Accuracy & Efficiency in Your Welding Operations--
Product Overview
This high-precision modular welding table features a standardized 28mm bore hole system (D28 series), designed for heavy-duty industrial applications.
Perfect for robotic welding cells, automotive fabrication, and complex structural assemblies.
high quality
advanced equipment
professional team
global shipping
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Name | High Precision 3D Modular Welding Table |
| Hole Series | D28 (28mm Bore Diameter) |

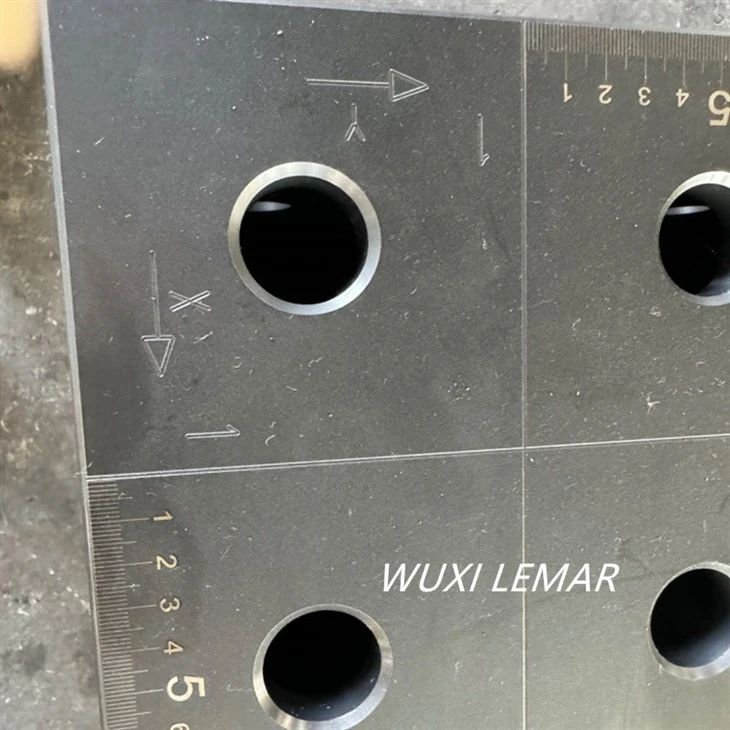

| Grid Spacing | 100mm × 100mm |
| Working Surface Flatness | ≤ 0.1mm/m² (ISO Standard) |
| Material | HT300 High-Strength Cast Iron / Q355 Steel (Optional) |
| Surface Treatment | Precision Milled + Surface Nitriding Hardening or Raw |
| Standard Thickness | 25mm (Customizable) |

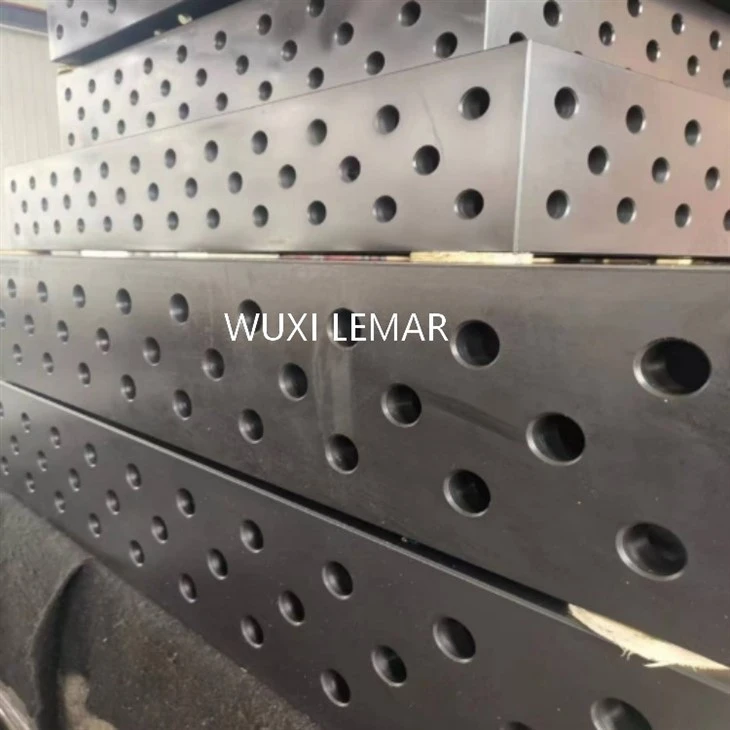

| Working Surfaces | 5 Working Surfaces (4 Sides + Top) |
| Locking Method | Quick Taper Locking Pin / Threaded Locking |
| Customization Service | Custom Sizes / Hole Patterns / Shapes Supported |
Our Service Processes
Our free service hotline:+86 159 952 699 47(Eva summer)
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receive
5
>>
After-sale Services
6
Why Choose Our 28mm High Precision Welding Table?
🔧 Ultra-precise for guaranteed welding quality
Table flatness is controlled within **0.1 mm/m²**, ensuring accurate workpiece positioning, significantly reducing welding distortion, and improving product consistency.
🔩 Standardized 28 mm holes for high compatibility
The D28 hole system (28 mm diameter, 100 mm pitch) is an **international standard** in heavy industry, compatible with most mainstream fixtures, supports and locating pins on the market.
⚙️ High-strength materials for long service life
Made of high-quality **HT300 cast iron** or high-strength steel, stabilized by aging treatment to relieve internal stress.If choose surface treatment, nitrided hardened surface resists welding spatter and wear, with a service life of **more than 10 years**.
🧩 5 working surfaces for unlimited flexible expansion
Positioning holes are distributed on the top and four sides, enabling 3D clamping. Multiple tables can be seamlessly spliced to handle **oversized workpieces**.
🚀 Fast changeover for higher efficiency
Eliminates long lead times for traditional welding fixtures. Modular design allows quick fixture setup and changeover like building blocks, reducing changeover time from **days to minutes**.
Product Applications
Widely Used in Various Industrial Sectors
Scenario 1
Robotic Automated Welding: Serves as the reference platform for robotic workstations, ensuring repeat positioning accuracy.
01
Scenario 2
Automotive Manufacturing: Used for welding fixtures of automotive chassis, subframes, and body components.
02
Scenario 3
Construction Machinery: Assembly and welding of large structural parts such as excavator booms and loader components.
03
Scenario 4
Rail Transit: Precision welding fixtures for high-speed rail carriage parts and track supports.
04
Scenario 5
Sheet Metal Processing: Positioning and assembly of chassis, cabinets and precision sheet metal parts.
05
Complete Your Fixturing System--
1.Quick Locking Pins (Taper Sleeve Type / Thread Type)
2.U-style Boxes / Support Angle Plates
3.Parallel Blocks / V-blocks
4.Various Clamps (Push-Pull Type / Screw Type)
5.Magnetic Bases / Extension Arms
Advantages of WUXI LEMAR
Your Trusted Partner in Modular Fixturing Solutions
Our Factory Strength
Over 16 years of manufacturing experience Specialized in R&D and production of 3D flexible welding tables, serving more than 2,000 customers worldwide.
Full-process CNC machining Equipped with large-scale 5-axis gantry milling machines to guarantee the position and perpendicularity of every hole.
One-stop supporting service We provide not only welding tables but also a complete set of fixtures, supporting accessories and 3D CAD models.
Strong customization capability Custom non-standard and special-shaped tables are available according to your specific workpiece requirements.
Related Certification
Products Packaging
OUR WELDING TABLE Packaging & Shipping
◆Wooden case meet export standards
◆Sea freight preferred for heavy tables
◆FOB / CIF / CFR terms available
fAQ Of our product
FAQ
01.Do you have a Made-in-China profile?
Yes, we are also listed on Made-in-China as a verified supplier(Wuxi Lemar Machinery Equipments Co., Ltd.).
We operate both our independent website and international B2B platforms to support different customer preferences.
02.What is your warranty policy?
A: We offer a 3-year warranty on all our welding tables. This covers any manufacturing defects in materials or workmanship. Our after-sales team is available 24/7 to assist with any technical issues.
03.Do you offer starter kits with essential clamps and accessories?
04.What is the minimum order quantity (MOQ)?
05.What is the typical lead time?
A: Lead times depend on the order:
Standard sizes: Usually 15-25 days after receiving deposit.
Custom orders: Typically 25-35 days, depending on complexity.
Urgent orders: Please contact us to discuss expedited shipping options.
06.Can I get a sample or visit your factory before placing a bulk order?
