Fixture Weld Table
Fixture Weld Table is a modular and high-precision welding auxiliary equipment, mainly used for the positioning, clamping, and welding of metal structural parts (such as steel structures, mechanical parts, automotive components, etc.). It adopts a standardized hole system and modular fixture system, making the welding work more efficient and precise, and is suitable for both mass production and customized welding requirements.
Products Parameters
product Specification
Lemar Best Products
Main components

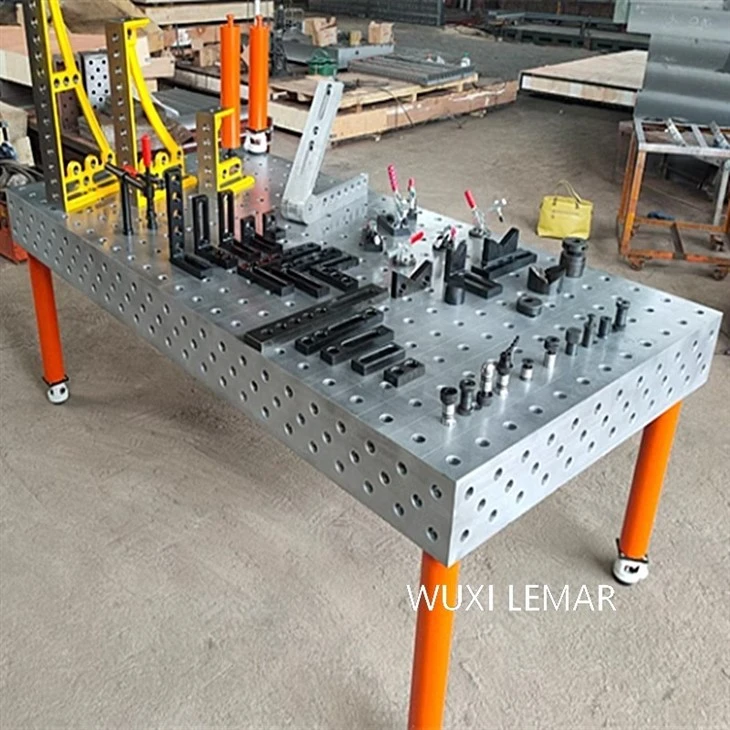

✅ Modular design – Fixtures, locating blocks, and support elements can be freely combined to adapt to different workpiece shapes.

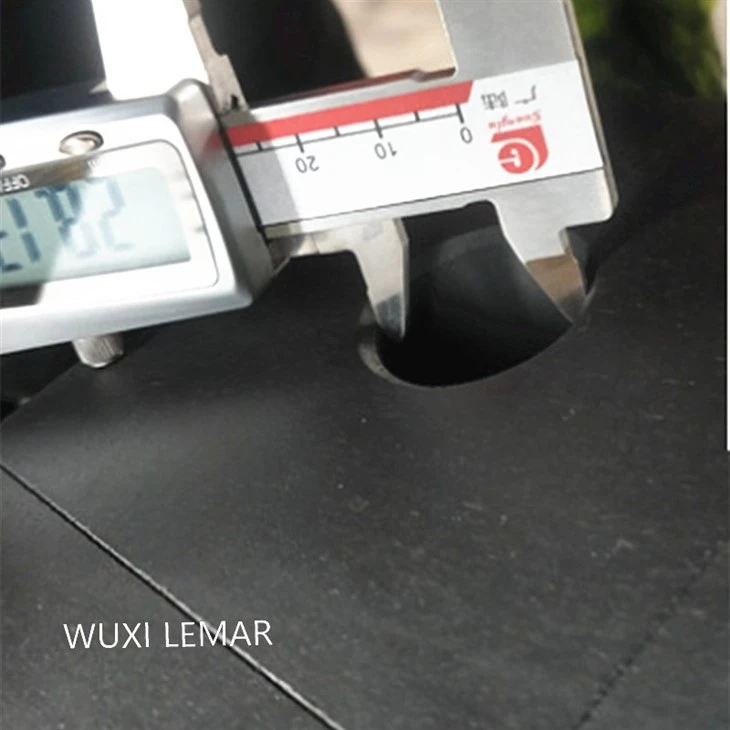

✅ High-precision positioning – Precision machined hole systems (such as D28, D16, etc.) are used to ensure repeat positioning accuracy (±0.1mm).
✅ Quick clamping – Use quick clamping devices (lever clamps, bolt clamps, magnetic clamps, etc.) to reduce adjustment time.
✅ Three-dimensional adjustment – The workpiece position can be adjusted in the X, Y, and Z directions to meet complex welding requirements.
✅ Strong durability – Made of high-strength steel (such as Q235, S355JR) or cast iron, it is resistant to high temperatures and deformation.
✅ Versatile applications – It can be used not only for welding but also for processes such as assembly, inspection, and drilling.
Products Precautions
Tips for Use and Maintenance
⚠ Check if the fixture is stable before use to prevent loosening during welding.
⚠ Regularly clean the welding slag to avoid blocking the positioning holes.
⚠ Avoid overloading to prevent deformation of the tabletop.
⚠ Apply anti-rust oil after use to extend the service life.
Summary
Fixture Weld Table is an ideal equipment for modern welding workshops, especially suitable for welding tasks that require high precision and high efficiency. Its modular design and quick clamping system can significantly improve production efficiency and reduce manual adjustment time, making it an important tool for intelligent manufacturing and flexible production.
