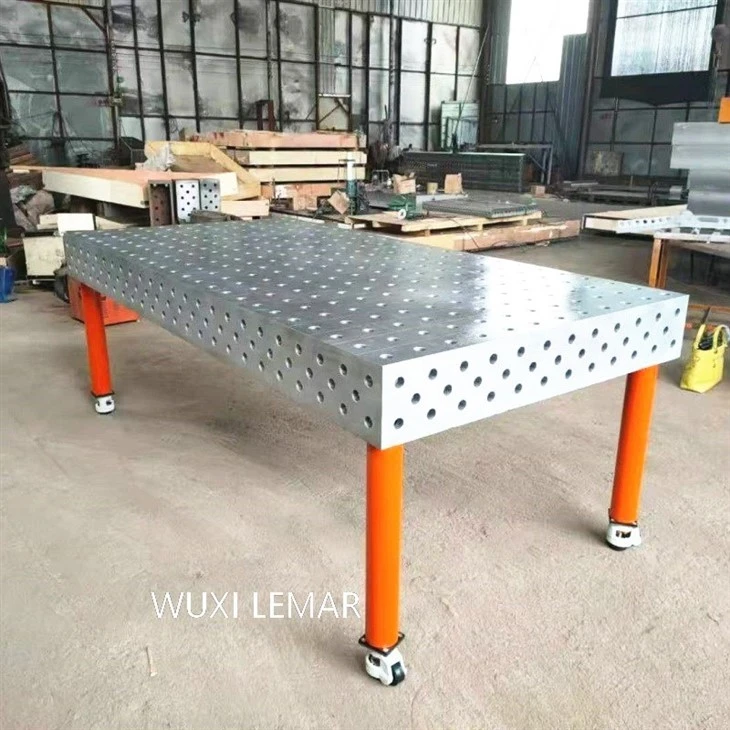

Steel Welding Fixture Table
Definition and Usage Definition:
Steel Welding Fixture Table specifically designed for the welding process. It is usually made of high-strength steel (such as carbon steel or stainless steel), with a standardized hole array or groove system on the surface, used for quickly positioning and clamping workpieces, fixtures, or auxiliary tools.
Usage:
1.Improve welding accuracy and repeatability, and reduce manual measurement errors.
2.Adapt to various workpiece shapes, suitable for small-batch customization or large-scale production.
3.Commonly seen in industries such as automotive manufacturing, aerospace, and metal processing.
Products Parameters
product Specification
Lemar Best Products
Core Structure and Composition

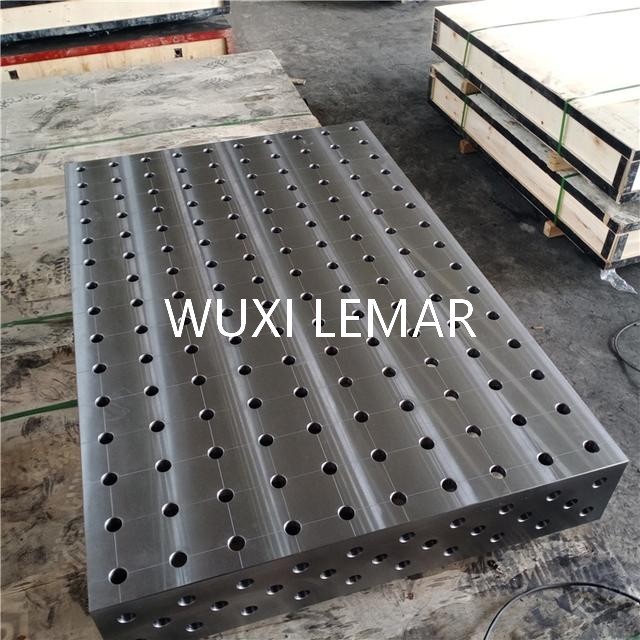

Worktable Surface:
Material: Usually quenched high-carbon steel (such as S45C) or stainless steel, with a thickness of over 30mm to ensure wear resistance and anti-deformation. Hole Array Design: DIN/ISO standard grid holes (such as φ28mm or φ16mm) are adopted, and the hole pitch is usually 50mm, 100mm, etc., which is compatible with modular fixtures.
T-Slots: Some models are equipped with T-slots for fixing large workpieces or heavy-duty fixtures.
Support Frame:
Welded by rectangular steel pipes, with possible internal reinforcement ribs, and the static load capacity can reach several tons.
Optional shock-absorbing feet or horizontal adjustment devices are available to adapt to uneven ground.

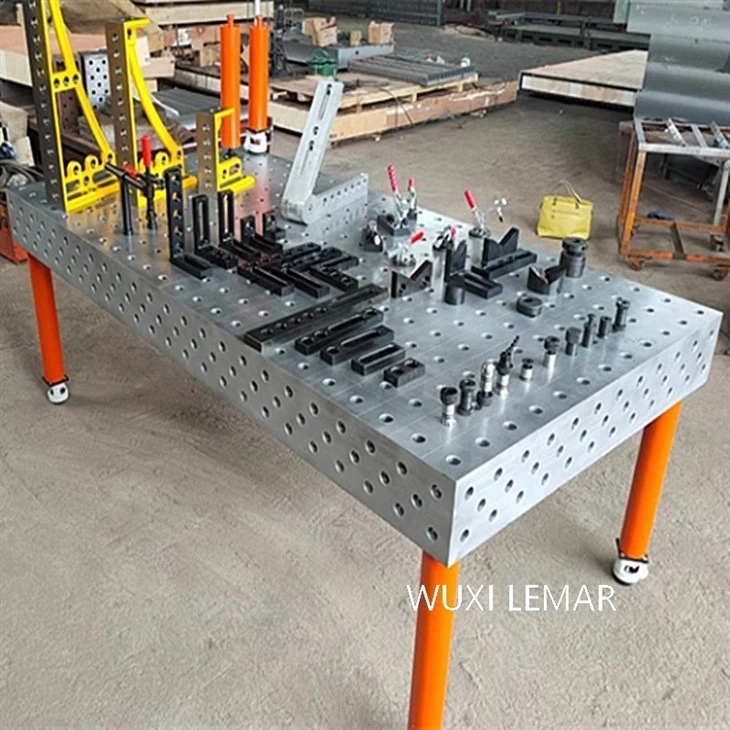

Accessory System:
Fixture Modules: Quick clamps, angle positioning blocks, V-blocks, etc.
Auxiliary Tools: Welding ground clamps, cooling pipe brackets, and installation positions for protective screens.
Maintenance and Upgrade Daily Maintenance:
☆Regularly clean Steel Welding Fixture Table with rust inhibitor to avoid the accumulation of welding slag.
☆Upgrade Options: A numerical control positioning system (such as a servo - driven fixture) can be installed later.
