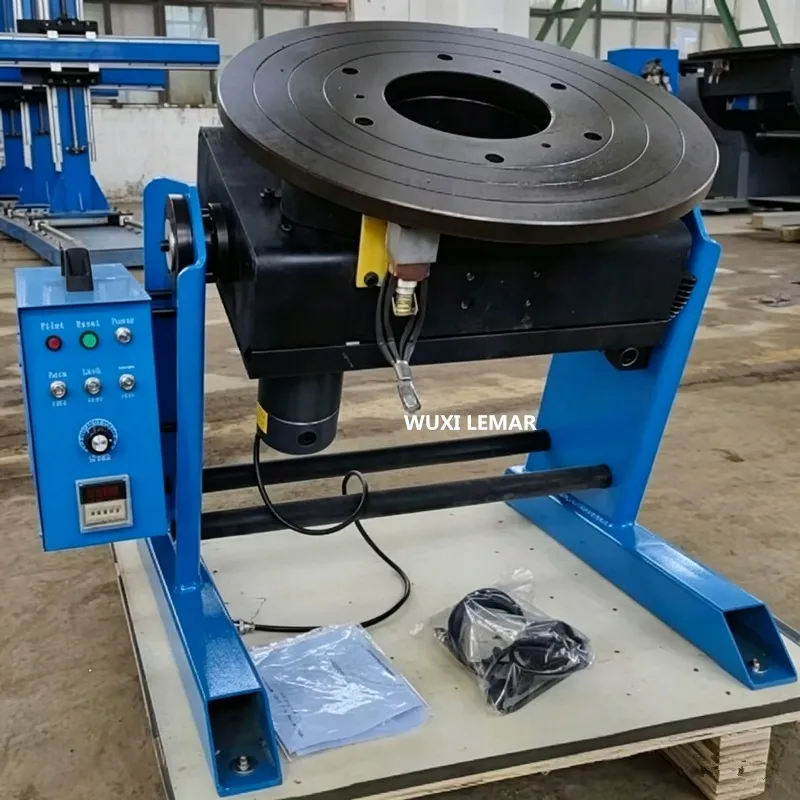

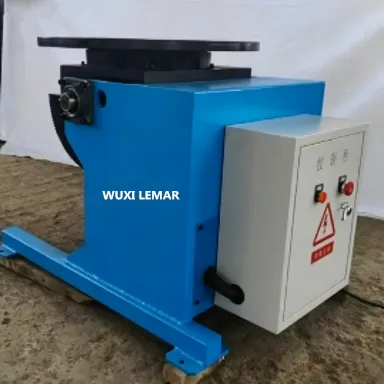

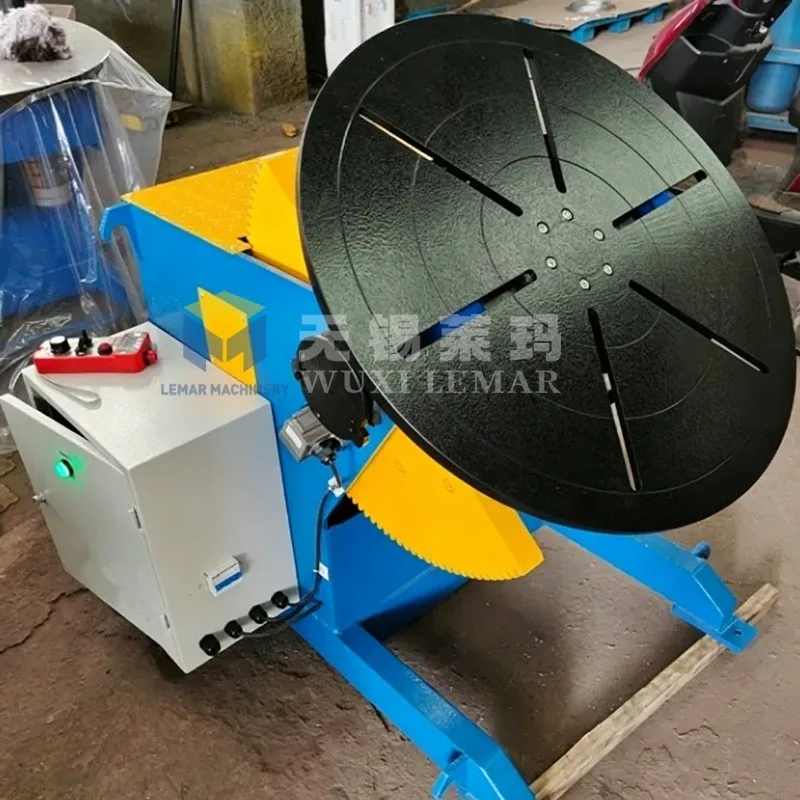

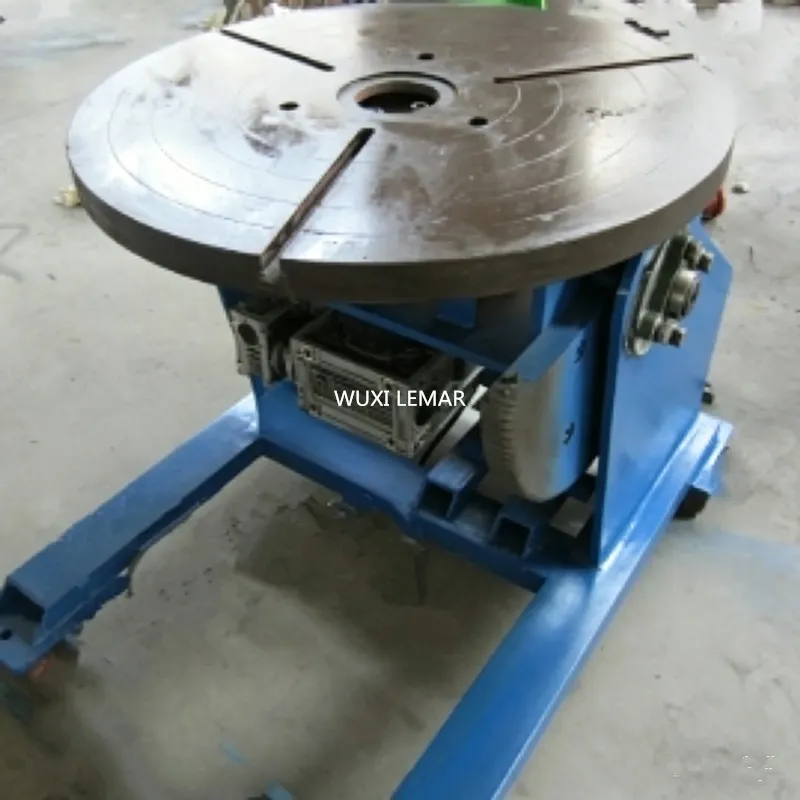

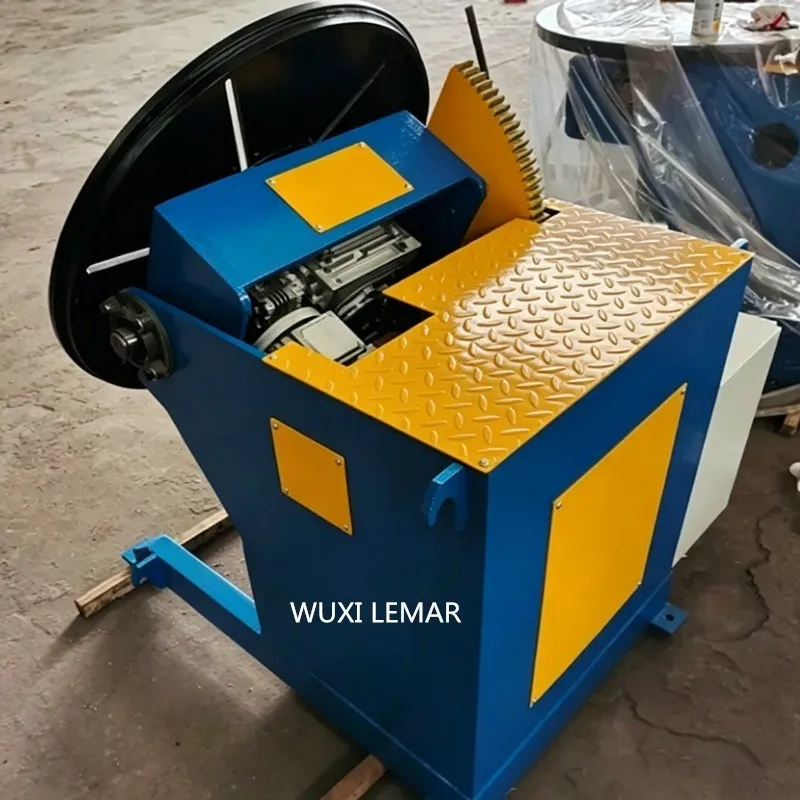

600kg Welding Turntable VFD Speed for Pressure Vessel & Pipe Welding
Product Overview
This 600kg welding positioner is designed for circular seam welding of medium and heavy pipes, flanges and pressure vessels. Equipped with VFD speed control and worm gear tilting structure, it features stable rotation and precise positioning, greatly improving welding quality and efficiency.
Anti-interference: Special circuit design reduces high-frequency interference for neat weld beads.
Auto Integration: Compatible with manipulators and rotators to form automatic welding lines.

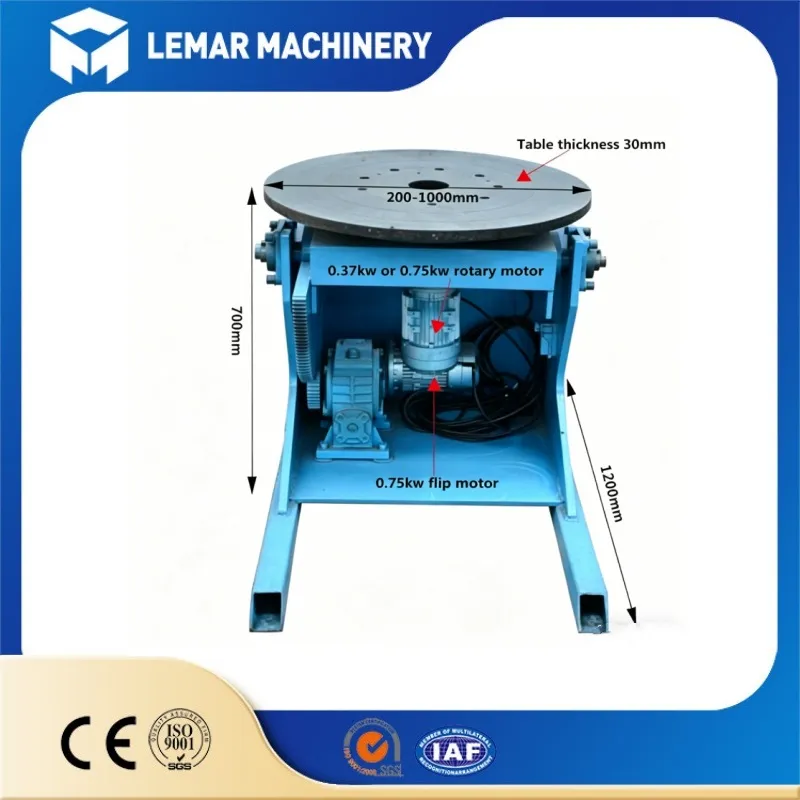

Technical Specifications
| Item | Parameter |
|---|---|
| Rated Load | 600kg |
| Table Diameter | 1000mm |
| Rotation Speed | 0.05~0.5 rpm |
| Tilting Angle | 0~90° |
| Voltage | AC 380V / 50Hz |
| Control | Panel + Pedal + Handheld Remote Control |
| Material | Carbon Steel |
Key Features
VFD Speed Control
360° stepless rotation with stable running for various welding speeds.

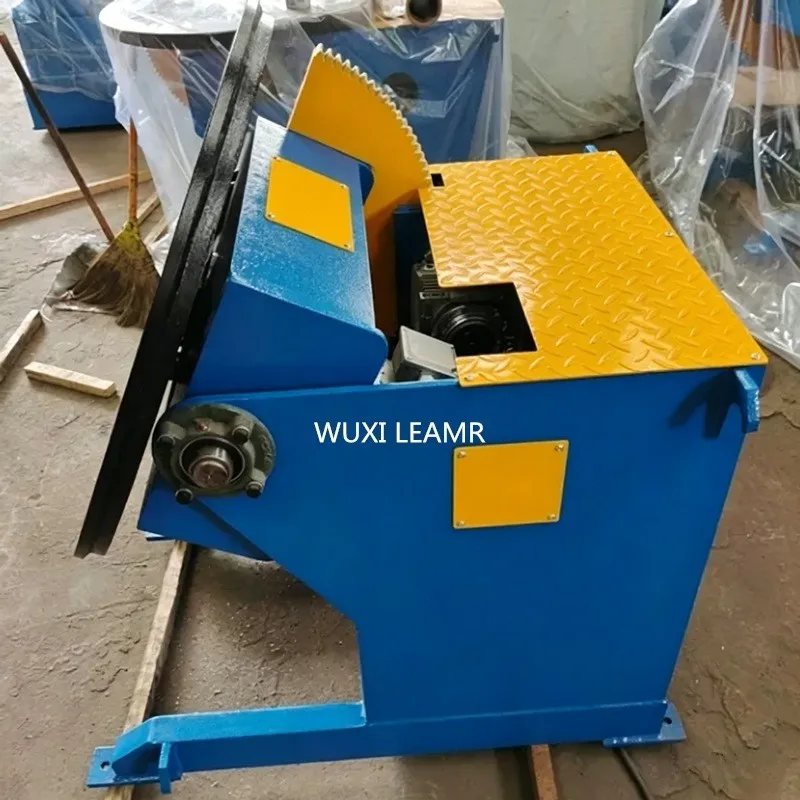

Adjustable Tilting
0-90° electric tilting with worm gear self-lock for safe and accurate positioning.
Robust Structure
Thickened steel frame ensures strong load capacity and long-time continuous work.
Dual Control
Panel and foot pedal dual operation for easy and labor-saving use
Quality Control
- Strict inspection for raw steel and core components.
- CNC precision machining for key parts.
- 600kg full-load test and long-time aging test.
- Complete debugging for electric and frequency conversion system.
- Repeated test for tilting and self-locking function.
- Overall performance and appearance check before delivery.
Application Scope
Pipeline Engineering
Perform reliable girth welding for thick-wall pipes and large-diameter flanges in pipeline construction projects
Mechanical Fabrication
Handle rotary welding jobs for heavy cylindrical components and industrial structural parts
Vessel Manufacturing
Complete circular seam welding for tank heads and medium-heavy pressure vessel shells

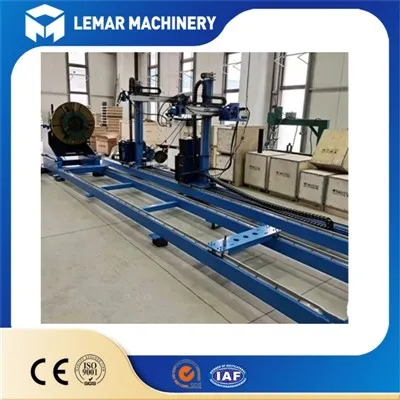

Automated Workshop
Cooperate with other welding machines to realize standardized and high-efficiency batch production
Product packaging
Company Certification
FAQ
Q:What is the rated load of this machine?
A: The rated horizontal load is 600kg, for medium-heavy duty workpieces.
Q:Is the tilting function electric?
A: Yes, it adopts full electric tilting with worm gear self-locking.
Q:What control ways are available?
A: Support panel, foot pedal and remote control three modes.
Q:Can it work with other welding equipment?
A: Definitely. It can be combined with manipulators and rotators.
Q:What about after-sales service?
A: 12 months warranty for main unit, English manual and technical support provided.
Q:Does it support variable speed operation?
A: Yes, it is equipped with VFD system for stepless speed adjustment.
