Product Overview

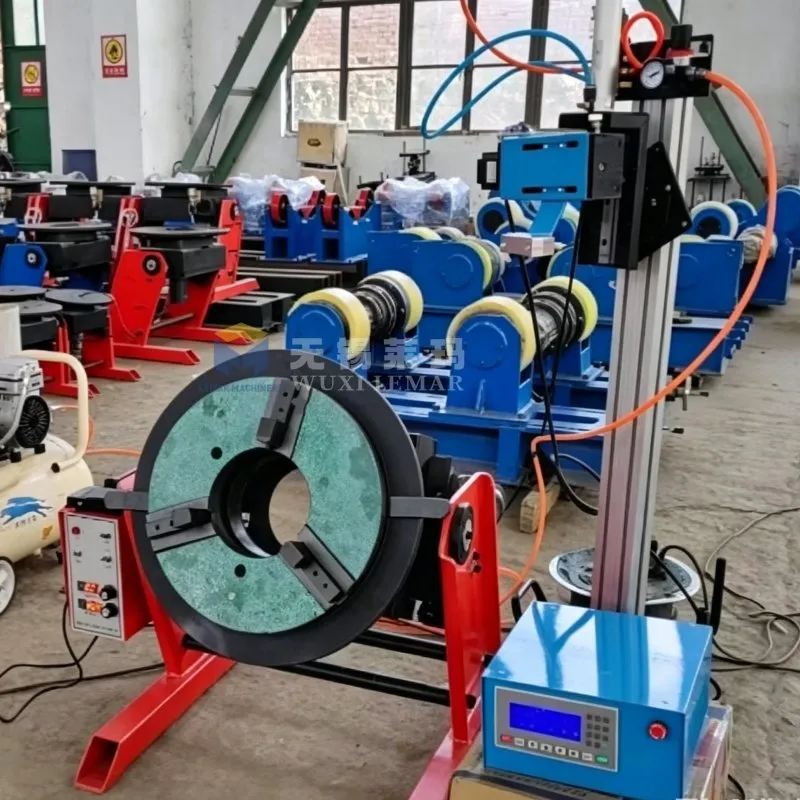

300kg welding positioner is a practical auxiliary machine for circular welding work. It helps rotate and tilt workpieces to the optimal welding position, effectively improving working efficiency and weld finish.
Structure & Performance
Built with thick steel structure, it bears 300kg load steadily. VFD stepless speed control guarantees smooth rotation. Worm gear self-locking tilting mechanism ensures safe operation during work.
Technical Specifications
| Item | Specification |
|---|---|
| Max Load | 300kg |
| Table Diameter | Φ500mm |
| Rotation Speed | 0.25~6rpm, stepless variable frequency |
| Tilting Angle | 0°~90° |
| Tilting Mode | Manual Tilting |
| Control Mode | Panel + Foot Pedal |
| Power Supply | 380V/220V, 50/60Hz (Customizable) |
| Center Bore | Φ170mm |
| Overall Dimension | 800×650×720mm |
| Machine Weight | About 280kg |
Product Features
Stable Load Capacity
Heavy-duty steel structure, stable bearing for 300kg workpieces, no shaking during long-time welding.
VFD Stepless Speed Regulation
Frequency conversion drive, smooth rotation, adjustable speed to match different welding processes.

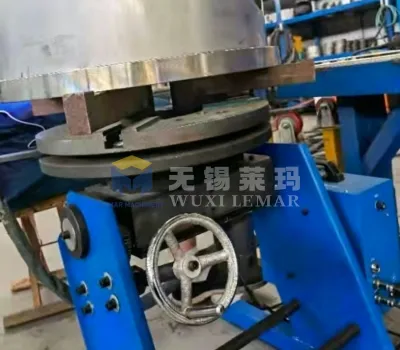

Self-locking Tilting Mechanism
Worm gear self-locking design, the table can be locked at any angle from 0° to 90°, safe and reliable.
Dual Control System
Equipped with control panel and foot pedal, easy operation, save labor and improve working efficiency.
Quality Control
Raw Material Inspection
All steel materials and core accessories are strictly screened and inspected to ensure qualified basic quality.
Precision Machining
Key parts are processed by CNC equipment to ensure precise assembly and overall structural stability.
Full Load Testing
Each machine undergoes 300kg full-load test and long-time aging test to ensure stable operation.
Electrical System Debugging
Calibrate frequency conversion and circuit system with anti-interference design for stable welding operation.
Angle & Locking Test
Detect 0-90° tilting and self-locking performance to ensure accurate positioning and safe use.
Finished Product Inspection
Comprehensive check on appearance and performance, only qualified products are delivered.
Working Principle
Driven by variable frequency motor and worm gear transmission, the 300kg welding positioner realizes stable 360° uniform rotation. The 0-90° tilting function adjusts workpieces to the optimal welding angle, converting difficult overhead welding into flat welding, which simplifies operation and ensures neat weld beads.

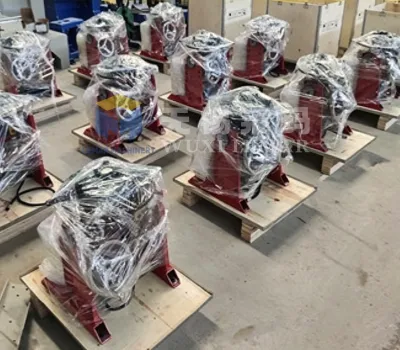

Product packaging
Company Certification
Customer feedback
What is the maximum load of this positioner?
+
-
A: Rated load is 300kg, suitable for medium-sized welding workpieces.
Is the rotation speed adjustable?
+
-
A: Yes. It adopts VFD stepless speed control, rotation speed 0.25~6rpm adjustable.
What is the tilting range?
+
-
Tilting angle: 0°~90°, manual tilting with self-locking function.

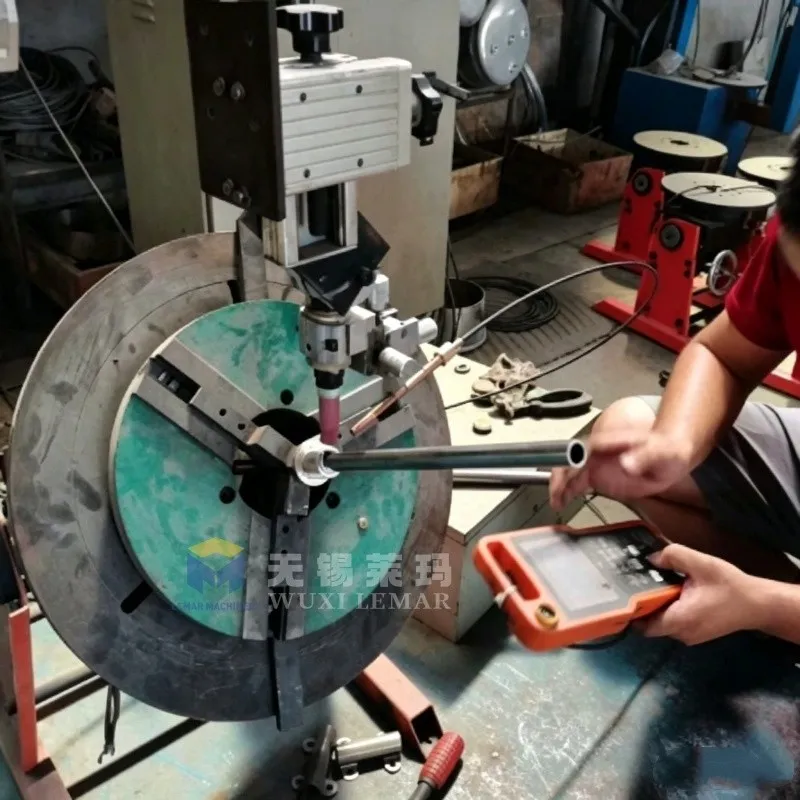

Can it work with automatic welding machines?
+
-
Sure. It can match welding manipulators, rotators and various welders for automatic production.
Can voltage be customized?
+
-
A: We support 220V/380V, 50/60Hz according to different countries.
