Product Description:

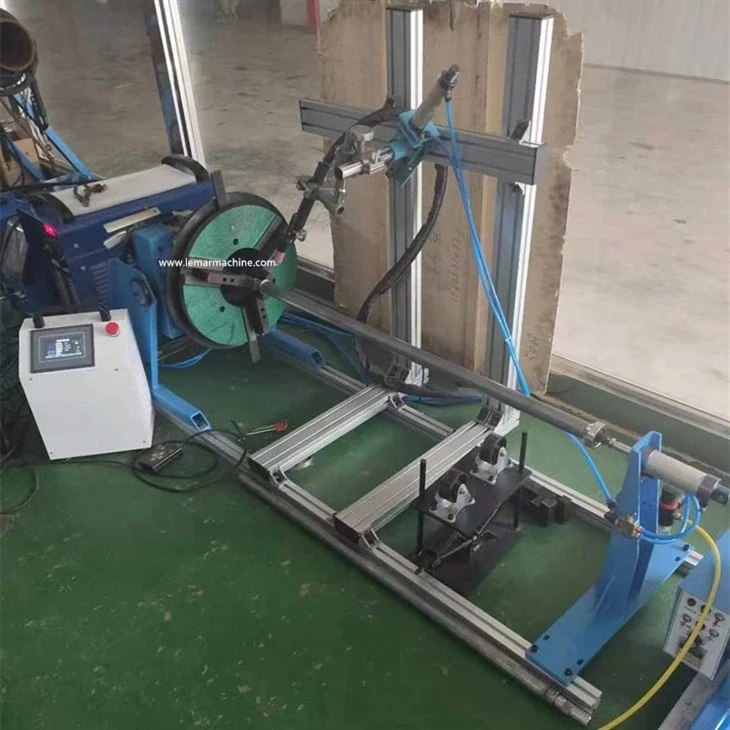

Rotary combined positioner is based on the Welding Positioner Turntable, with a three-jaw chuck, guide rails and pneumatic top to fix the position of the welding torch and realize the automatic clamping function of the workpiece. The controller installed at the same time can control the rotation of the workbench and the synchronous opening of the welding gun switch, and can realize automatic control of the welding time.
All accessories of this combined bench positioner can follow the turning of the workbench, and can realize the free adjustment of the welding torch or cutting torch up and down, left and right, front and back and rotating.
3 jaw chuck and pneumatic top are used to clamp and position the workpiece to ensure the positioning accuracy of the workpiece and welding or cut quality.
Through the rotation and flipping of the workbench, the workpiece is placed in the best welding or assembly position to achieve automatic or semi-automatic welding or cutting; the equipment can also be used as a robot peripheral positioner to match the robot.
Product list:

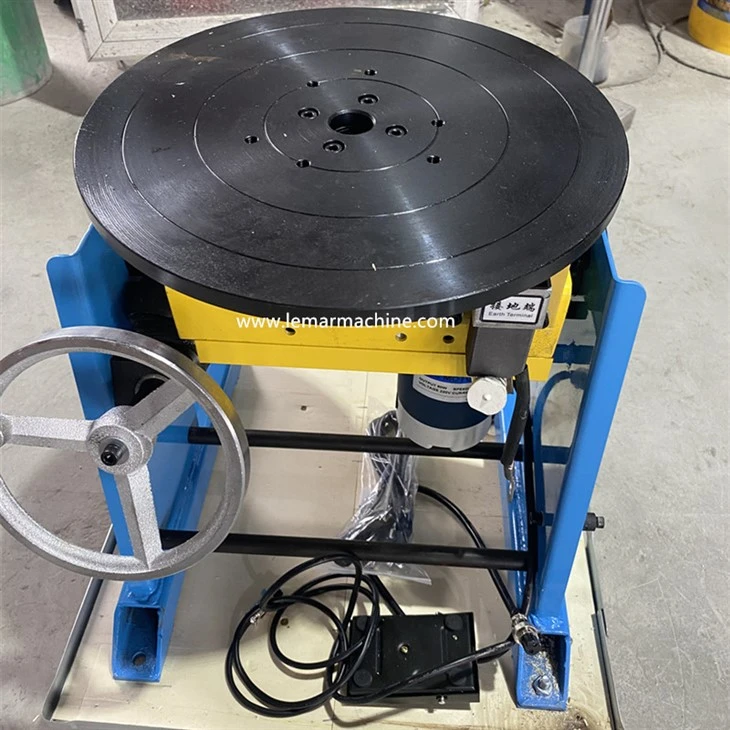

30kg~300kg CNC welding positioner/Normal rotating positioner
Quick clamp 3 Jaw chuck
Pneumatic welding torch holder
Pneumatic tail holder
Tilt wheel
Pneumatic lift up and down
Control box
Foot pedal
Product advantages
·The welding positioner has a 0-360 degree of freedom for overall turning.
·The pipe flange or other fittings can be turned to the ideal welding position for welding.
·The turntable has a degree of freedom of rotation.
·The side of the worktable is supported on the inclined shafts on both sides with the slewing mechanism.
·The worktable is rotated at the welding speed.
·The inclined side is inclined at a constant speed within the range of 140 ° through the sector gear or hydraulic cylinder.
| Load | Turing speed (rpm) | Worktable diameter (mm) | Motor power(kw) |
| 30kg | 1-10rpm | D300 | 80W |
| 50kg | 1-10rpm | D300 | 80W |
| 100kg | 0.5-6rpm | D400 | 120W |
| 300kg | 0.2-2.5rpm | D500 | 250W |
Welding turntable, positioner load-bearing capacity: 50/100/200/300/600/1200/3000/5000 kg, up to 15T positioner.Welcome you to contact us with your special request!
