Product Overview

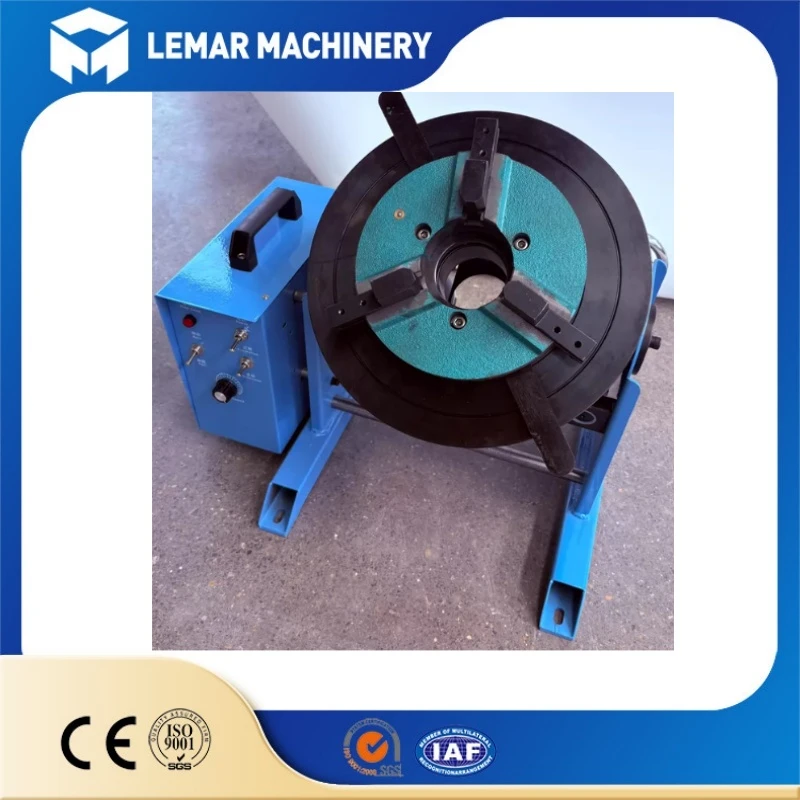

The 50kg welding positioner is a light-duty, cost-effective welding auxiliary equipment, specially designed for small rotary workpieces with a maximum load of 50kg.
It can rotate and tilt workpieces flexibly to adjust welding seams to the ideal flat welding position, effectively improving welding quality and working efficiency.
It is widely used for batch welding of small pipes, flanges, cylinders and similar components.
Technical Specifications
| Parameter | Standard Value |
|---|---|
| Rated Load Capacity | 50kg (horizontal) / 25kg (vertical) |
| Rotation Speed Range | 0.1–15 rpm (stepless adjustable) |
| Tilt Angle Range | 0°–90° |
| Working Table Diameter | 310–500 mm |
| Power Supply | 110V / 220V, 50/60 Hz |
| Drive Motor Power | 80–120 W |
| Overall Dimension (L×W×H) | Approx. 360×380×380 mm |
| Net Weight | Approx. 45–55 kg |
| Control Mode | Manual / Foot switch control (CNC optional) |
Product Types
Standard Model: Manual tilting and speed control, durable and budget-friendly for small-batch production.
CNC Model: Equipped with PLC control panel, supports parameter storage and automatic operation, ideal for mass production with high precision requirements.
Main Functions
-
Realize 360° continuous rotation and 0°–90° tilting of workpieces.
Stepless speed regulation for rotation, stable running for uniform weld formation.
-
Strong load stability and anti-slip performance, ensuring no shaking or offset during high-precision circular seam welding.
Wide compatibility, perfectly matching welding machines, torch holders and tail stocks to support semi-automatic integrated production.
-
Easy to operate, equipped with foot switch or manual control for hands-free work.
Optimize welding posture, reduce welding difficulty and labor intensity.
Products Description
Workpiece Adaptation
Suitable for small and medium rotary workpieces such as flanges, short pipes, valve parts, small cylinders and disc parts, covering workpiece diameter within 400mm and length within 1.2m.
Industry Application
Widely used in pipe fitting manufacturing, hardware processing, pressure vessel production, mechanical equipment, agricultural machinery and metal fabrication industries.
Welding Seam Adaptation
Applicable for circular seams, butt seams, fillet seams and head welding, effectively improving the molding quality of various circumferential welds.
Production Scene Adaptation
Ideal for small-batch and multi-variety welding production, as well as semi-automatic welding scenarios with auxiliary torch holders and tail stocks.
Product Advantages
High Efficiency: Automatic rotation and tilting replace manual handling, raising productivity by 30%–50%.
Reliable Welding Quality: Flat welding position minimizes defects and ensures consistent weld appearance.
Easy Operation: Simple control system, no professional skills required.
Space-saving & Economical: Compact structure, low cost and easy installation.

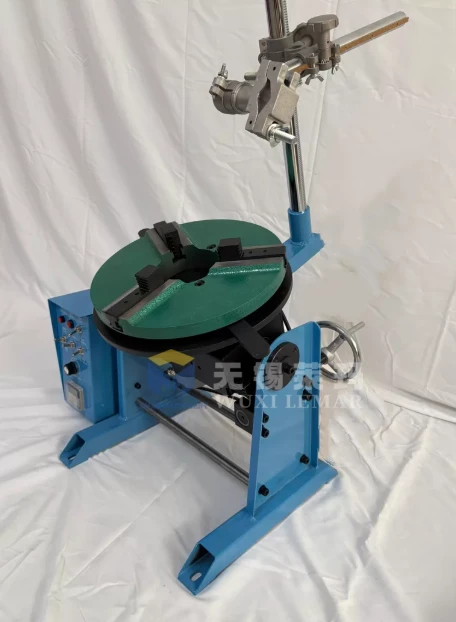

Strong Expandability: Optional welding torch holder, tail stock and linkage module for semi-automatic welding.
Product packaging
Company Certification
Customer feedback
FAQ
Q:What is the rated load of the positioner?
A:Horizontal load 50kg, vertical load 25kg, suitable for small rotary workpieces.
Q:Is the rotation speed adjustable?
A:Yes. It features 0.1–15rpm stepless speed adjustment for flexible welding operation.
Q:What workpieces can it process?
A:Ideal for flanges, short pipes, valves and small cylinders, for circular and fillet seam welding.
Q:Is it easy to operate?
A:Very simple. It supports foot switch and manual control, no professional skills required.
Q:Can it work with auxiliary equipment?
A:Yes. It can match torch holders and tail stocks to realize semi-automatic welding.
Q:Is customized version available?
A:CNC automatic version is optional for precise and batch production welding.
