Product working mode:
Welding Tank Turning Rolls is that an active frame, two motors, and a reducer are controlled by the same AC motor driver to realize the stepless speed change and synchronous operation of the two motors. The motor drives the main drive wheels to work through the drive system.

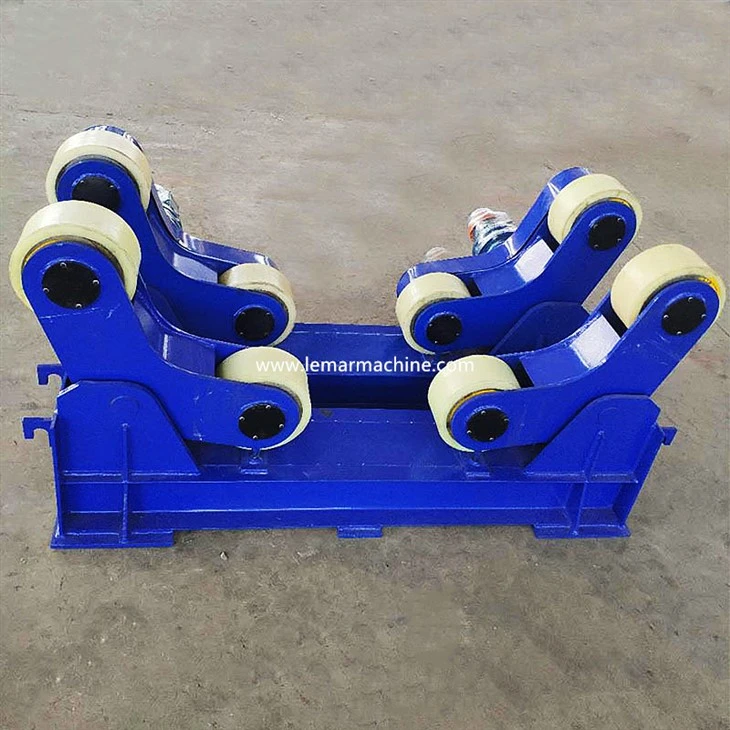

The pipe or vessel or tank is placed on the main and auxiliary wheels. When the main wheel of rotator is running, the friction between the workpiece and the main wheel of the welding rotor drives the workpiece to rotate. The friction between the rotating workpiece and the auxiliary wheel drives the auxiliary wheel to run. Each self-swinging arm-adjusting roller can drive the workpiece to adjust the diameter by itself, which greatly saves manpower and improves work efficiency.
Specifications:
| Model | Load(t) | Center distance(mm) | Roller diameter(mm) | Scroll wheel width(mm) | Welding diameter(mm) | Length×width×height(mm) | Oversize(mm) |
| Rubber wheel | Steel wheel | ||||||
| ZT1-5T | 5 | 960 | 250 | - | 120 | 350～2500 | 1320×790×680 |
| ZT1-10T | 10 | 960 | 250 | - | 120 | 350～2500 | 1320×790×680 |
| ZT1-20T | 20 | 1440 | 300 | 292 | 160 | 600～4000 | 1800×960×950 |
| ZT1-30T | 30 | 1600 | 350 | 342 | 160 | 600～4500 | 1980×1146×1122 |
| ZT1-40T | 40 | 1700 | 350 | 342 | 160 | 600～4500 | 2080×1250×1120 |
| ZT1-50T | 50 | 1800 | 400 | 390 | 210 | 750～5000 | 2180×1280×1130 |
| ZT1-60T | 60 | 1900 | 450 | 440 | 230 | 800～5000 | 2640×1570×1240 |
| ZT1-80T | 80 | 2000 | 500 | 490 | 250 | 900～5500 | 3020×1582×1400 |
| ZT1-100T | 100 | 2200 | - | 550 | 300 | 900～5500 | 3212×1690×1395 |
How to choose the material of the rotator wheel?
The rotator wheels are made of a variety of materials, mainly polyurethane rollers, steel-rubber combination rollers, etc. Users should purchase according to their needs.
| Material | Polyurethane rollers | Steel-rubber combination rollers |
| Features | Oil-resistant, wear-resistant, aging-resistant | Large pressure bearing capacity and long service life |
| Tensile strength and tear resistance are 3-5 times higher than ordinary rubber | The main drive worm adopts arc-toothed cylindrical worm, which has stronger load-bearing capacity and higher efficiency than ordinary cylindrical worm. | |
| The base of the Rotator is equipped with a scale value, and the spacing can be adjusted according to the diameter of the cylinder. |
