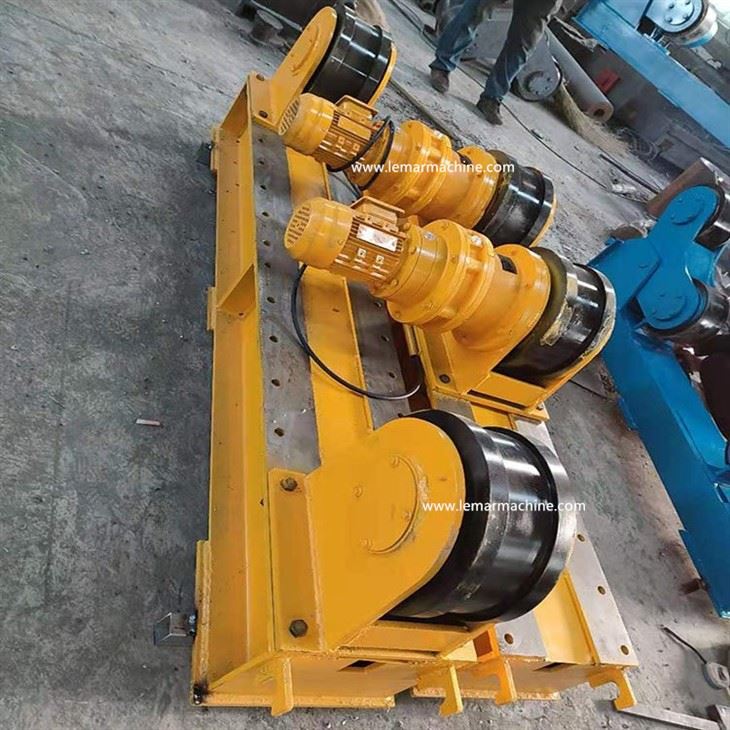

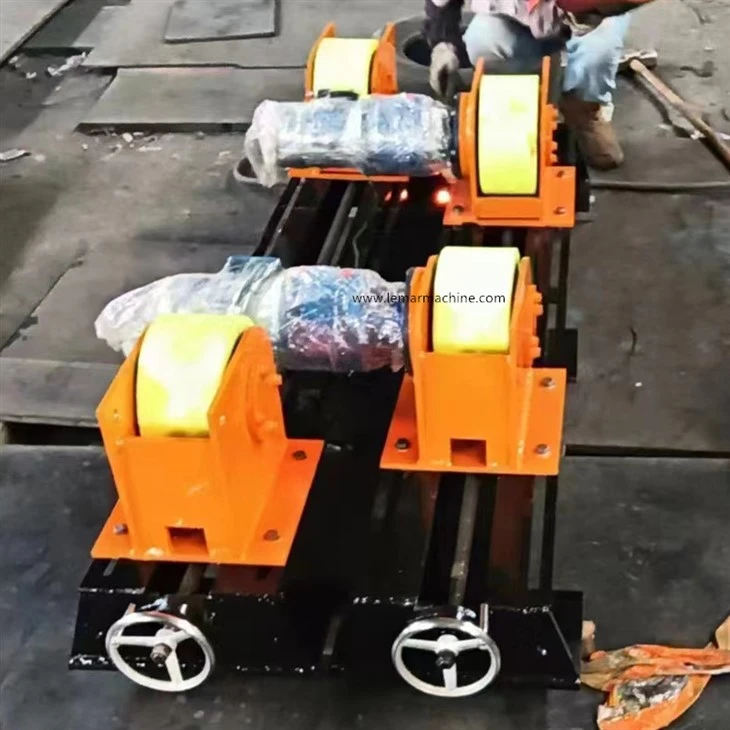

This kind of welded pipe roller is also called self-aligning roller. The whole set of rollers has 4, fixed and mobile two different structures are available. The roller can be adjusted by bolt adjustment, manual and electric screw adjustment screws.
Specifications:
| Model | Load(t) | Roller diameter(mm) | Welding diameter(mm) | Adjustable center distance | Speed mode | Line speed(mm/min) |
| T | Steel wheel | Rubber wheel | ||||
| KT2-5T | 5 | - | 300 | 250～1800 | 60～1000 | |
| KT2-10T | 10 | - | 300 | 300～3500 | 60～1000 | |
| KT2-20T | 20 | - | 300 | 350～3600 | 60～1000 | |
| KT2-40T | 40 | 440 | 350 | 600～4200 | 60～1000 | |
| KT2-60T | 60 | 342 | 450 | 750～4800 | 60～1000 | |
| KT2-80T | 80 | 490 | 500 | 850～5000 | 60～1000 | |
| KT2-100T | 100 | 550 | 500 | 1000～5500 | 60～1000 |
Note:
Pipe vessel roller rotator is a welding auxiliary equipment with low power consumption and high power. It can be combined in any combination according to the weight and length of the weldment. It is easy and flexible to use. It needs to be used correctly to achieve better turning effect.
1. The parameters of the adjustable rollers should be correctly set before starting.
2. Operate according to correct specifications, especially when the welding speed is relatively fast. Only correct operation will make the welding process more stable and reduce the welding failure rate.
