The following is an introduction to the structure and parameters of the 800T self-adjusting welding turning rolls.
Specification:
1. Equipment load: 800T.
2. Equipment drive capacity: 800T.
3. The specification of the rolling wheel of the equipment: diameter (Φ850mm) * width (400mm).
4. Equipment rotation speed: 50-500mm/min.
5. Drive motor: 2*15KW.
6. Rotating wheel speed regulation mode: AC frequency conversion stepless speed regulation.
7. Applicable workpiece range of the equipment: Φ5000-Φ9000mm.
8. The distance between the center of the device drive and the driven roller: 4000mm.
9. Equipment composition: driving roller seat + driven roller group.

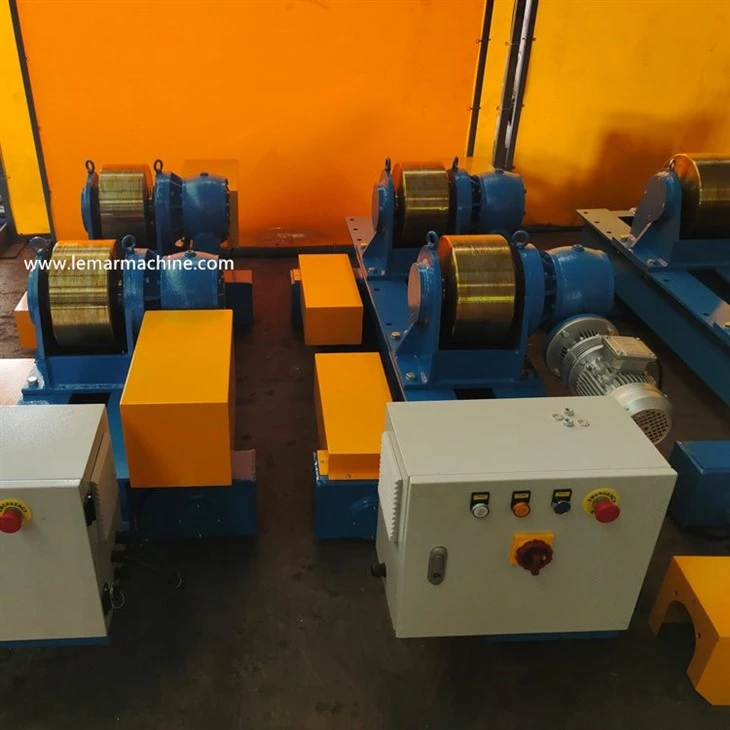

10. Electrical control: main control cabinet + remote control box (wireless).
Equipment composition and performance characteristics:

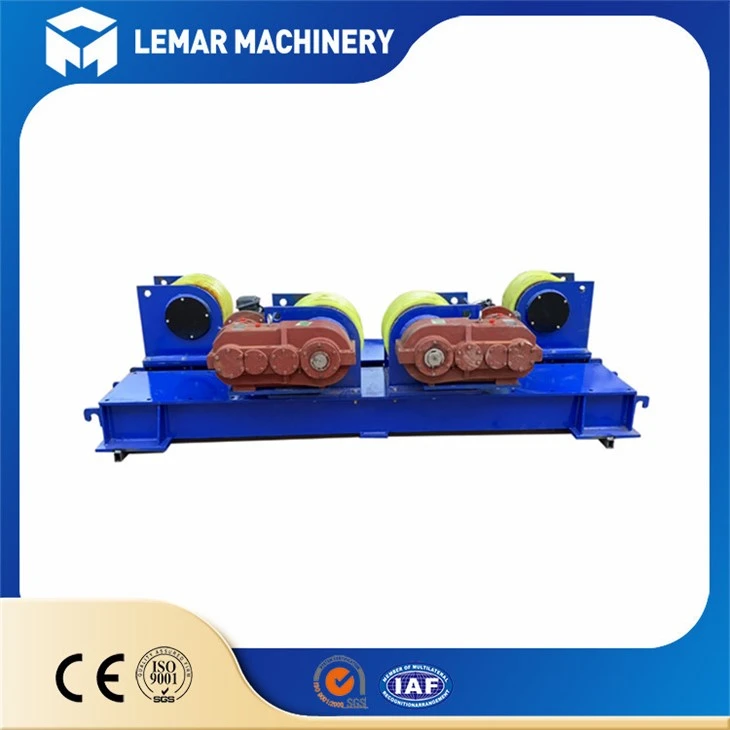

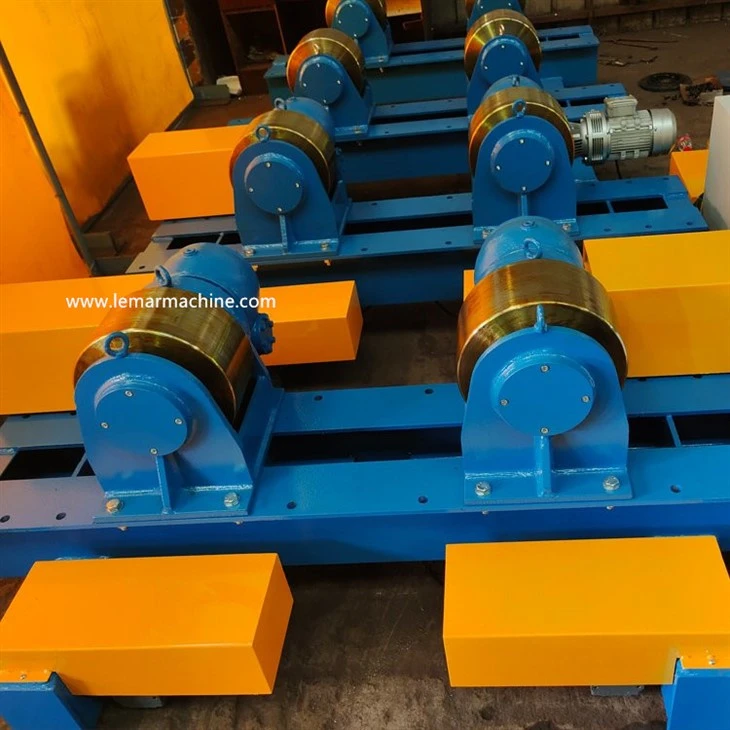

1. This 800T heavy duty turning rolls is composed of a drive roller seat, a driven roller, a drive reducer and an electrical control system.
2. The main parts of the equipment, fixed base, clamp-shaped frame and other welded parts are all welded back stress treatment.
This can ensure the long-term use after processing without deformation, the service life and rotation accuracy of the packaging equipment.
3. The boring of the fixed base and the clamp-shaped frame is completed in one go, which increases the processing accuracy and improves the service life.
4. Rotating rollers, shafts, gears, etc. are all forged parts, which are heat treated and tempered after forming to ensure machining accuracy.
5. The operation of the active roller rotator is realized by the double frequency conversion brake motor through the worm gear deceleration box to realize the synchronous transmission operation.
The frequency conversion speed controller is used to realize the stepless speed change, the mechanical transmission noise is low, the workpiece rotation is stable, and there is no vibration during use.
6. In order to be safe and efficient, the motor is configured as a brake motor, which can ensure that the workpiece will stop immediately when the power is cut off, and no slipping will occur.
7. The equipment structure is a clamp-shaped frame swing type with a certain center distance. This structure can satisfy the free placement of cylinders of different sizes and diameters.
8. The internal rotating bearings of the equipment all adopt Harbin shafts, which have long service life and durability.
9. This Vessel Welding Rotators has reasonable design, compact structure and good mechanical strength and toughness. It is the most ideal supporting equipment in the current machinery manufacturing industry.
