Product description

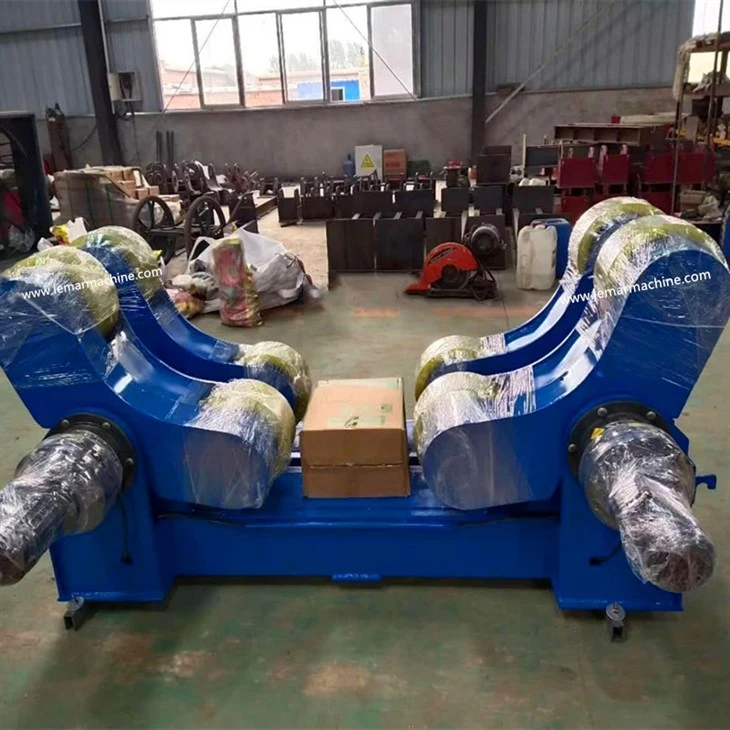

Vessel rollers Welding Turning Rolls are mainly used for cylindrical assembly and welding. If the height of the main and driven rollers is appropriately adjusted, the vertebral body and the segmental unequal-distance rotating body can also be assembled and welded. For some non-circular and long weldments, if they are installed in a special ring clamp, they can also be assembled and welded on the welding roller frame. The welding roller frame can also be used as a cylindrical workpiece for testing and assembly together with manual welding. The use of the welding roller frame can greatly improve the quality of the weld, reduce labor intensity, and improve work efficiency.
Specification:
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Rubber Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Rubber Roller | Steel Roller | ||||||
ZTG-5 | 5000 | Φ250-2300 | Φ250*100 | Φ240*20*2 | 6-60 | 0.75 | Variable Frequency Drive(VFD)
|
ZTG-10 | 10000 | Φ320-2800 | Φ300*120 | Φ290*25*2 | 1.1 | ||
ZTG-20 | 20000 | Φ500-3500 | Φ350*120 | Φ340*30*2 | 1.5 | ||
ZTG-30 | 30000 | Φ600-3800 | Φ350*120 | Φ340*30*2 | 2.2 | ||
ZTG-40 | 40000 | Φ600-4200 | Φ400*120 | Φ390*40*2 | 3 | ||
ZTG-50 | 50000 | Φ700-4500 | Φ400*120 | Φ390*40*2 | 4 | ||
ZTG-60 | 60000 | Φ750-4800 | Φ450*120 | Φ440*50*2 | 4 | ||
ZTG-80 | 80000 | Φ850-5000 | Φ500*120 | Φ490*60*2 | 5.5 | ||
ZTG-100 | 100000 | Φ1000-5500 | Φ500*120 | Φ490*70*2 | 7.5 | ||
ZTG-150 | 150000 | Φ1100-6000 | Φ500*120 | Φ600*Φ280 | 2*5.5 | ||
| ZTG-250 | 250000 | Φ1200-7000 | / | Φ700*380 | 2*5.5 | ||
| ZTG-500 | 500000 | Φ1800-8000 | / | Φ850*350 | 2*7.5 | ||
There are various types of Conventional automatic welding roller rotators, which can meet the requirements of different specifications of cylinder workpieces. Among them, self-adjusting welding rotators, adjustable welding rotators, and anti-channeling welding rotators are the most popular.
For any custom roller rack needs, please contact Wuxi Lemar Machinery Equipments Co.,Ltd
