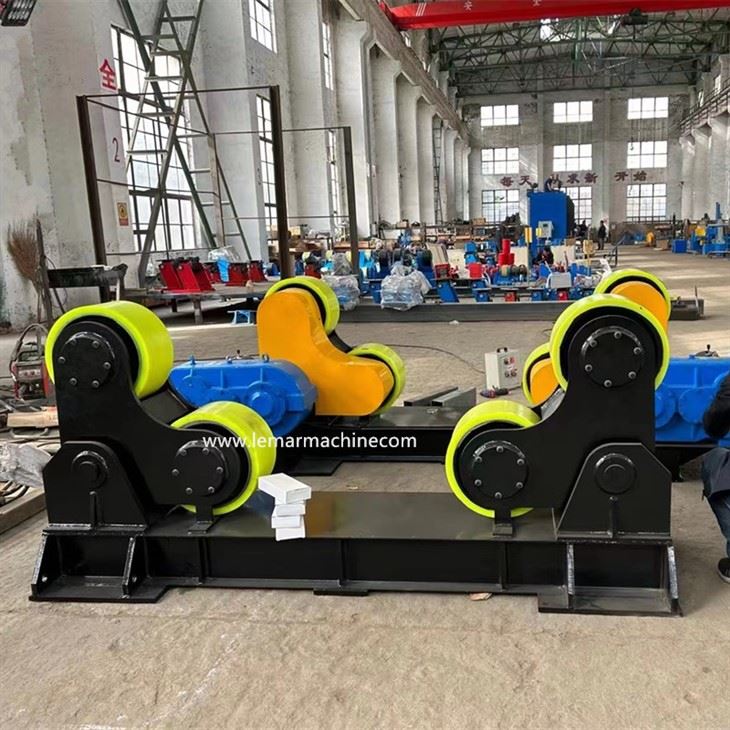

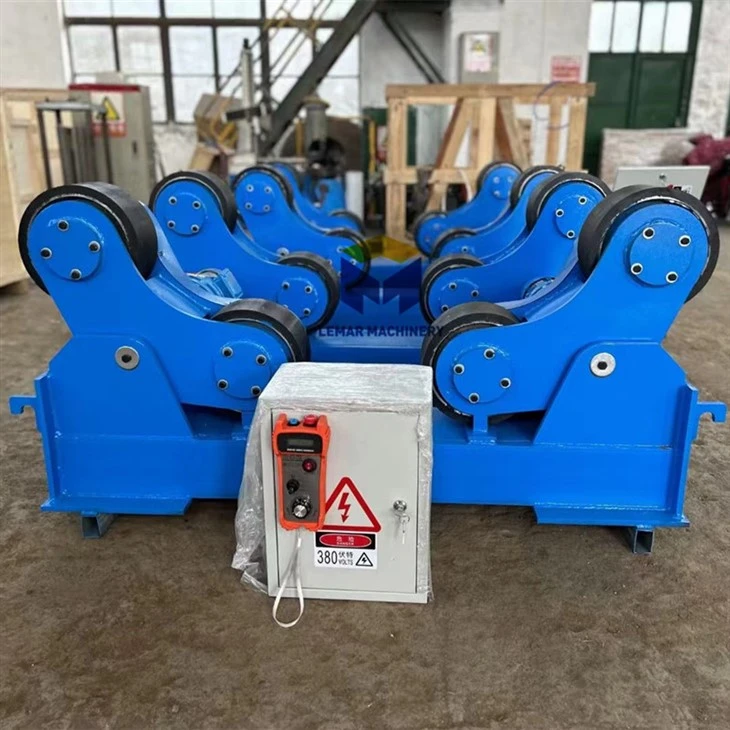

Self-Adjustable Pipe Tube Welding Turning Rolls
Lemar specializes in the production and processing of automatic welding and CNC cutting companies for more than 15+ years. Self-adjusting welding roller rotators, adjustable welding roller rotators, and anti-channeling welding roller rotators are our most mature machine types and are sold to 40+ countries around the world. We are a complete turnkey project company, primarily serving the power, wind, industrial and infrastructure industries.
Welding roller rotator is a commonly used welding auxiliary device and is widely used during welding production.
The friction between the welding parts(pipe tank or vessel) and the active welding turning rolls drives the cylindrical welding parts to rotate, and combinations with the welding operator, welding transformer machine can realize the automatic welding of the inner and outer ring seams, corner welds and vertical seams of the welded parts.
Products parameters
| Model | Load(t) |
Center distance(mm) |
Roller diameter(mm) |
Scroll wheel width(mm) |
Welding diameter(mm) |
Length×width× height(mm) |
Oversize(mm) |
| Rubber wheel | Steel wheel | ||||||
| ZT1-5T | 5 | 960 | 250 | - | 120 | 350～2500 | 1320×790×680 |
| ZT1-10T | 10 | 960 | 250 | - | 120 | 350～2500 | 1320×790×680 |
| ZT1-20T | 20 | 1440 | 300 | 292 | 160 | 600～4000 | 1800×960×950 |
| ZT1-30T | 30 | 1600 | 350 | 342 | 160 | 600～4500 | 1980×1146×1122 |
| ZT1-40T | 40 | 1700 | 350 | 342 | 160 | 600～4500 | 2080×1250×1120 |
| ZT1-50T | 50 | 1800 | 400 | 390 | 210 | 750～5000 | 2180×1280×1130 |
| ZT1-60T | 60 | 1900 | 450 | 440 | 230 | 800～5000 | 2640×1570×1240 |
| ZT1-80T | 80 | 2000 | 500 | 490 | 250 | 900～5500 | 3020×1582×1400 |
| ZT1-100T | 100 | 2200 | - | 550 | 300 | 900～5500 | 3212×1690×1395 |
Products Description
FAQ:
Q1: I knew nothing about this pipe tank welding rotators, how can i know this machine will meet my working needs?
Please tell us your workpiece size or show specific drawings, we will give you professional solutions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We provide overseas service and English manual, after installation, if any problems happen, we offer the remote video guidance and charging overseas service.
Q3: If some problems happen to this machine during warranty period, what should I do?
Contact us directly, we will supply free parts during machine warranty period. While we also supply free life long after-sales service.
