Heavy Duty Pipe Welding Rotator
Welding roller rotator as a main equipment auxiliary welding machine, widely used in petroleum chemical industry, pressure vessel, pipeline, metal structure, boilers and other industries, technology is the necessary equipment and welding seam tube inner wall surfacing ring.
This kind of self adjustable roller rotator can be choosed according to the different diameter of the workpiece, the workpiece's weight, the wheel center around the support center at different rotation angles, realize self adjustment, satisfy a certain range of workpiece size requirements, stable support, safe operation Turning.
Products parameters
| Model | Load | Center distance | Roller diameter | Scroll wheel width | Welding diameter | Length×width×height |
| Rubber wheel | Steel wheel | |||||
| ZTG-50 | 50T | 1800mm | 400mm | 390mm | 210mm | 750～5000mm |
| ZTG-60 | 60T | 1900mm | 450mm | 440mm | 230mm | 800～5000mm |
| ZTG-80T | 80T | 2000mm | 500mm | 490mm | 250mm | 900～6000mm |
| ZTG-100T | 100T | 2200mm | - | 550mm | 300mm | 900～7000mm |

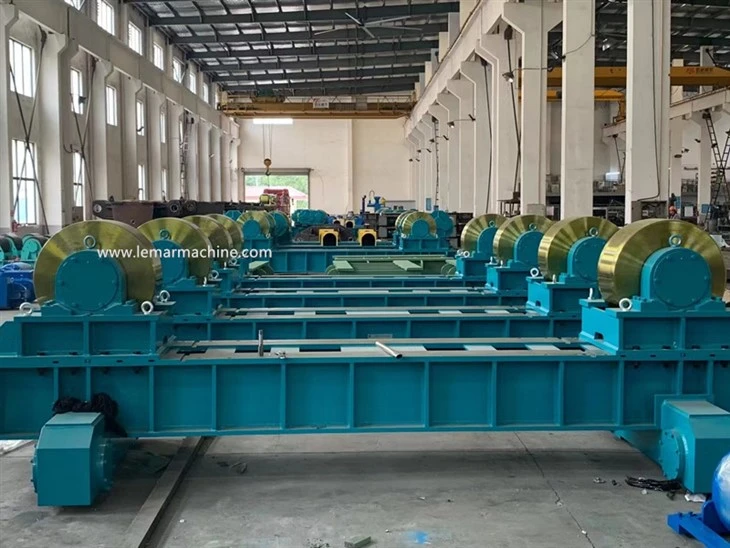

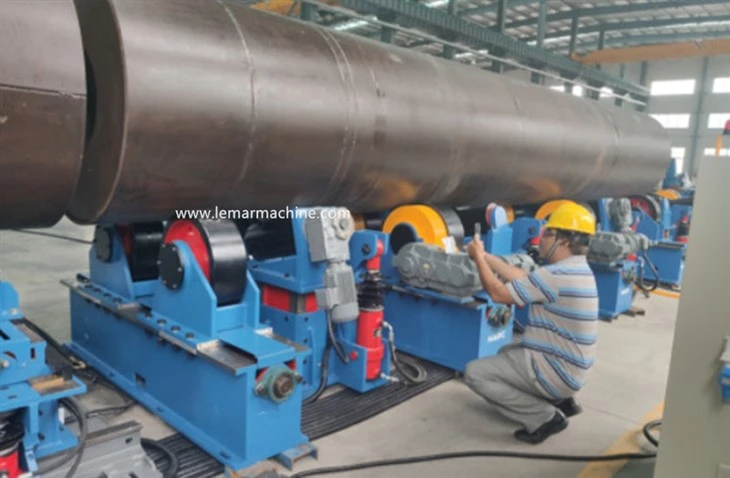

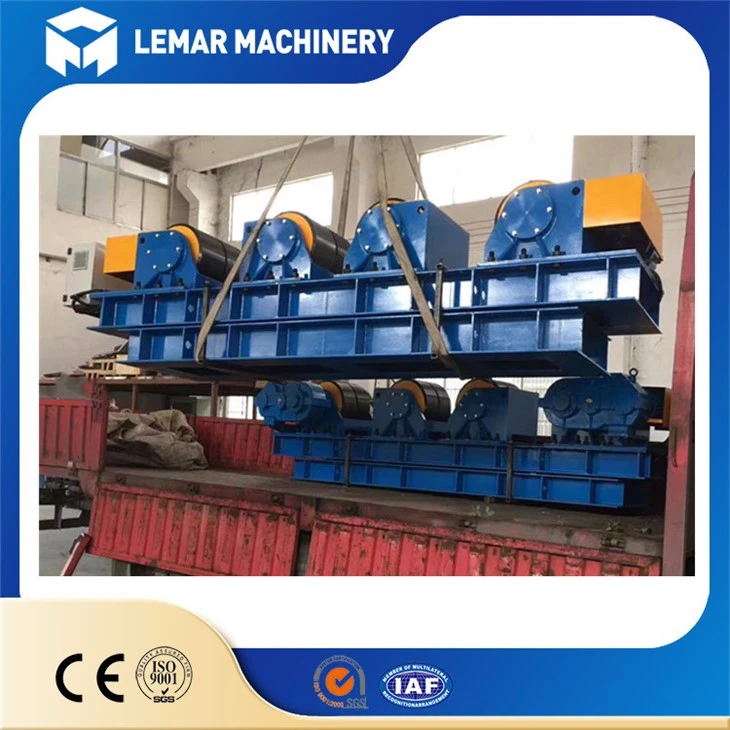

Products display
