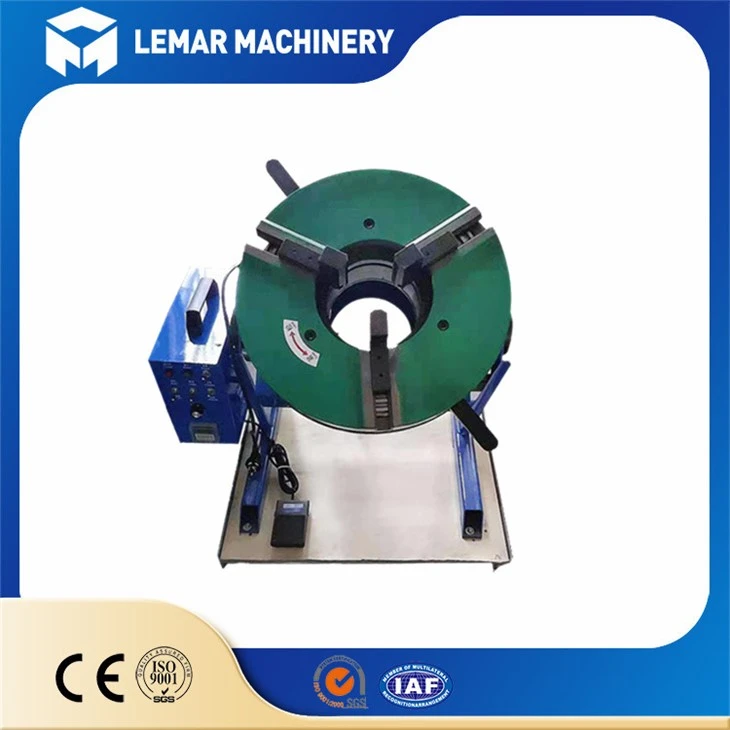

Tank Welding Positioner

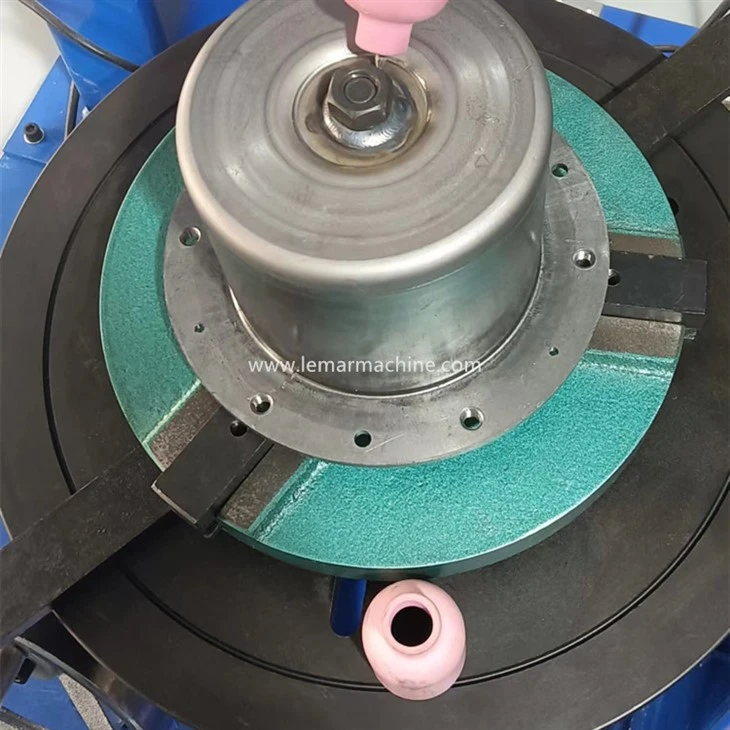

Tank Welding Positioner is mainly used for welding of annular weld. Main function of the machine is to tilt, turn the workpiece, so that the weld in the horizontal, ship-shape, such as the best position to apply welding. It can be fixed on the working table or specific tooling for clamping workpiece with manual welding, can also be used with welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing and other processes.
Products parameters
| Model | BWJ-50 |
| Loading weight | 5T |
| Positioner table diameter | 1600-2000mm |
| Rotate speed | 0.03-0.3rpm |
| Tilt angle | 0-90 degree |
| Tilt way | Electric tilt |
| Rotate motor | AC 2.2KW |
| Tilt motor | AC 3KW |
| Oversize | 2500*1900*1600mm |
Products Description
Why welding positioner is so important for welding robot?
Automatic welding robot has automatic memory and synchronization coordination functions. The position, posture, and welding parameters of each action during the welding process can be saved and automatically generate a program that continuously performs all operations. Through the interface, when the robot and welding displacement When the machine is connected and coordinated movement, you only need to give a start command to realize automatic work.
The use of the welding positioner improves the welding accuracy of the robot, it and welding robot can work independently or move synchronously to weld more complex workpieces.
