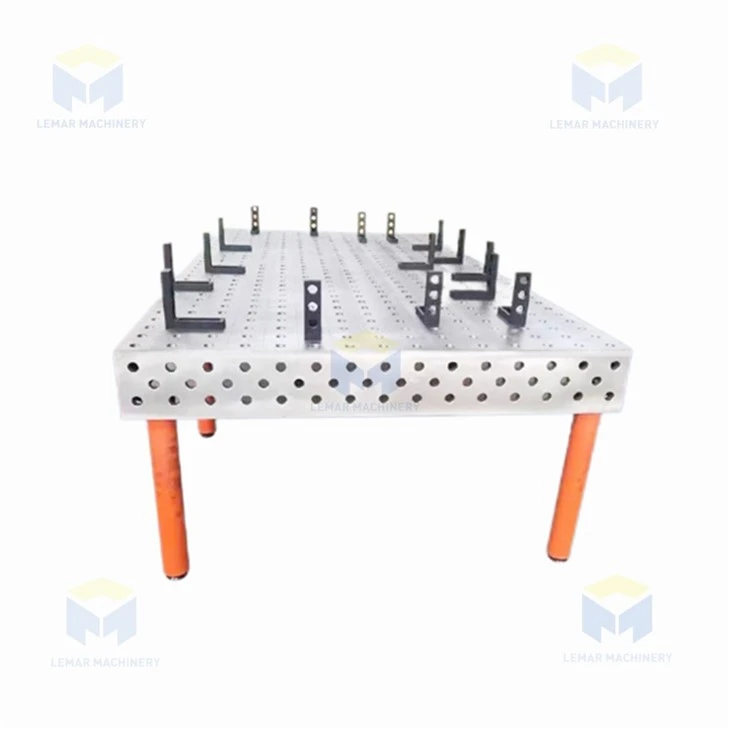

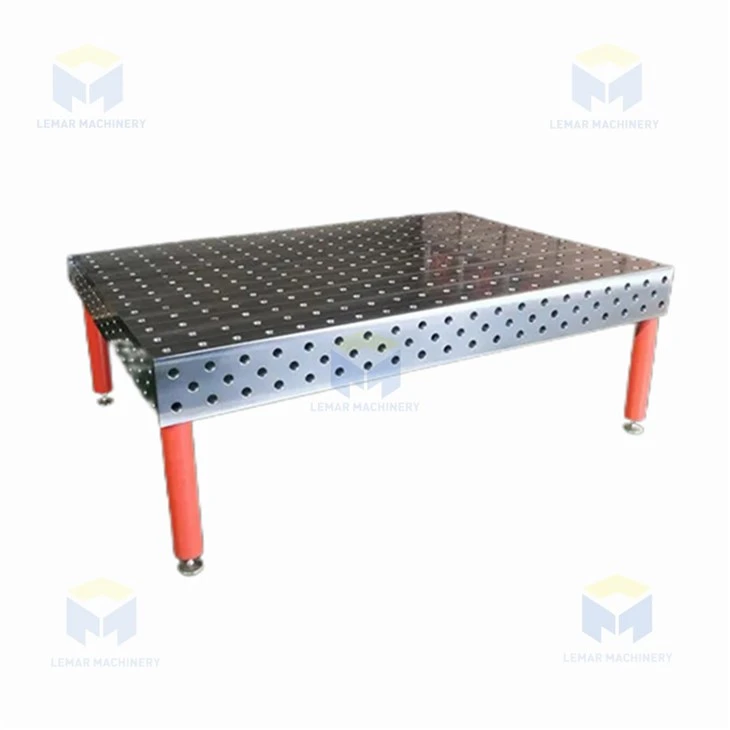

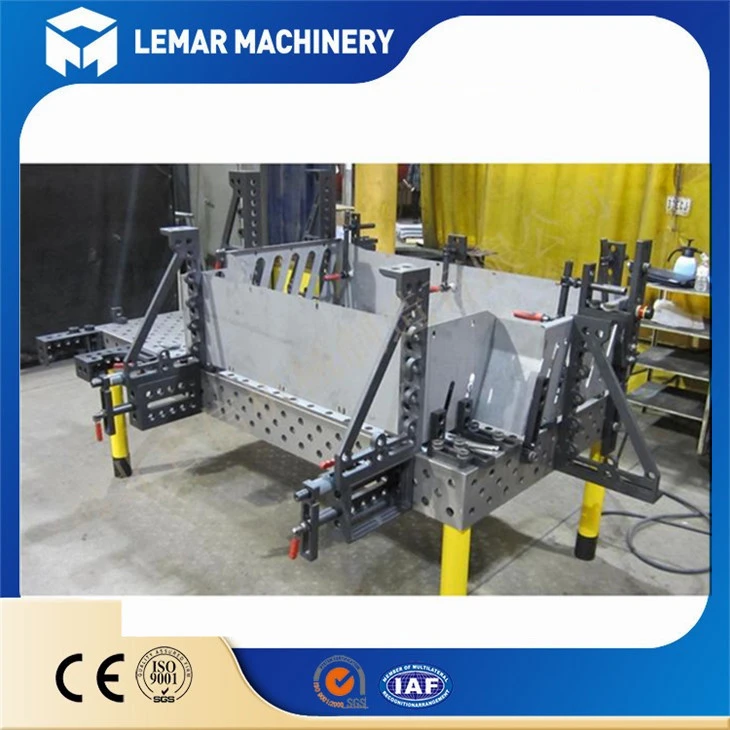

2000*1500mm 3D Welding Table

Introduction

Specification analysis: 2000mm (length) × 1500mm (width), approximately 6.5 feet × 5 feet. The table area is 3 square meters. Suitable for welding medium to large workpieces (such as steel structures, mechanical parts, ship sections, etc.).

Thickness selection: The thickness of the desktop is usually 15-30mm (20mm+ is recommended for industrial grade) to ensure resistance to deformation under high loads.

Scene matching: High-precision welding fields such as automobile manufacturing, engineering machinery, aerospace, etc., especially suitable for complex workpieces that require multi-angle positioning.

Static load-bearing capacity: For the basic model, it is ≥2000kg. For the industrial grade, it can reach 5000kg (requires custom reinforced frame).

Flatness tolerance: According to ISO 8512 standard, it is required to be ≤0.1mm/m². For high-end models, it can reach ≤0.05mm/m².

Repeat positioning accuracy: The repeat positioning error of the 3D fixture system is ≤0.2mm (verified by laser calibration).
