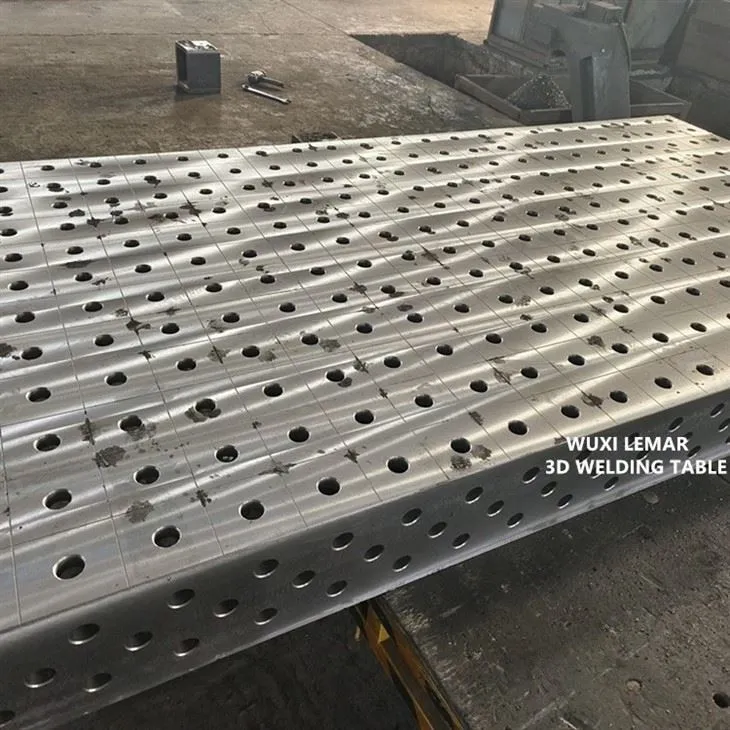

3D Precision Welding Tables
3D Precision Welding Tables (3D Precision Welding Tables) is an industrial-grade work platform designed for high-precision welding, assembly, and inspection. Its core features are all-round positioning capabilities in three-dimensional space and micron-level machining accuracy, suitable for manufacturing fields with strict tolerance requirements.
Core value
zero error orientation: reduce rework and improve the one-time molding rate of complex workpieces.
Flexible production: quickly switch tooling, adapt to multi-variety, small batch orders.
Long-term cost control: ultra-high durability (life can reach more than 10 years) Reduce the frequency of equipment replacement.
Products parameters
| Size | 2000*1500mm |
| Material | Steel or Cast Iron |
| Table top thickness | 100mm or 150mm |
| Finish | CNC Plasma cutting |
| Treatment | Nitrided or without |
You can choose different fixtures to splice different flexible platforms according to your needs.
Products Features
3D precision positioning system
high-density hole array design: The table surface adopts a precision-machined multi-dimensional hole array (such as 5mm/16mm aperture, spacing 25mm × 25mm or less).
Modular expansion: The work area can be expanded by splicing or stacking the table surface, and supports multi-station synchronous operation of complex and large workpieces.
Ultra-precision machining and materials
Materials: The countertop is usually made of aviation aluminum (lightweight, anti-corrosion) or high-strength alloy steel (ultra-high rigidity), and the surface is hardened (such as anodized or nitrided) to resist wear.
Accuracy grade: The flatness can reach within ** ± 0.05mm/m, and some high-end models are equipped with a temperature compensation system ** to reduce the impact of thermal deformation on accuracy.
Our factory & Equipment
Professional manufacturer of Flexible multi-hole positioning 3D fixture workbench.
Summary
3D precision welding tables are the "process cornerstone" of high-end manufacturing, especially suitable for scenarios that require high precision, efficiency and traceability (such as ISO-certified production lines), with high technical barriers and costs, but can significantly enhance product competitiveness and brand premiums.
