D16 Welding Tables
Overview

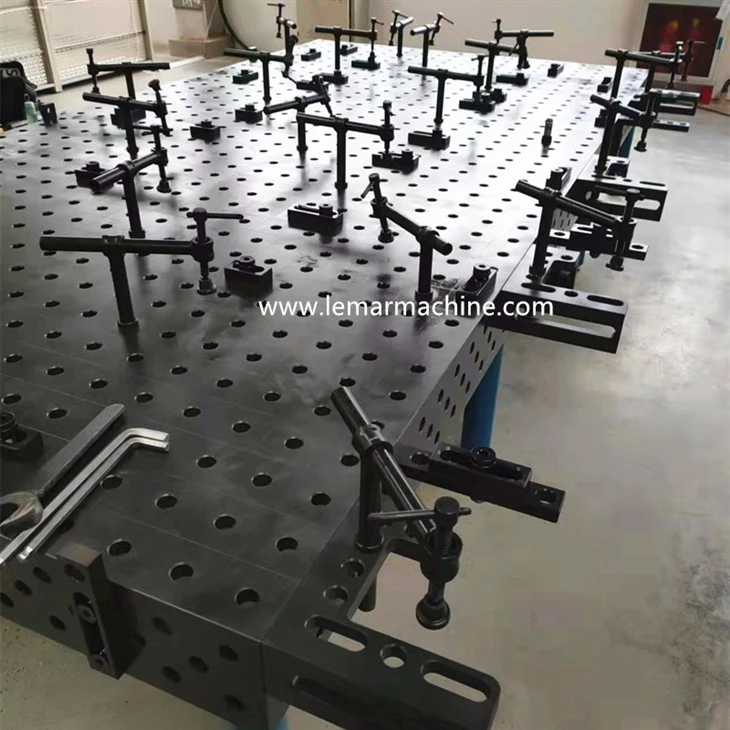

D16 welding tables is a common model of modular welding table, usually made of high-strength steel (such as Q235 or S355JR), designed for precision welding, assembly and inspection. The "D16" in its name may refer to hole spacing specifications (such as 16mm or 16mm series modular systems), or manufacturer-defined model classification. With high rigidity and flexible adaptability as the core advantages, this type of table is suitable for industrial manufacturing, automotive maintenance, prototype development and other fields.
Core design features
Modular orifice system
Hole pitch specifications: common 16mm × 16mm or 16mm × 50mm matrix holes, compatible with M8/M10 standard fixture components, support multi-angle positioning.
Material and surface treatment: The steel plate is sandblasted/galvanized to prevent rust and withstand high temperature (withstand welding splashes above 800 ° C).
Thickness: The thickness of the countertop is usually 12-30mm, ensuring rigidity and reducing thermal deformation.
High strength frame structure
Main frame is welded with square steel or I-beam, with a static load bearing capacity of 1-5 tons (depending on the size) and a dynamic load capacity of ≥ 500kg.
Optional casters (with locking function) are available for easy movement and fixation.
Extended Compatibility
Supports 3D fixture systems (e.g. quick clamps, angle adjustment blocks, V-shaped positioning pins) for complex workpieces.
It can be expanded into multi-layer workstations or combined into assembly line stations.
Products Parameters
| Item | Type data |
| Countertop size | 1200×800mm至2000×4000mm |
| Pitch accuracy | ±0.05mm(Laser cutting guarantee) |
| Flatness | ≤0.1mm/m² |
| Temperature resistance range | -20℃至+1200℃(Short contact) |
Products Application
Core application scenario
Precision welding
Used for high-precision positioning welding of automotive bodies, pipe flanges, steel structure trusses, etc., to reduce deformation.
Fixture integration
As a basic platform for flexible manufacturing systems (FMS), to quickly adapt to the fixture requirements of different products.
Detection and calibration
Combined with dial meter, laser calibrator, for dimensional detection and adjustment after welding.
Products Advantage
Advantage comparison (D16 Vs traditional welding table)
| Feature | D16 welding workbench | Traditional fixed welding table |
| Flexibility | Modular hole positions enable rapid reconstruction of tooling. | Rely on custom fixtures and the adjustment is time-consuming. |
| Accuracy | ±0.1mm level repetitive positioning accuracy | Usually relying on human experience results in relatively large errors. |
| Cost | High initial investment but long-term savings in model change costs. | Low unit cost but poor flexibility. |
Products installation
Use and maintenance recommendations
Installation: Ensure the level of the table (calibrated with a level) to avoid positioning errors due to tilt.
Cleaning: Clean up welding slag and debris daily, and regularly apply high-temperature anti-rust oil to protect the hole wall.
Safety: Avoid direct hammering of the table surface. Heavy workpieces need to distribute the load evenly.
D16 welding table is designed with modularity and high precision to significantly improve welding efficiency and quality, making it particularly suitable for flexible production of multiple varieties and small batches.
Hot Tags: d16 welding tables, China, manufacturers, factory, customized
