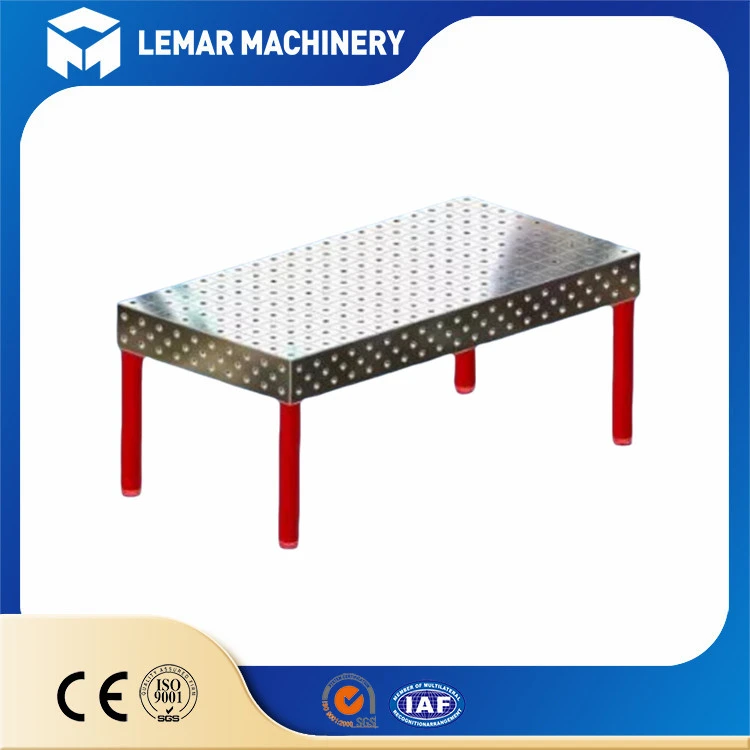

Welding Fabrication Table measures 78" x 78" and is made of HT300 cast iron. It also has a total of 5 working surfaces with 100*100mm grid lines distributed on them. Using industry standard D28 mm holes with a spacing of 100mm, made of HT300 cast iron, which has strong hardness and does not stick to welding slag.
welding table usage
★Construction machinery industry
★Rail transit industry
★Automotive industry
★Shipping industry
★Aerospace
★Chassis cabinet/sheet metal industry
★Equipment production industry
★Industrial pipelines
★Furniture manufacturing industry, etc.
Products Specification
| System | D28 Table |
| Flatness | 0.05mm/1m³ |
| Plate thickness | 25mm |
| Roughness | Ra1.6 |
| Hole spacing | 100±0.03mm |
| Weight | 1320kgs |
Products features
1. Economical
Complex and expensive traditional fixtures are a thing of the past. You can avoid the high cost of storing a large amount of special tooling, because the Welding Fabrication Table does not need to be changed and is suitable for various workplaces. It is easy to operate and safe to use.
2. Flexibility
The 3D modular welding table is very strong and can withstand very high load loads. Its five sides are processed with regular holes and engraved with mesh lines. (The hole has no slope and T-slot). On the 3D welding workbench, any workpiece can be positioned and clamped in a variety of ways using positioning clamping pins. Several Welding Fabrication Tables can be directly connected together on any of the five sides. This modular system perfectly embodies its universal functionality for mounting, adjusting and clamping workpieces.
3. Accuracy
During the assembly or welding process, positioning blocks, connecting blocks, clamps, and support blocks can be used to accurately position the workpiece, and the workpiece is firmly fixed at each positioning point or positioning surface. The probability of a workpiece that cannot be positioned is very small. If the geometric dimensions of the workpiece itself are inaccurate, they can be quickly detected and eliminated in the initial machining process.
4. Repeatability
Using CAD, you can easily simulate assembly of existing parts on the Welding Fabrication Table.
